Delta ASDA-M Series User Manual

ASDA-M Chapter 6 Control Mode of Operation
Revision December, 2014 6-59

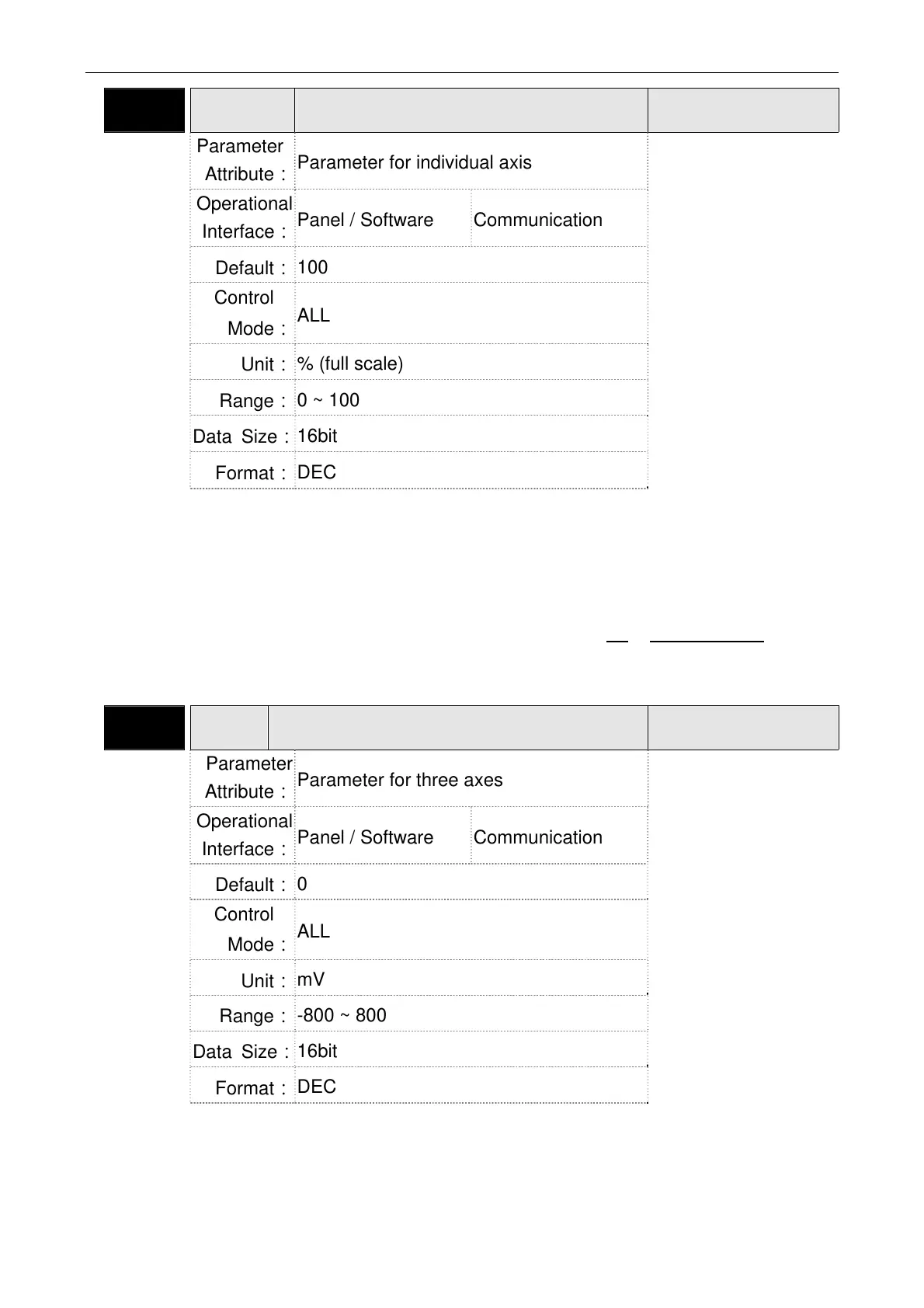

P1-05 MON2
MON2 Analog Monitor Output
Proportion
Address: 0108H
0109H
Parameter
Attribute
：
Parameter for individual axis
Related Section:
Section 6.6.3
Operational
Interface
：
Panel / Software Communication
Default：
100
Control
Mode
：
ALL
Unit：
% (full scale)
Range：
0 ~ 100
Data Size：
16bit
Format：
DEC
Settings：
Please refer to parameter P0-03 for the setting of analog output
selection.
For example:
P0-03 = 0x 1101(Ch2 is the speed analog output of the first axis)
When the output voltage value of CH2 is V2, the motor speed will
be:
Motor speed  Max. speed 
V2
8

XaxisP1  05
100
P4-20 DOF1
Offset Adjustment Value of Analog
Monitor Output (Ch1)
Address: 0428H
0429H
Parameter
Attribute
：
Parameter for three axes
Related Section:
Section 6.6.3
Operational
Interface
：
Panel / Software Communication
Default：
0
Control
Mode
：
ALL
Unit：
mV
Range：
-800 ~ 800
Data Size：
16bit
Format：
DEC
Settings：
Offset adjustment value (cannot reset)
