Delta ASDA-M Series

Chapter 8 Parameters ASDA-M
8-116 Revision December, 2014
Settings：
Special-bit Register:
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
Bit15 Bit14 Bit13 Bit12 Bit11 Bit10 Bit9 Bit8
 Bit0 ~ Bit5: reserved, please set to 0
 Bit6: In PT mode, the switch of pulse error protection function
(pulse frequency is over high)
Bit6 = 0: Normally use the function of pulse error protection
Bit6 = 1: Disable the function of pulse error protection
Bit7 ~ Bit15: reserved, please set to 0

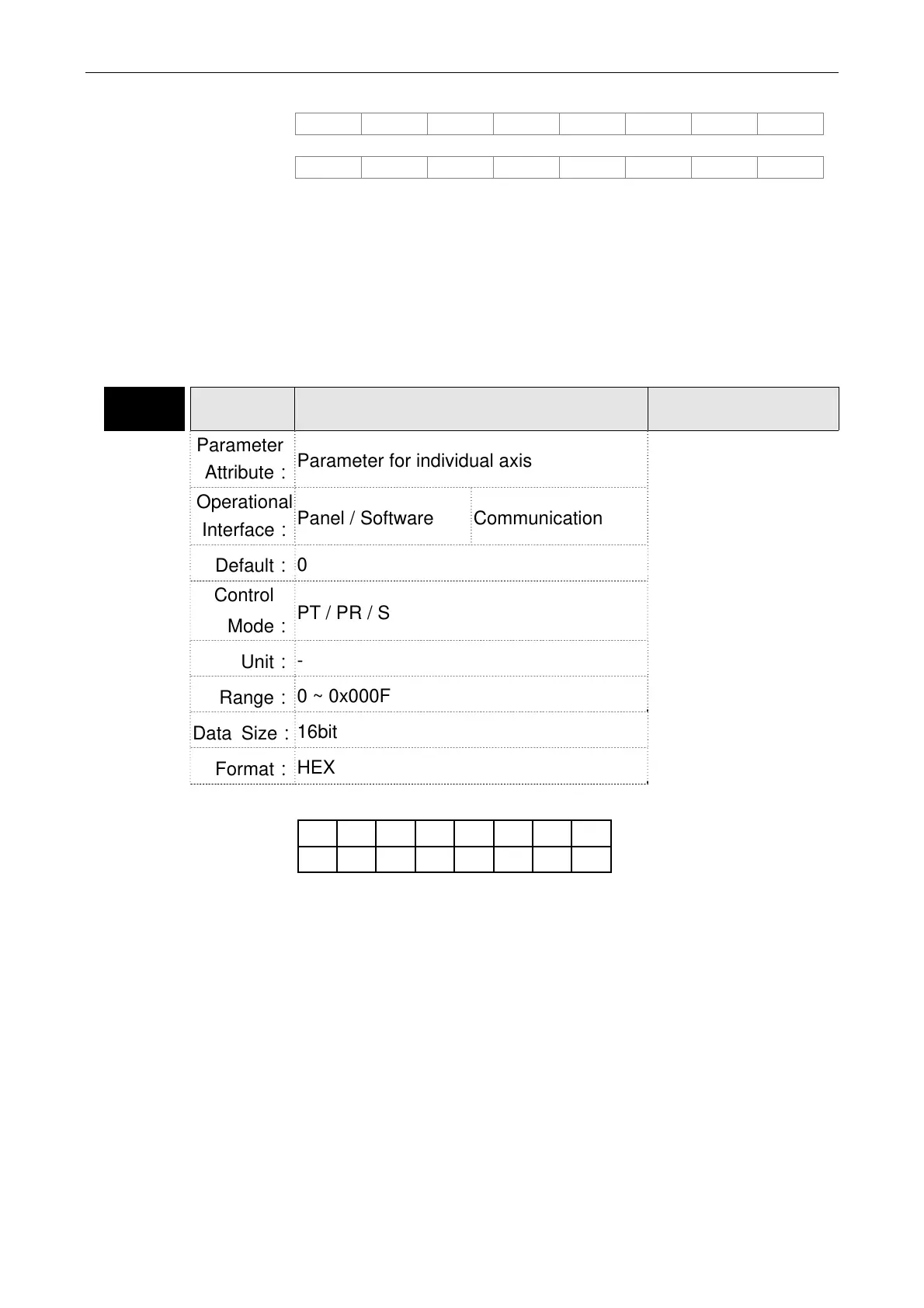

P2-66 GBIT2 Special-bit Register 2
Address: 0284H
0285H
Parameter
Attribute：
Parameter for individual axis
Related Section: -
Operational
Interface：
Panel / Software Communication
Default：
0
Control
Mode：
PT / PR / S
Unit：
-
Range：
0 ~ 0x000F
Data Size：
16bit
Format：
HEX
Settings： Special-bit Register 2：
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
- - - - - - - -
 Bit0 ~ Bit1: reserved, please set to 0
 Bit2: Cancel the latch of low-voltage error
Bit2 = 0: The latch of low-voltage error: Low-voltage error will
not be cleared automatically.
Bit2 = 1: Cancel the latch of low-voltage error: Low-voltage
error will not be cleared automatically.
Bit3 ~ Bit7: reserved, please set to 0
