ASDA-M Chapter 8 Parameters
Revision December, 2014 8-189
If the symbol of this parameter is + , it means the received forward
pulse is regarded as the lead pulse
If the symbol of this parameter is - , it means the received reverse
pulse is regarded as the lead pulse

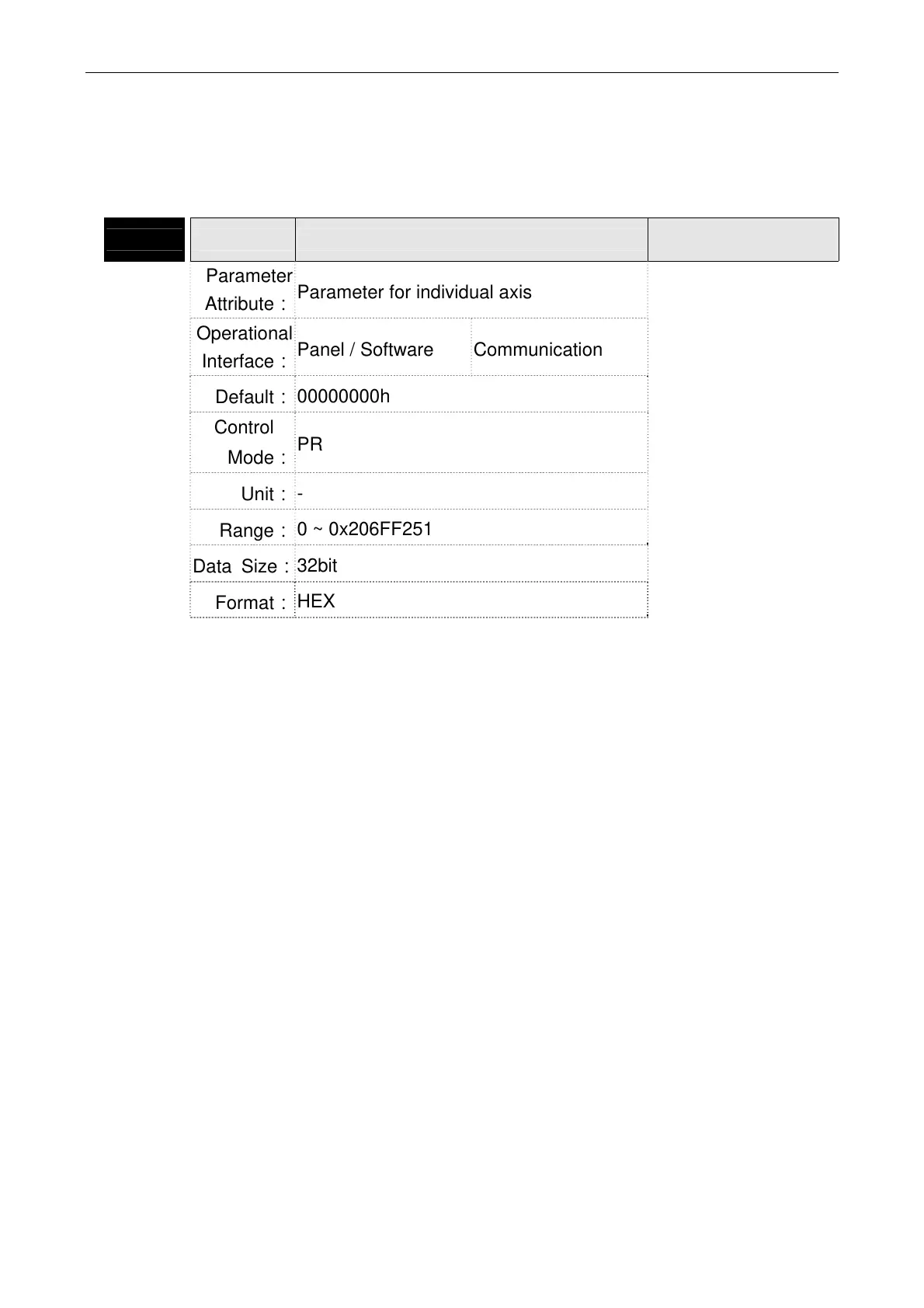

P5-88
ECON E-CAM: Activate E-Cam Control
Address: 05B0H
05B1H
Parameter
Attribute
Parameter for individual axis
Related Section:
Section 7.11
Operational
Interface
Panel / Software Communication
Default
00000000h
Control
Mode
PR
Unit
-
Range
0 ~ 0x206FF251
Data Size
32bit
Format
HEX
Settings The format of this parameter: (High word h) S0BA(Low word L)
UZYX
Definition of each column is as follows:
X: E-Cam command
0: Disable
1: Activate (When E-Cam mode is activated, the content of
the other column cannot be changed.)
Y: Command source
0: CAP axis
1: AUX ENC
2: Pulse Cmd
3: PR command
4: Time Axis (1ms)
5: Synchronous Capture Axis (P5-77)
Z: Engaging Time (No multiple choice)
0: Immediately
1: DI.CAM ON
2: Any one of the Capture
