ASDA-M Chapter 9 Communication
Revision December, 2014 9-5

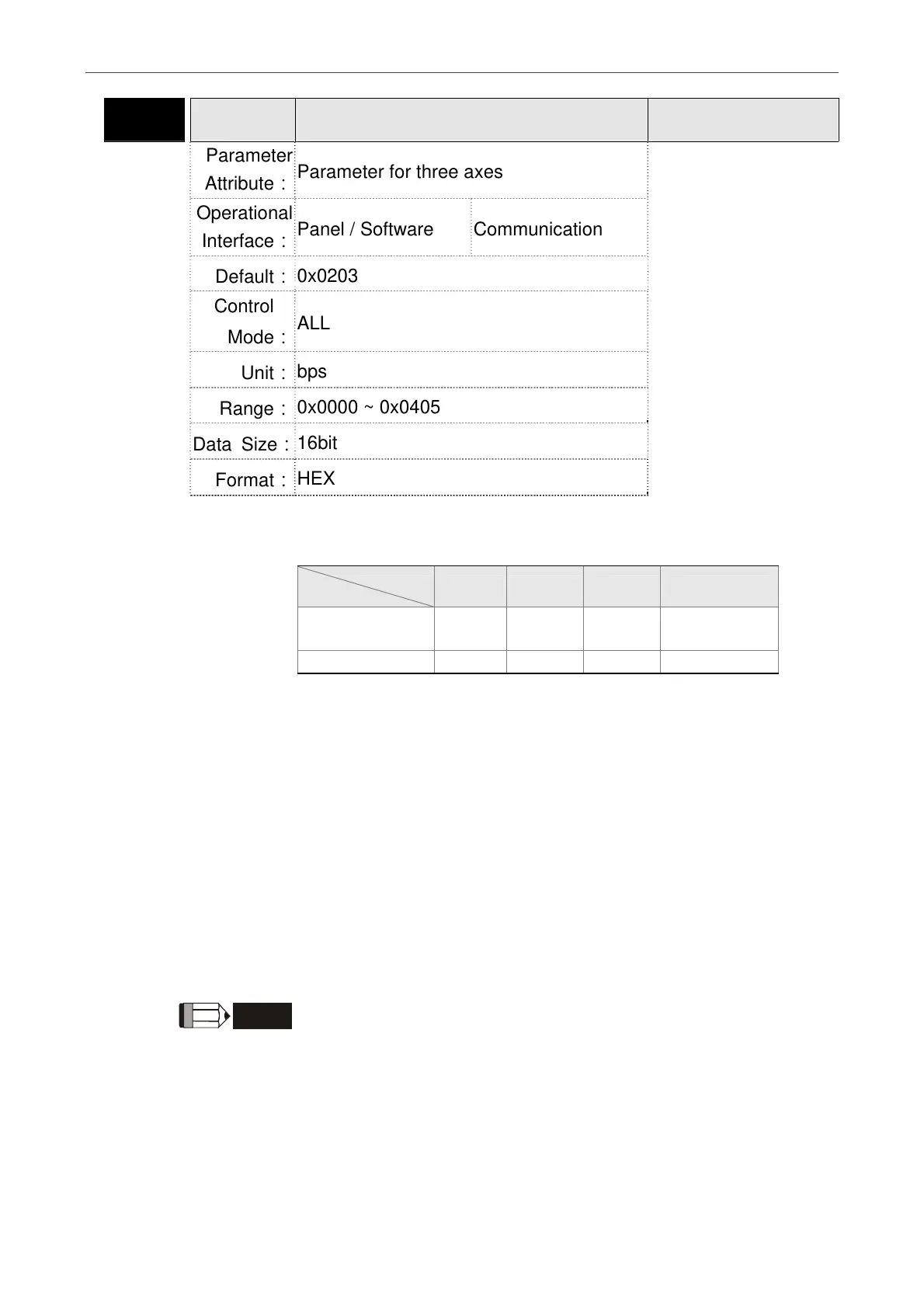

P3-01 BRT Transmission Speed
Address: 0302H
0303H
Parameter
Attribute：
Parameter for three axes
Related Section:
Section 9.2
Operational
Interface：
Panel / Software Communication
Default：
0x0203
Control
Mode：
ALL
Unit：
bps
Range：
0x0000 ~ 0x0405
Data Size：
16bit
Format：
HEX
Settings：
The setting of transmission speed is divided into Z, Y, X
(hexadecimal):
0 Z Y X
Communication
port
－
CAN
－
RS-232/485
Range 0 0~4 0 0~5
Definition of X setting value
0: 4800
1: 9600
2: 19200
3: 38400
4: 57600
5: 115200
Definition of Z setting value
0: 125 Kbit/s
1: 250 Kbit/s
2: 500 Kbit/s
3: 750 Kbit/s
4: 1.0 Mbit/s
NOTE
1) If this parameter is set via CAN, only digit Z can be set and the
others remain.
2) The communication speed of USB is 1.0 Mbit/s only and is
unchangeable.
