Delta ASDA-M Series User Manual

Chapter 11 Specifications ASDA-M
11-18 Revision December, 2014

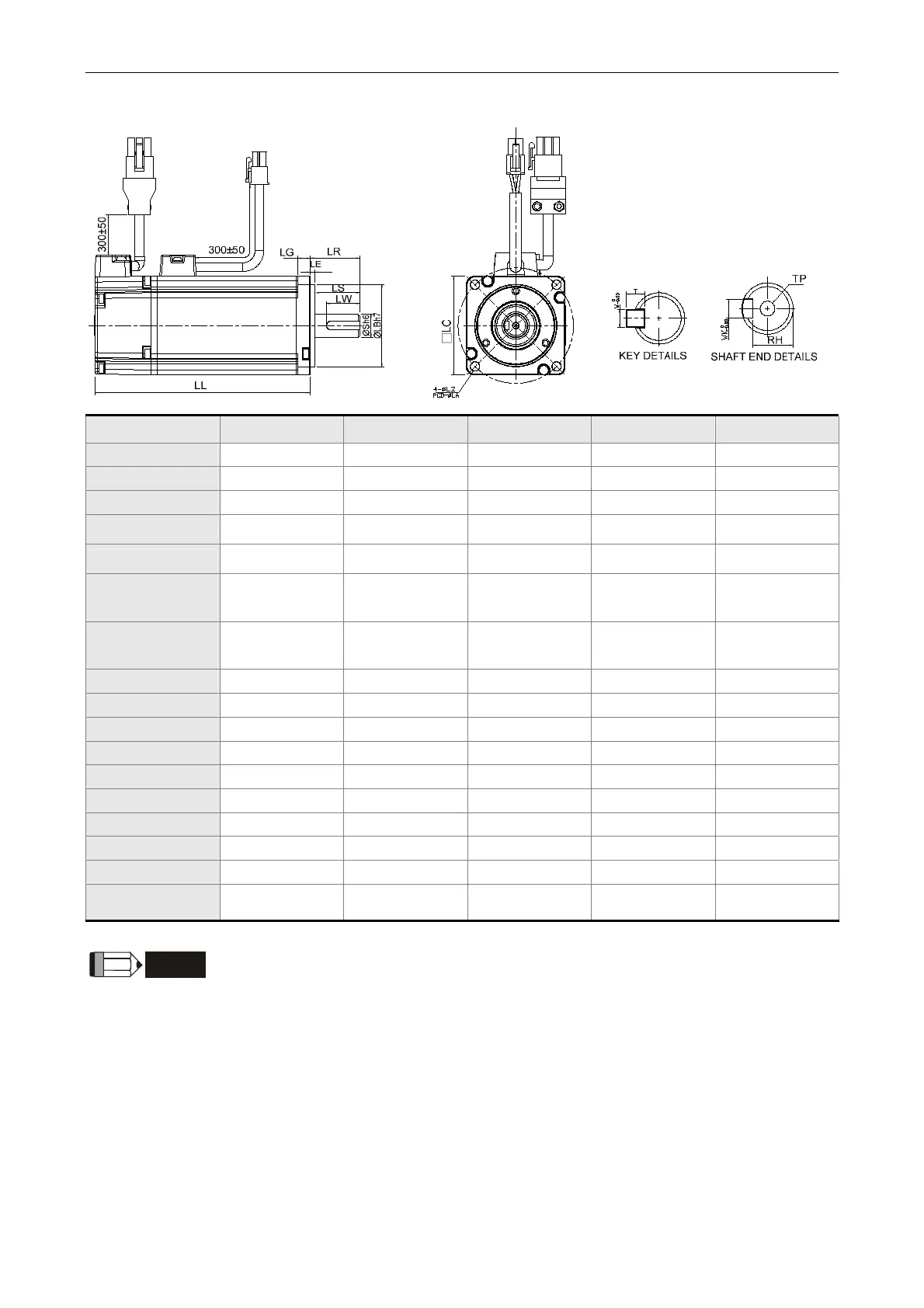

Motor Frame Size: 86 or below (Units: mm)
NOTE
1) Dimensions are in millimeters.
2) Dimensions and weights might be revised without prior notice.
3) Box, (□) represents the shaft end/ brake or the number of oil seal.
4) Triangle, (ᇞ) represents the type of encoder. Please refer to
Chapter 1 for detail
Model
C△0804□ 7 C△0807□ S C△0807□ H C△0907□ S C△0910□ S
LC 80 80 80 86 86
LZ 6.6 6.6 6.6 6.6 6.6
LA 90 90 90 100 100
S
)
(14
0
011.0


)
(19
0
013.0


)
(19
0
013.0


)
(16
0
011.0


)
(16
0
011.0


LB
)
(70
0
030.0


)
(70
0
030.0


)
(70
0
030.0


)
(80
0
030.0


)
(80
0
030.0


LL
(without brake)
112.3 138.3 151.1 130.2 153.2
LL
(with brake)
152.8 178 189 161.3 184.3
LS 27 32 32 30 30
LR 30 35 35 35 35
LE 3 3 3 3 3
LG 8 8 8 8 8
LW 20 25 25 20 20
RH 11 15.5 15.5 13 13
WK 5 6 6 5 5
W 5 6 6 5 5
T 5 6 6 5 5
TP
M4
Depth 15
M6
Depth 20
M6
Depth 20
M5
Depth 15
M5
Depth 15
