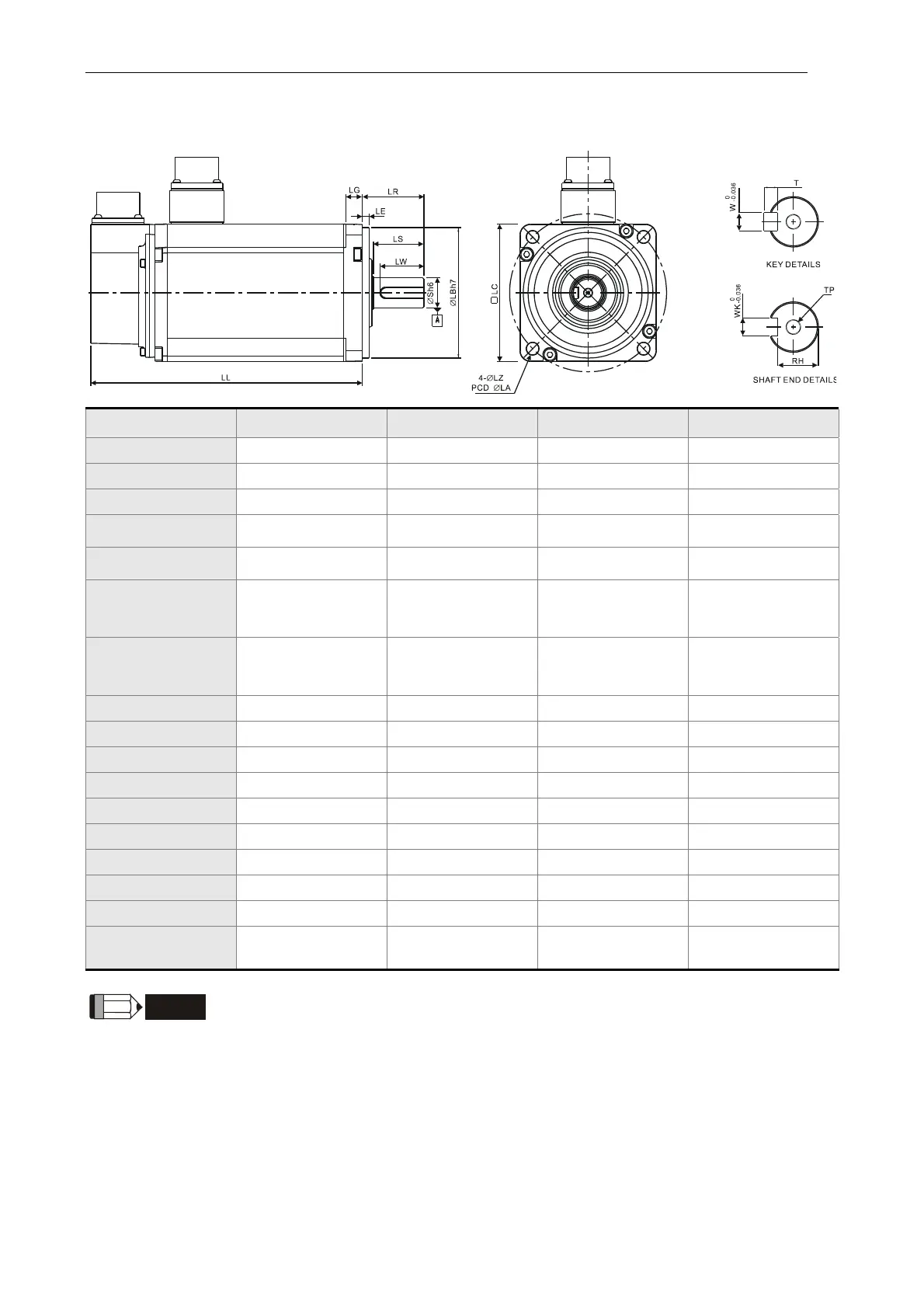

Motor Frame Size: 100 ~ 130 (Units: mm)
Model
C△1010□ S E△1305□ S E△1310□ S E△1315□ S
LC 100 130 130 130
LZ 9 9 9 9
LA 115 145 145 145
S
)
(
.
22
0
0130


)
(
.
22
0
0130


)
(
.
22
0
0130


)
(
.
22
0
0130


LB
)
(
.
95
0
0350


)
(
.
110
0
0350


)
(
.
110
0
0350


)
(
.
110
0
0350


LL
（without brake）
153.3 147.5 147.5 167.5
LL
（with brake）
192.5 183.5 183.5 202
LS 37 47 47 47
LR 45 55 55 55
LE 5 6 6 6
LG 12 11.5 11.5 11.5
LW 32 36 36 36
RH 18 18 18 18
WK 8 8 8 8
W 8 8 8 8
T 7 7 7 7
TP
M6
Depth 20
M6
Depth 20
M6
Depth 20
M6
Depth 20
NOTE
1) Dimensions are in millimeters.
2) Dimensions and weights might be revised without prior notice.
3) Box, (□) represents the shaft end/ brake or the number of oil seal.
4) Triangle, (ᇞ) represents the type of encoder. Please refer to Chapter 1 for
detail
