Delta ASDA-M Series User Manual

ASDA-M Chapter 3 Wiring
Revision December, 2014 3-33
 Caution: Do not apply to dual power or it may damage the servo drive.

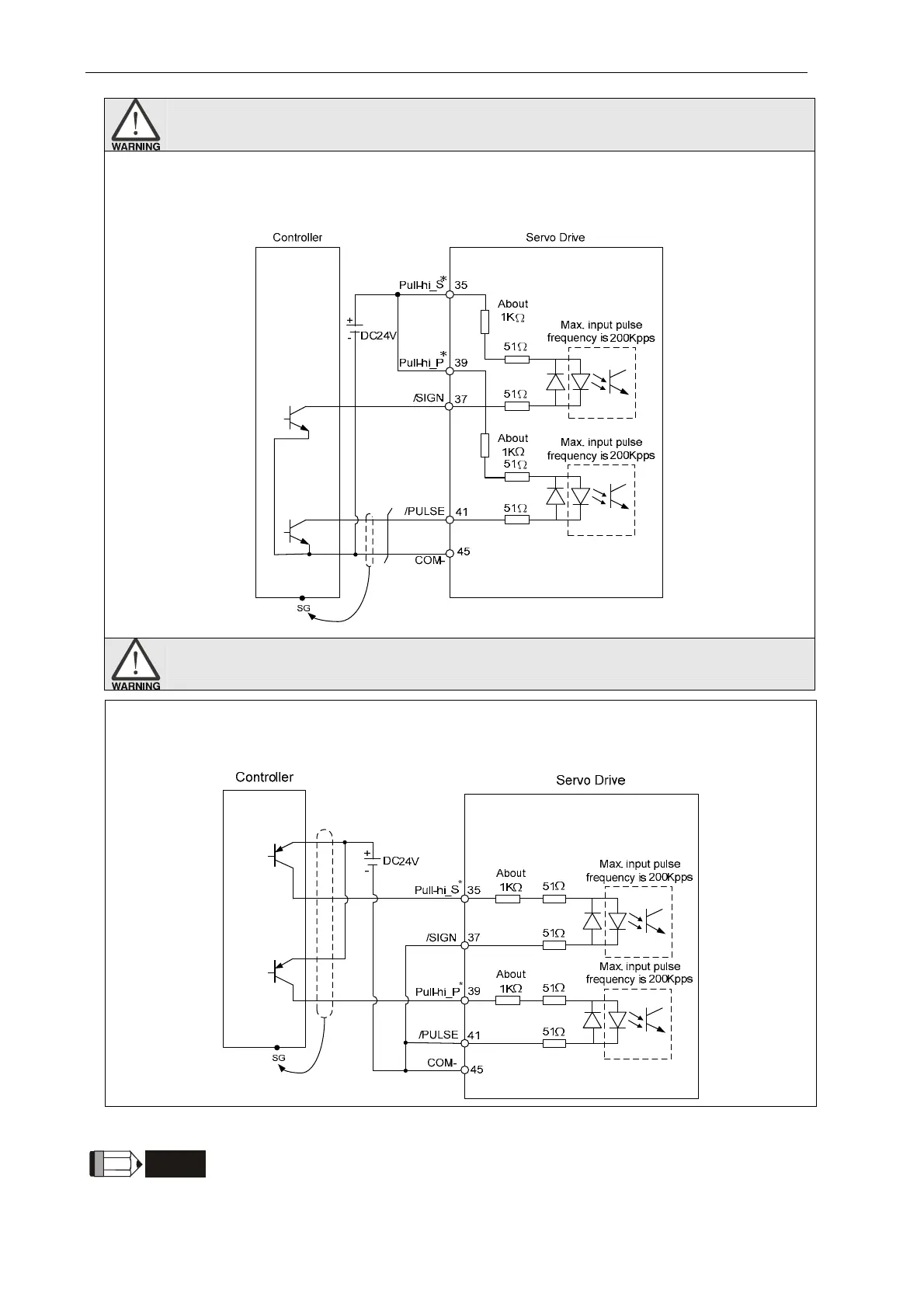

C3-2: The source of pulse input is open-collector NPN equipment and applies the
external power.
 Caution: Do not apply to dual power or it may damage the servo drive.
C3-2: The source of pulse input is open-collector PNP equipment and applies the
external power.
NOTE
The wiring method of Pull-hi_S and Pull-hi_P is different from ASDA-A2 series. The aim is
for connecting to PNP.
