ASDA-M Chapter 3 Wiring
Revision December, 2014 3-43

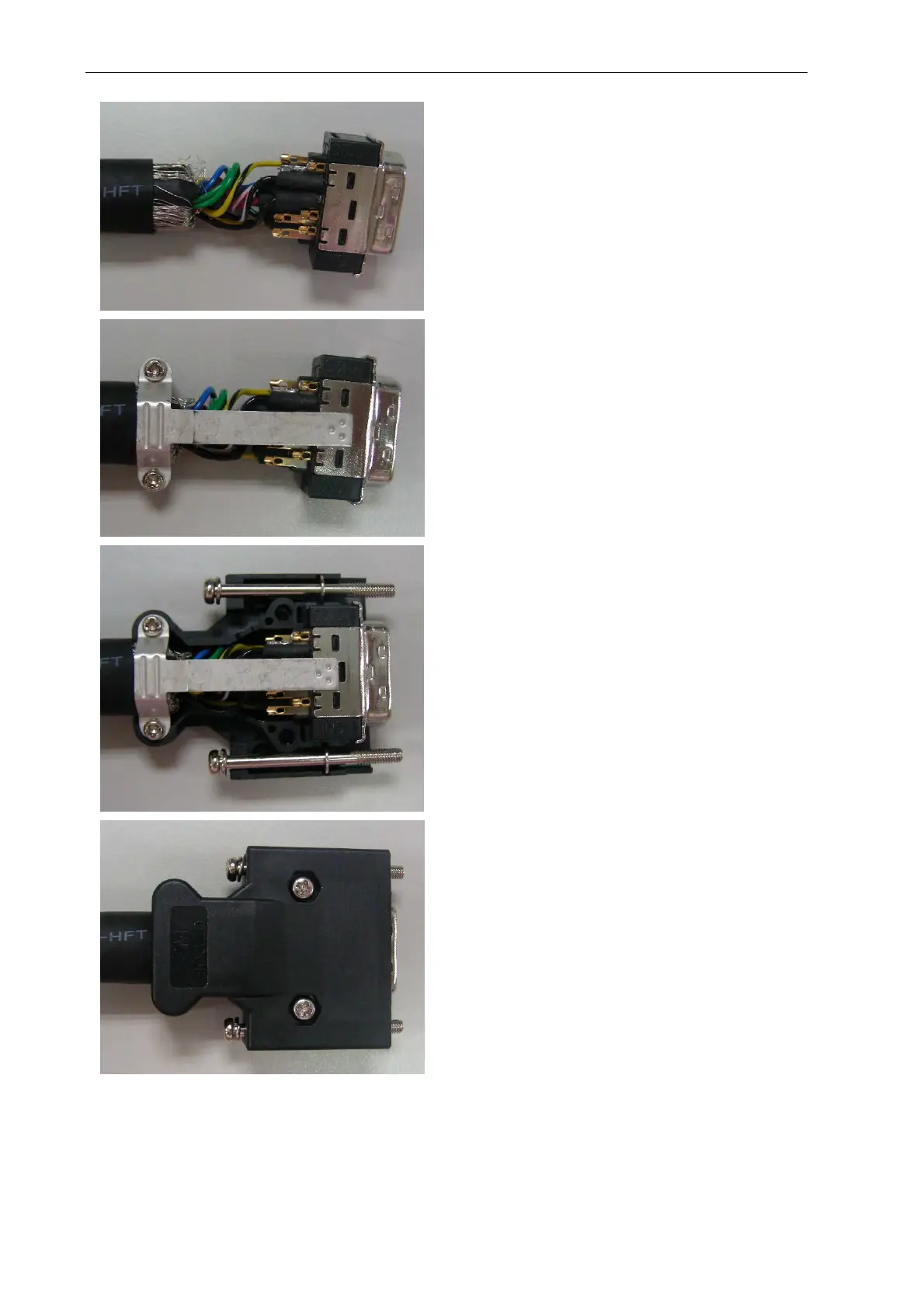

(3) Leave a length of 5~10mm metal core
wires with shielding outside the cable. The
length is about the width of the metal
saddle. The other unexposed wires of the
cable should be protected by the heat
shrink tube for good ground contact.
(4) Install a metal saddle to fix the
exposed metal core wires. The metal
saddle must completely cover all the
exposed metal core wires. The extended
sheet metal should be connected to the
metal part of the connector.
(5) Install the connector into the plastic
case as shown in the figure.
(6) Tighten the screws to complete a
shielded CN2 connector.
