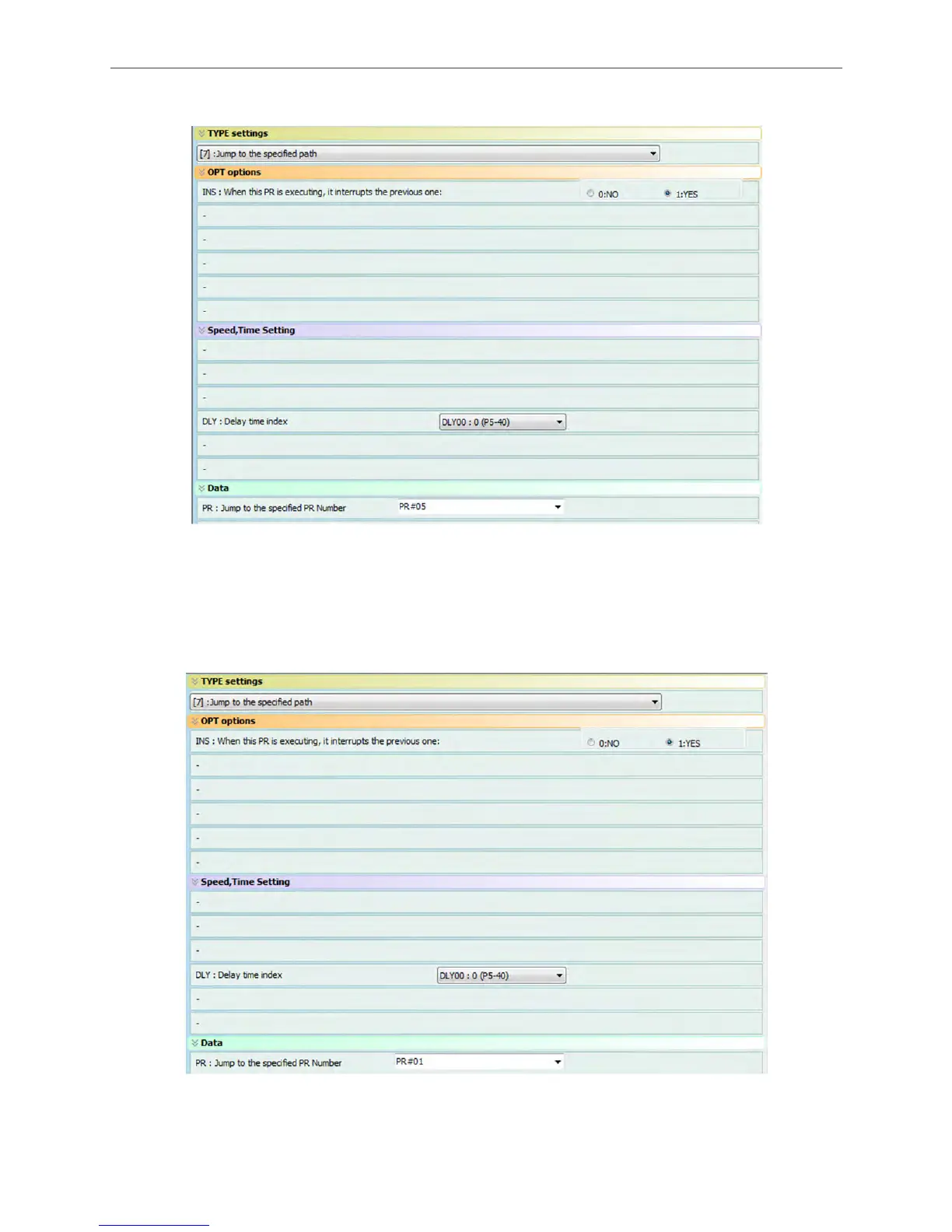

PR#51 Setting Screen
Figure 3.1.15 Setting Screen of PR #51 for Slave Axis
This is a jump path, which will be carried out when EV1 (Event 1) is triggered by rising-edge.
PR#52 Setting Screen
Figure 3.1.16 Setting Screen of PR#52 for Slave Axis
This is a jump path, which will be carried out when EV1 (Event 1) is triggered by falling-edge.

Delta ASDA Series Specifications

General

Control Modes	Position, Speed, Torque
Communication Interface	RS-485, CANopen, Modbus
Feedback	Incremental encoder, Absolute encoder
Protection	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Power Supply	Single-phase or three-phase AC
Output Power	50W to 15kW (depending on the specific model within the series)
