If the size of mapping content is 32-bit, a mapping parameter can map one parameter which has
the size of 32-bit. For example, P1-09 is a 32-bit parameter. Enter 0x0109 in both high-word and
low-word of P0-35, the content of P1-09 will all be mapped to P0-25.
0x12340x0001
0x0109 0x0109 0x12340x0001
32-bit
Parameters
Index of Mapping Parameter
P0-35
Mapping Parameter
P0-25
P1-09 H-Word
P1-09 L-Word

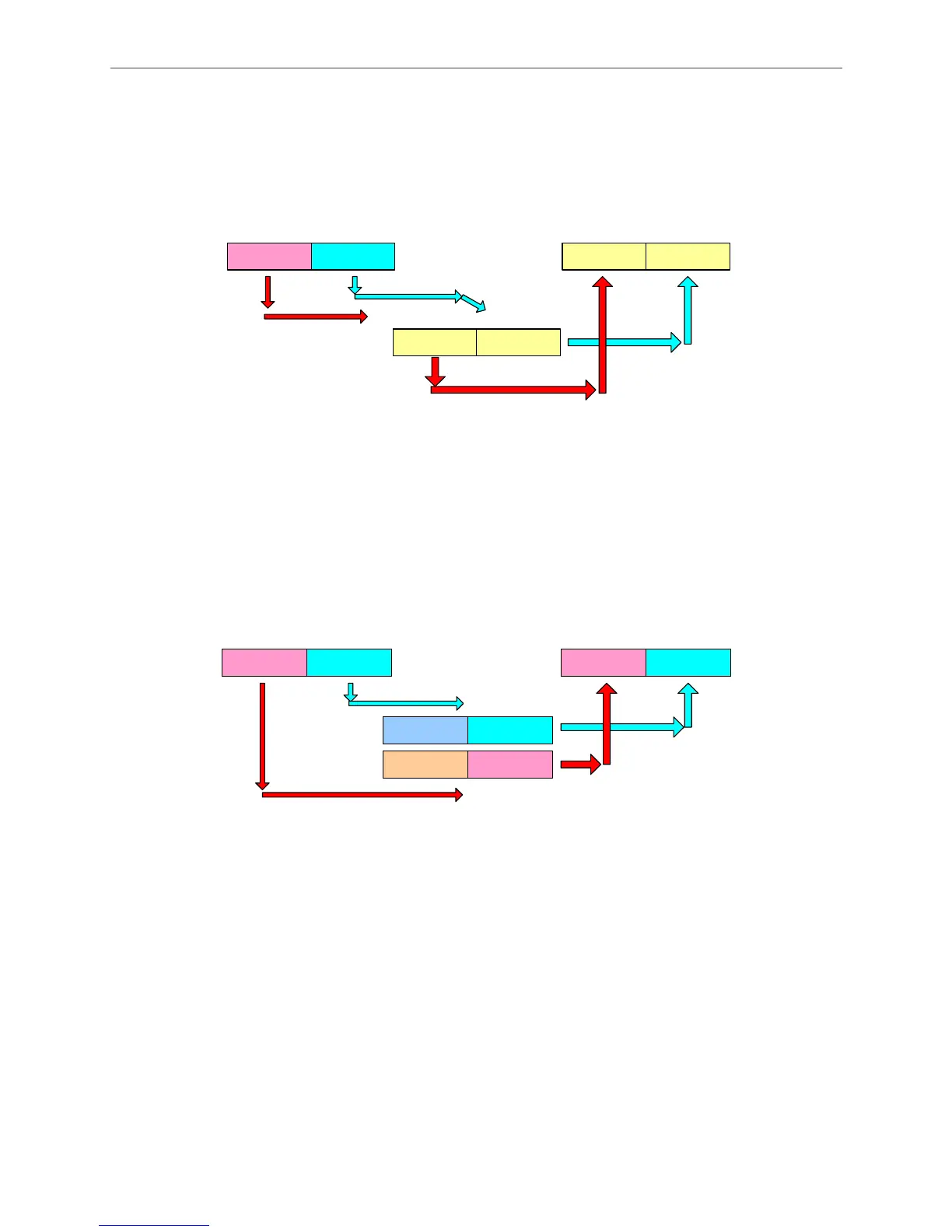

Figure 1.8 Example of Mapping a 32-bit Parameter
If respectively specifying a 32-bit parameter in low-word and high-word of the mapping index, the
mapping content will only show the low-word part of each 32-bit parameter. For example, P1-09
and P1-10 are both 32-bit; writing 0x0109 into low-word of P0-38, low-word part of P1-09 will be
mapped into the low-word part of P0-28. Writing 0x010A into high-word of P0-38, the low-word
part of P1-10 will be mapped into the high-word part of P0-28. See Figure 1.9.
Index of Mapping Parameter
P0-38
0x0001
0x0002
0x010A
0x0109 0x12030x3214
0x1203
0x3214
Mapping Parameter
P0-28
32-bit
Parameters
P1-09 L-Word
P1-10 L-Word
Figure 1.9 Example of Mapping Two Sets of 32-bit Parameter
Mapped parameter groups 1~4 can be observed via PC scope. This can be done by selecting
the items from the drop-down list of each channel on PC scope.
