E-Cam curve of cutter axis
The E-Cam curve of cutter axis can be done by E-CAM editor of ASDA-Soft. This example uses
Rotary Shear – Adjustable Sealing Zone to create an E-Cam curve. Users can create the curve
by setting up the required mechanism specification and angle. Please refer to Chapter 2 or
ASDA-Soft User Manual for detailed descriptions. The pulse number of master axis in this
example is calculated by software based on mechanism specification, P5-84 = 79577 (P5-83 =
1). The setting of E-gear ratio of cutter axis is P1-44 = 128 / P1-45 = 1. After creating the curve,
store it into data array to complete the setting.

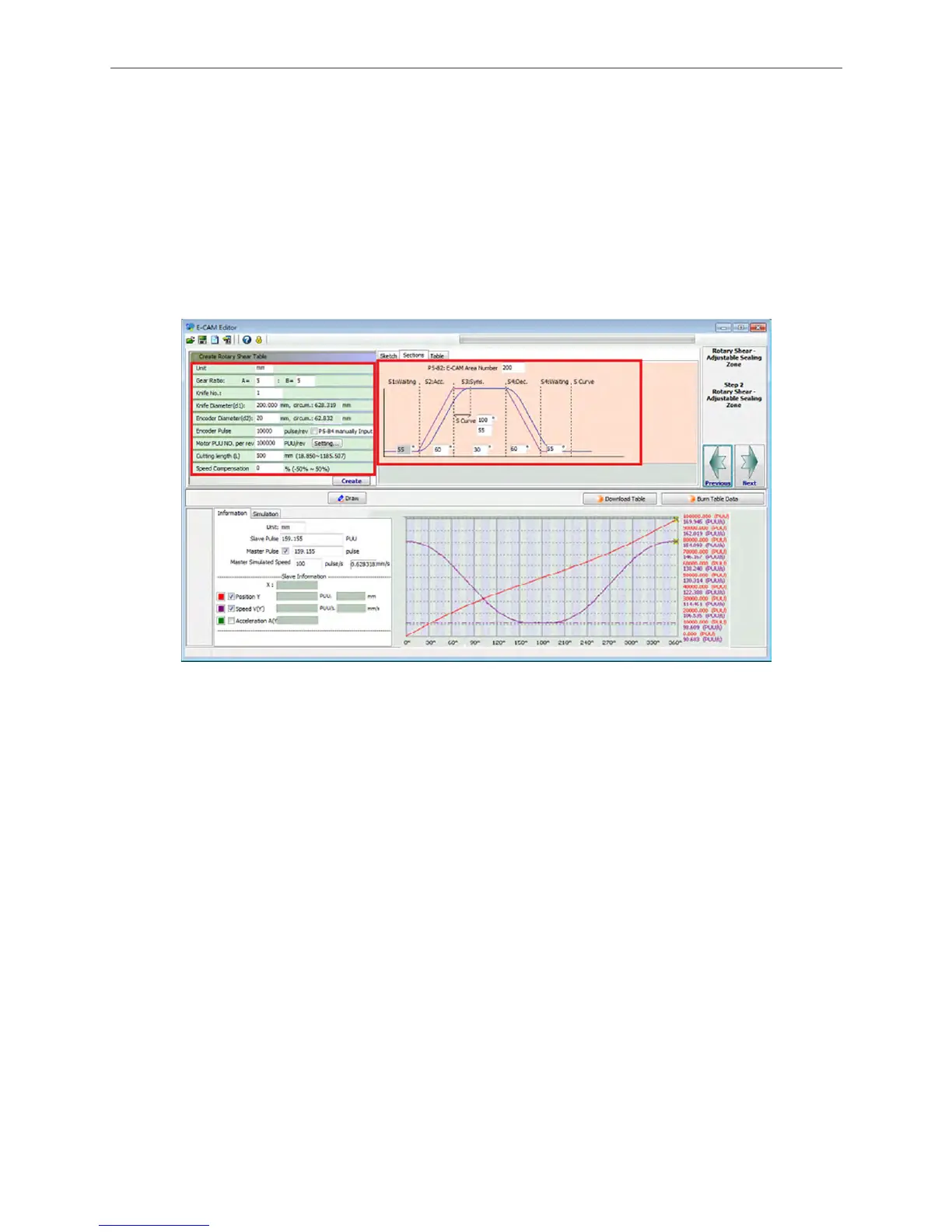

Figure 3.8.28 Rotary Shear – Adjustable Sealing Zone
