Delta ASDA Series User Manual

ASDA Series Application Note Application Examples
March, 2015 3-125
E-Cam curve of film feeding axis
The E-Cam curve of film feeding axis can be done by E-CAM Editor of ASDA-Soft. Assume the
gear ratio between motor and mechanism is 1:5 and the cutting length is 500 mm, 1 mm of
resolution corresponds to 100 PUU and 500 mm needs 50,000 PUU. The mechanism operates
50,000 PUU, it means the motor operates 50,000 x 5 = 250,000 PUU. The gear ratio of film
feeding axis can be set as P1-44 = 128 / P1-45 = 5. See Figure 3.8.29. It uses Manually create a
table to create the curve for film feeding axis and input 250,000 as the total length to create an
E-cam curve for constant speed operation. The E-gear ratio setting of film feeding axis is the
same as the one of cutter axis, which is P5-83 = 1 / P5-84 = 79577.

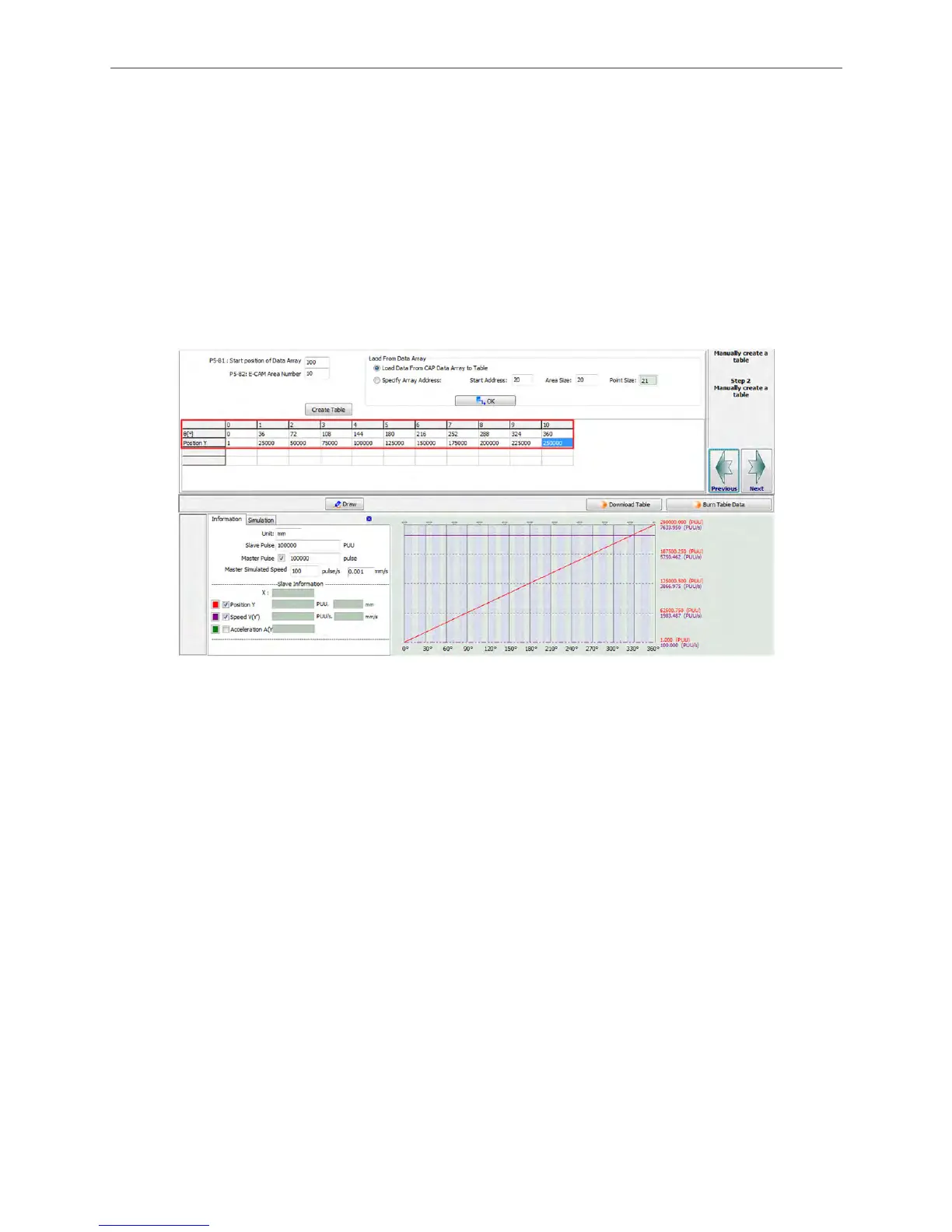

Figure 3.8.29 Manually create an E-Cam curve for film feeding axis
