Introduction of PR Operation ASDA Series Application Note
1-30 March, 2015

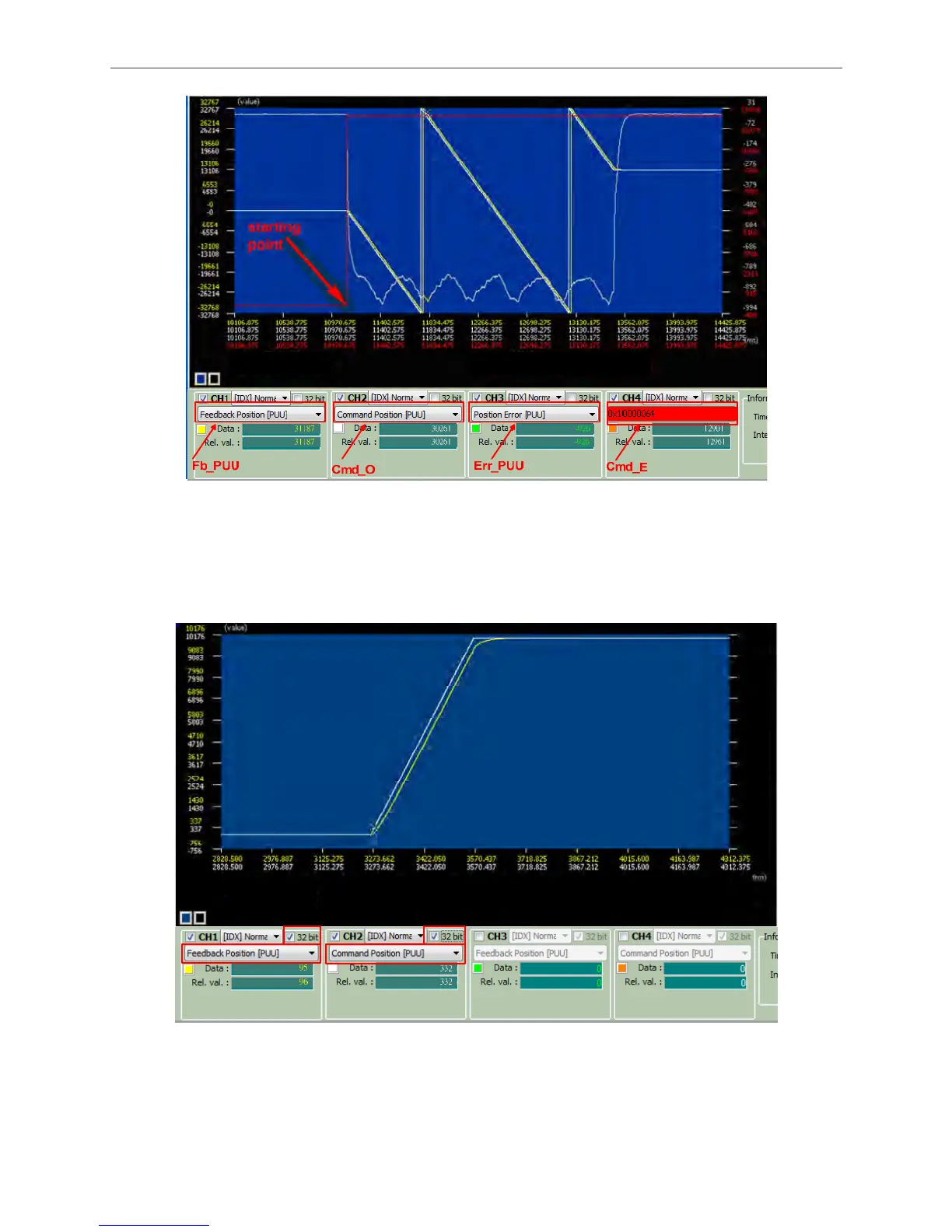

Figure 1.38 PC Scope of PR Monitoring Variables (32-bit)
Except that Err_PUU is 16-bit, other three parameters are 32-bit. To see the whole picture of
Cmd_O, Cmd_E, and Fb_PUU, users have to select the item of 32-bit display; however, only two
variables can be monitored at the same time in this case. See Figure 1.39.
Figure 1.39 Monitoring Variables on PC Scope (32-bit)
