Please follow the steps to edit the related settings in PR Mode Editor:
1. PR#1:

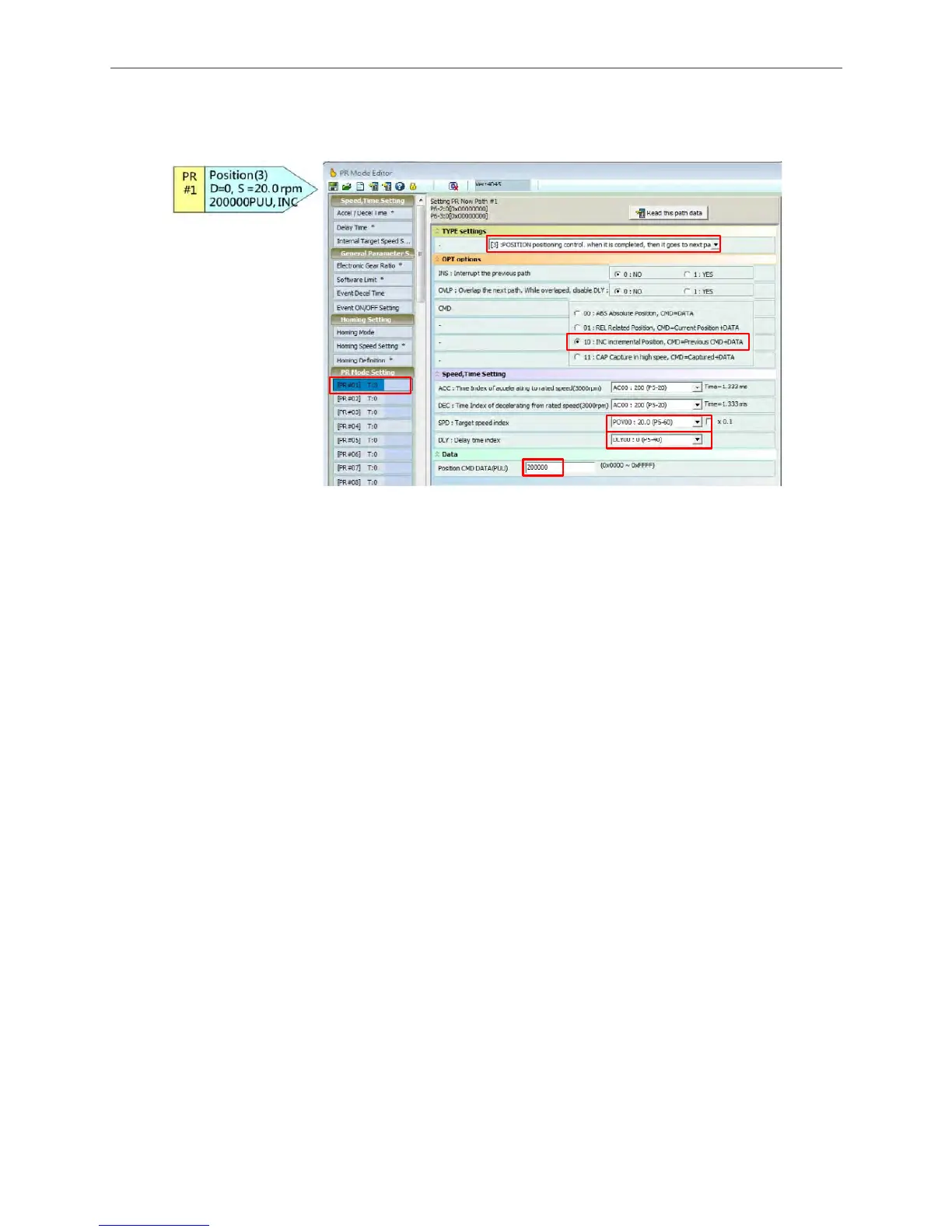

Figure 1.62 Settings of PR#1
a. Select path PR#01.
b. Select Type [3] in section TYPE settings.
c. Select item INC Incremental Position as the command type.
d. Set Target Speed Index to 20.0 rpm. Settings of related
acceleration/deceleration shall be appropriate.
e. No delay time; set 0 here.
f. Set Position CMD DATA to 200000 PUU.
ⓐ
ⓑ
ⓒ
ⓓ
ⓔ
ⓕ
