Delta ASDA Series User Manual

ASDA Series Application Note Introduction of E-Cam Operation
March, 2015 2-3
Input of Master Axis
Cam
Output
of Cam
Mechanical Power Pulse Command
If both of the axes work in the same manner, the Servo
system can be used to replace the machine Cam.

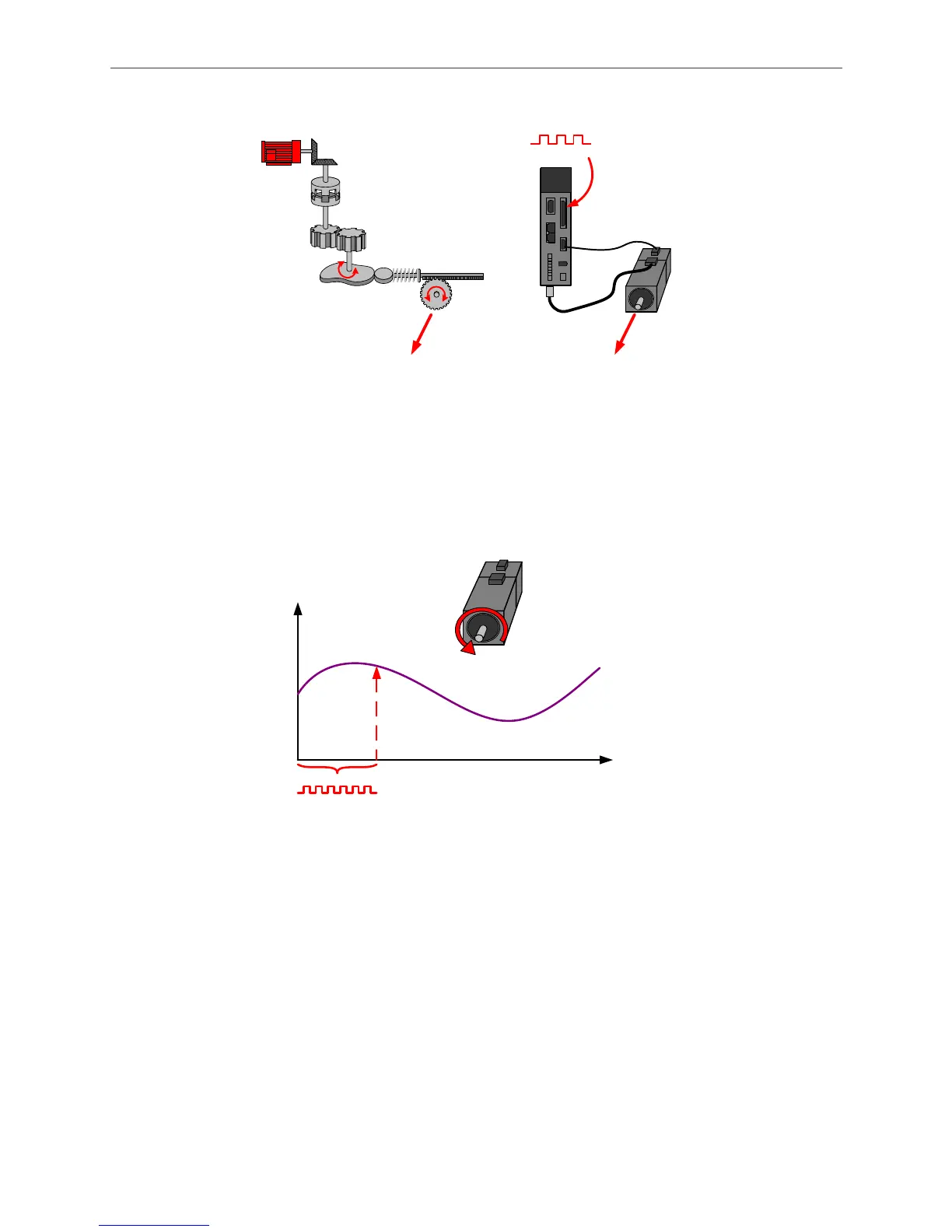

Figure 2.1 E-Cam and the Machine Cam
In E-Cam system, the cam makes the motion based on the E-Cam curve. The position of master
and slave is a one-to-one function relation, which is the E-Cam curve function. The function of
master axis is to send pulses to the slave axis. The slave axis will move according to the
received pulses and the corresponding E-Cam curve.
Pulse
(Master)
PUU,
Position
(Slave)
The pulse train
from master.
The
corresponding
position of
slave axis.
Position of the master
axis corresponds to
position of the slave axis.
Figure 2.2 An E-Cam Curve

Delta ASDA Series Specifications

General

Control Modes	Position, Speed, Torque
Communication Interface	RS-485, CANopen, Modbus
Feedback	Incremental encoder, Absolute encoder
Protection	Overvoltage, Undervoltage, Overcurrent, Overtemperature
Power Supply	Single-phase or three-phase AC
Output Power	50W to 15kW (depending on the specific model within the series)
