Delta DVP-PM Series User Manual

2 Hardware Specifications and Wiring
DVP-PM Application Manual
2-11

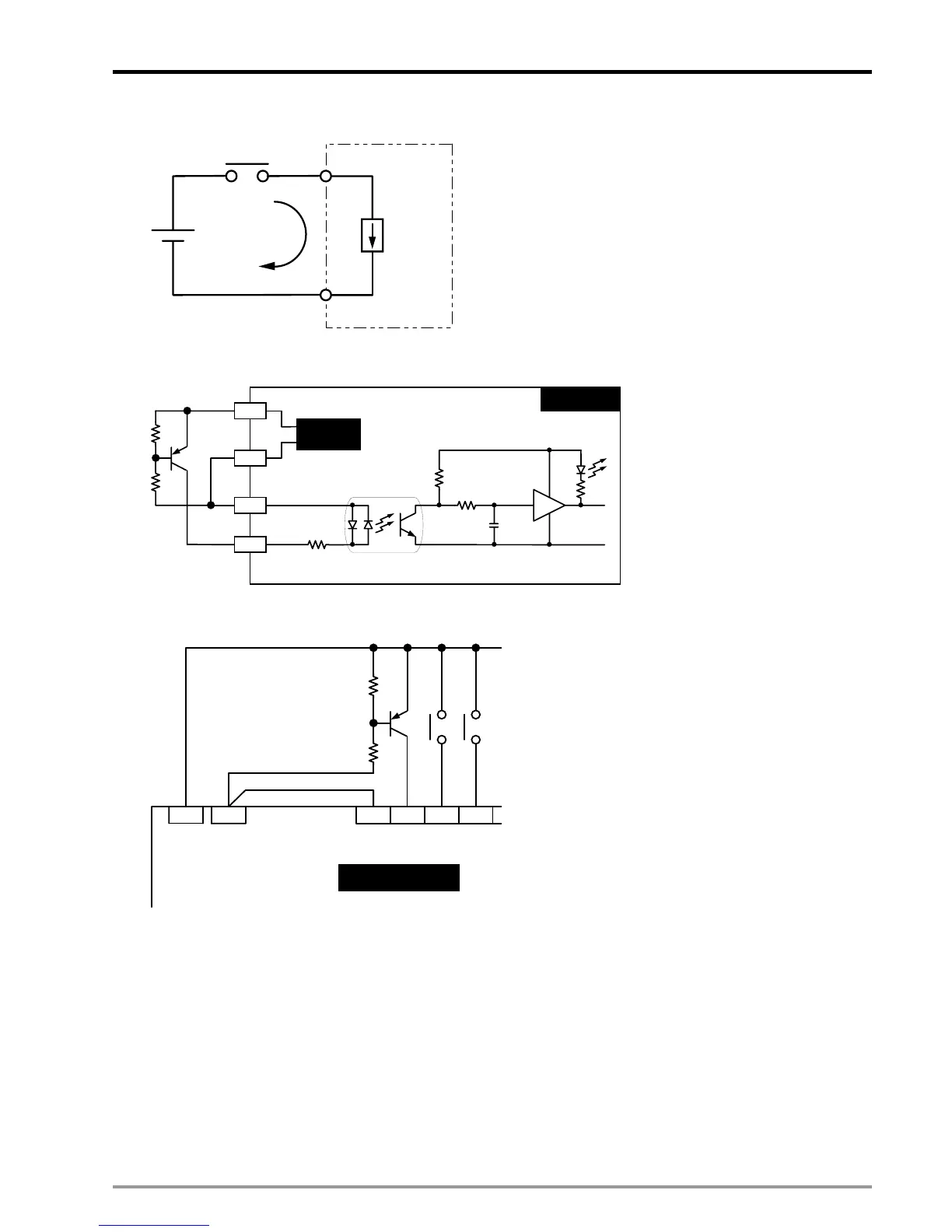

z DC Signal IN - SOURCE mode:
S/S
X0
Sourcing
Equivalent Circuit for Input Point
24VDC
24G
X0
S/S
+24V
SOURCE
+5V
Wiring Circuit:
24G
S/S
X0 X1 X2+24V
Source Type
2. Wiring of Differential Input:
A0 ~ A1 and B0 ~ B1 of DVP-PM series are all DC5V ~ 24V high-speed input circuit and others are DC24V
input. The working frequency of high-speed input circuit can reach up to 200kHz and is applied mainly for
connecting to output circuit with dual differential line driver.
Wiring in a high-speed, high-noise environment
