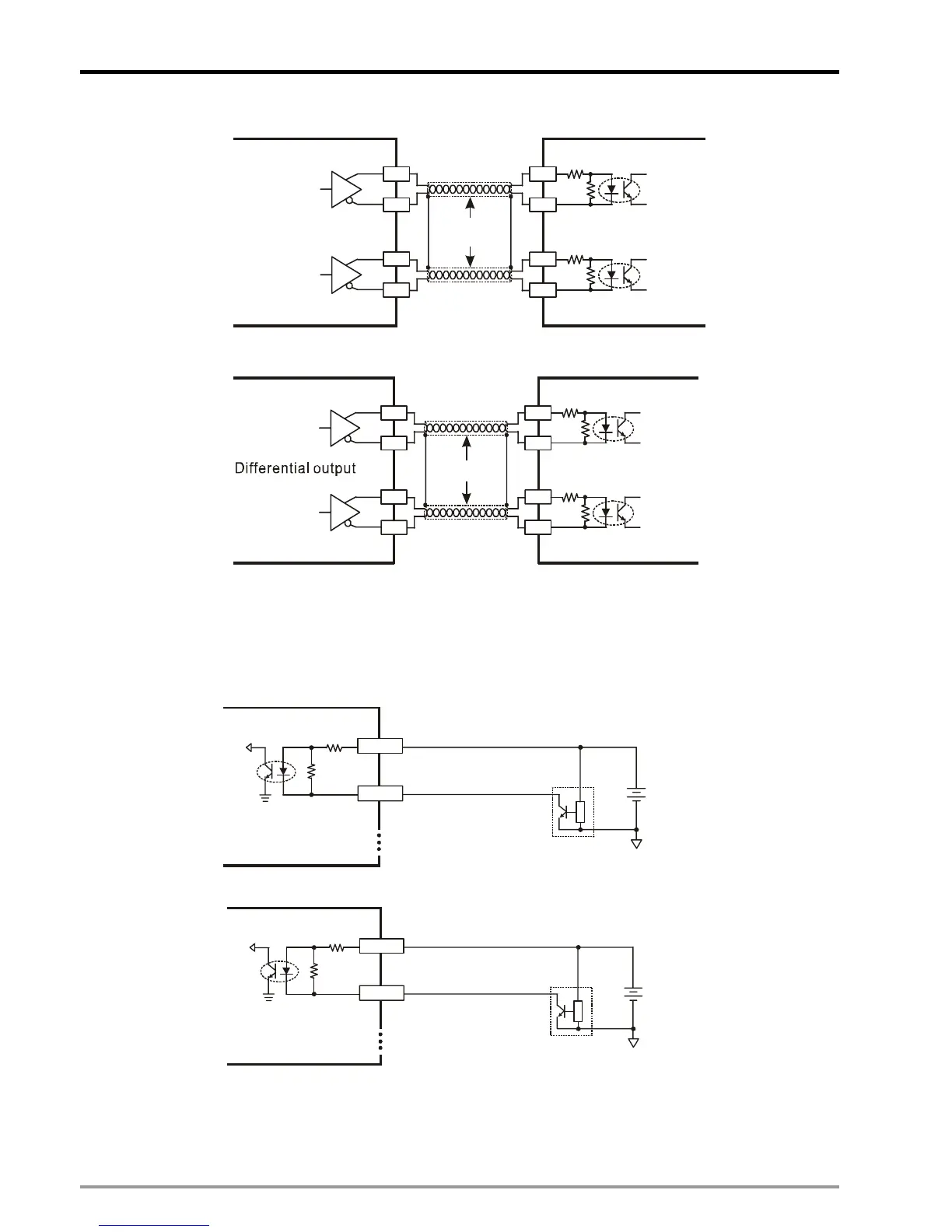

DVP20PM00D high-speed input
A
A+
A -
B -
B+
A0+
A0 -
B0+
B0 -
B
Encoder output
Differential output
Twisted pair
cable
Encoder output
DVP10PM high-speed input
Twisted pair
cable
A
A+
A -
B -
B+
X10+
X10 -
X11+
X11 -
B
In low-noise and low-frequency (less than 50kHz) environment, you can also use single-ended DC 5V ~ 24V
SINK/SOURCE input. See below for the input wirings:
y Wiring of DVP-PM DC5V SINK
(5V SINK)
NPN
SENSOR
+
5~24V
PG0+
PG0 -
DVP-20PM
(5V SINK)
NPN
SENSOR
+
5~24V
PG0+
PG0 -
DVP-10PM
