6 Motion Instructions & G-Code Instructions

DVP-PM Application Manual

6-52

Mnemonic Operands Function

G17 Select X-Y Plane

G18 Select X-Z Plane

G-Code

G19

N/A

Select Y-Z Plane

Controllers

20PM -

Explanations:

1. The three instructions decide the work planes for arc interpolation and helical interpolation and have no effects

on linear interpolation.

2. The three instructions can be switched to each other during the execution of instruction. If no work plane is set

up, X-Y plane (G17) will be automatically selected as the work plane..

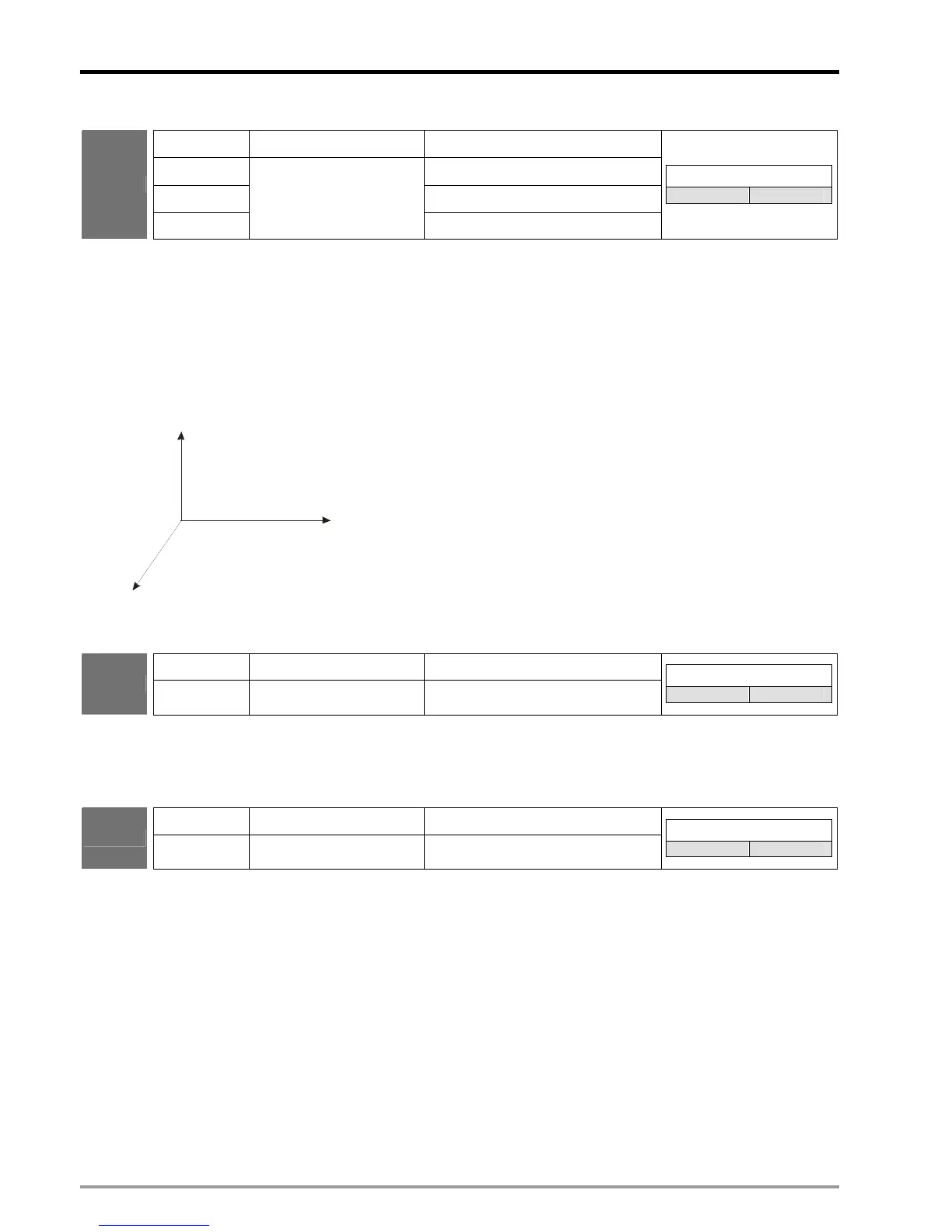

3. Work planes:

G19

G18

G17

Mnemonic Operands Function

G-Code

G90

N/A

Set up Absolute Coordinate

Controllers

20PM -

See MON 17 ABS for the operation of G90

Mnemonic Operands Function

G-Code

G91

N/A

Set up Relative Coordinate

Controllers

20PM -

See MON 18 INC for the operation of G91
