îš„ Switch the source of Master of acyclic E-CAM
For acyclic E-CAM, the source of Master can be switched to Y axis during the execution by setting up
M1755. With M1755 = ON, source of Master will be switched automatically when Master position (DD1862)
is bigger than the switching position (DD1866). Source of Master will be switched back to MPG0 after
acyclic E-CAM cycle is completed. (Not applicable for virtual Master mode: M1909 / M1910). The function is
generally used for obtaining equalled deceleration speed as well as correct stop position, regardless of the
error resulted from Master speed or the characteristics of photo sensor.

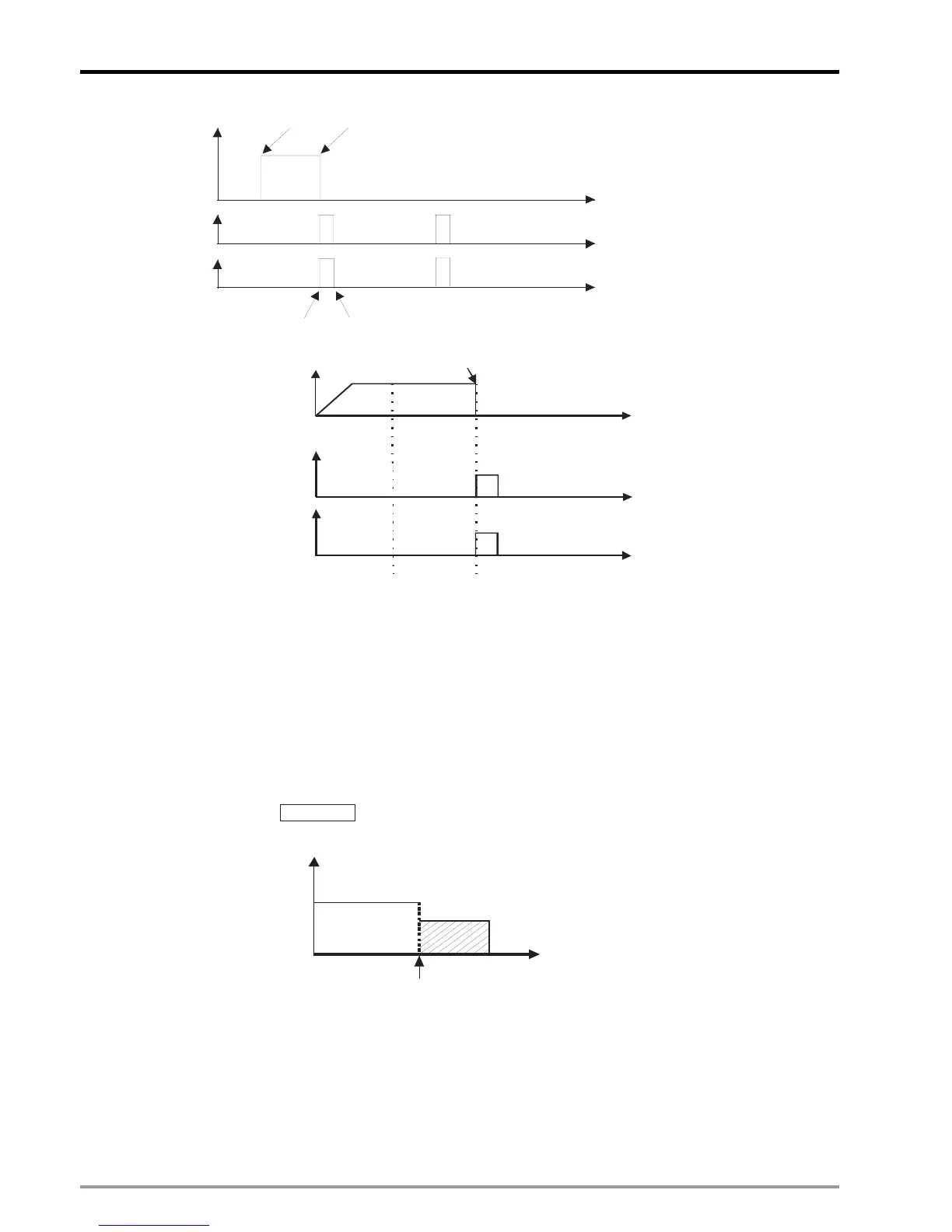

N times
Y axis speed
Slave speed
Master position
N times
Master speed
Switching position of source of Master
(D1867,D1866)
M1755=ON
îš„ Remain current speed until meeting limit switch: M1757
When M1757 is ON, Slave will remain current speed and continue operation until the right/left limit is
reached.
