Delta DVP-PM Series User Manual

9 Electrical CAM
DVP-PM Application Manual
9-37
 Application Example
Conduct smooth curve interpolation on the original curve of E-CAM Chart-0:
Original data points: 24; Length of Master: 10,000; Total points to be inserted: 200 points; Smoothing
coefficient: 5 times; Cycloid type: Uniform B-Spline.

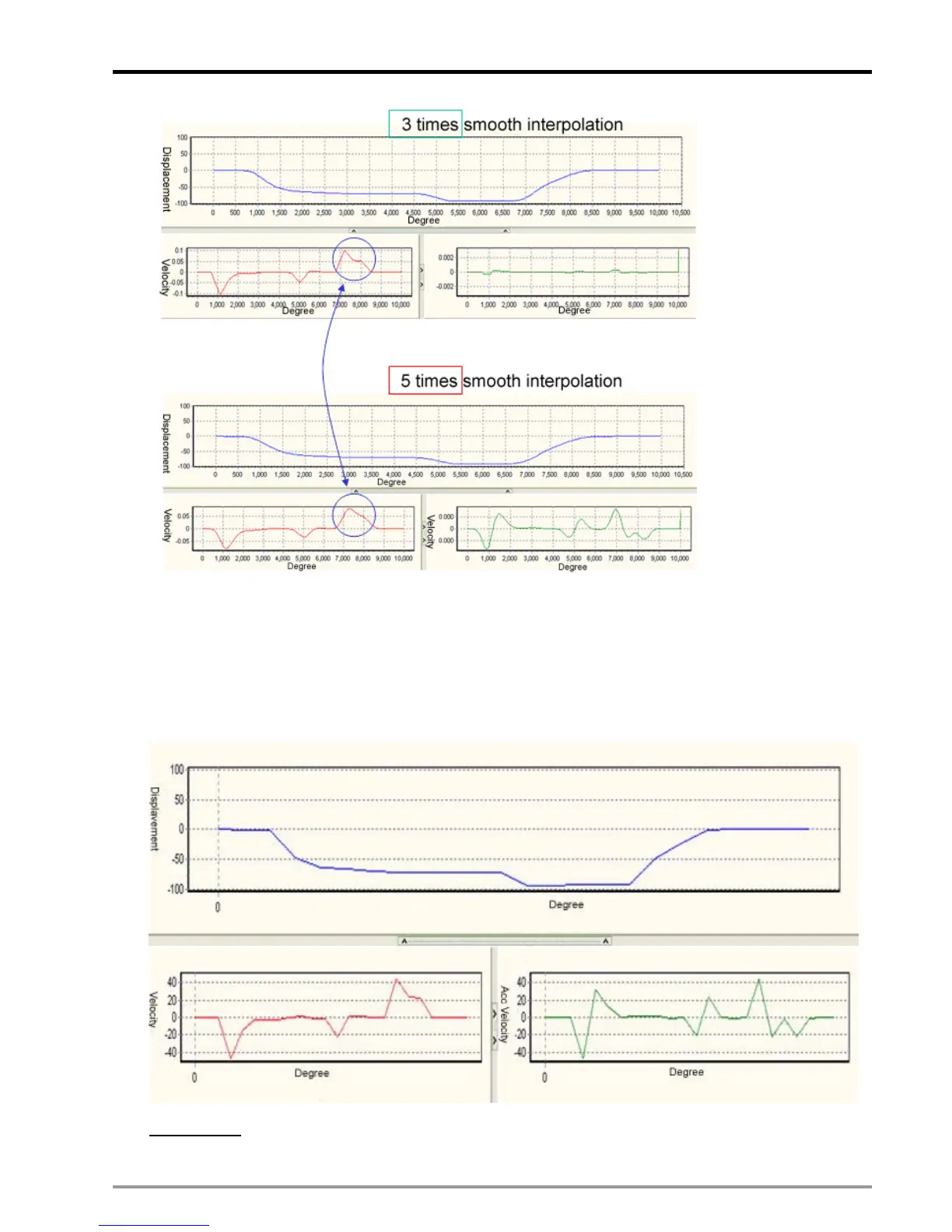

The original curve is as below:
Control Steps:
Step 1: Create a 23-point E-CAM curve in E-CAM Chart-0. Use the import function to set up the E-CAM data
