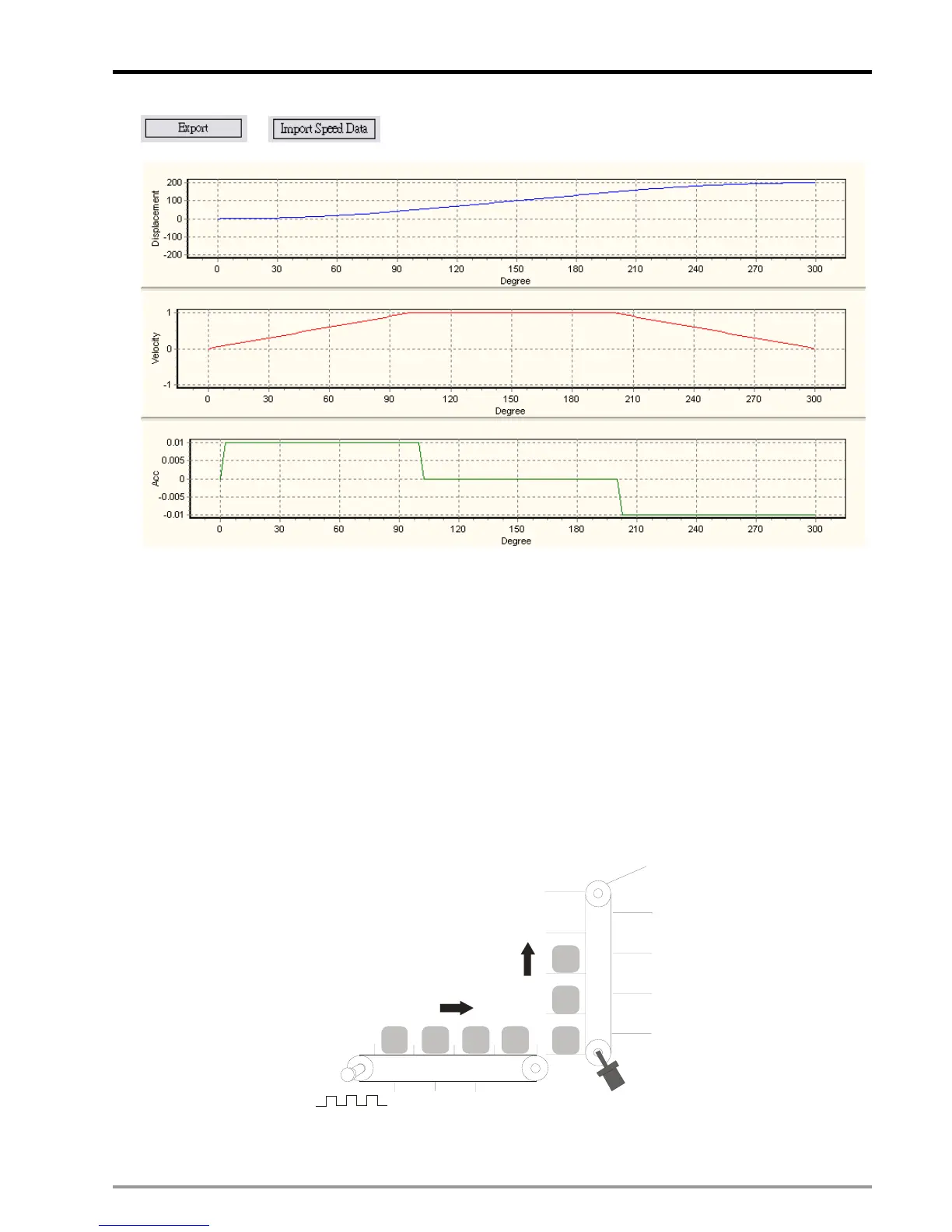

According to the above E-CAM Chart, we can calculate the pulses per round of Slave (Slavemax=200) by the
square measure of velocity data.
(1*100/2+1*(200-100)+1*(300-200)/2)=200
Pulses per round of Master equal to the cut length. You can apply input /output magnification setting at 9.3.1.7 in
this chapter to obtain the proper set value.
The below diagram is another application on synchronizing conveyers. The E-CAM operation of the example is
similar to flying saw. However, care should be taken on setting the CAM curve of Slave. Constant speed for Slave
is recommended. If the CAM curve is set the same as the flying saw, the vertical conveyor can not keep smooth
moving speed due to the acceleration and deceleration process of flying saw.
Master encoder
Slave(E-CAM)
