11 G-code Application
DVP-PM Application Manual
11-7

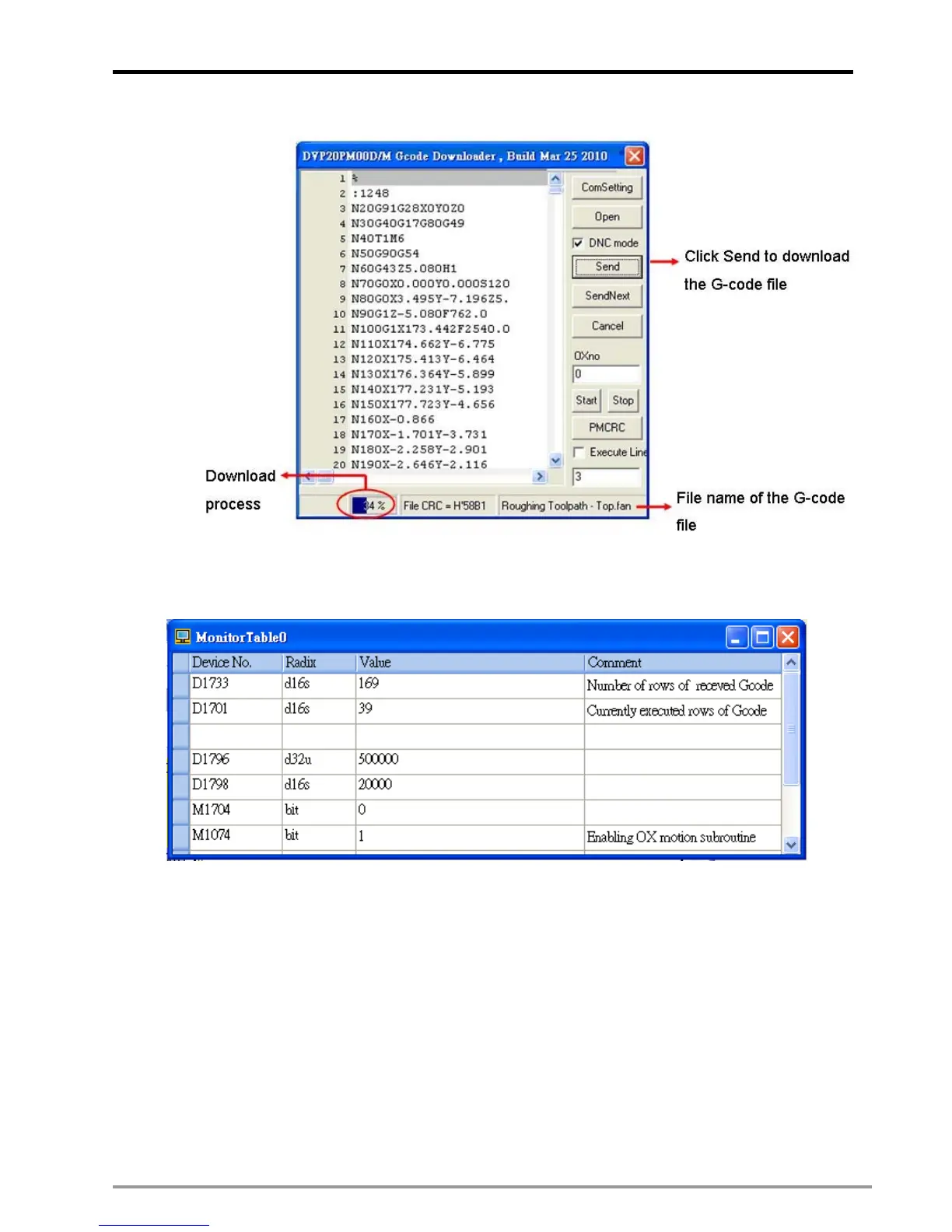

(3) Click “Send” to download the G-code file.
Step 5: On PMSoft, you can monitor D1733 for number of rows of received G-code on DVP-PM, and D1701
for currently executed rows of G-code. Check if the content of the registers increases and OX0 executes
automatically as below.
Step 6: If you want to stop the operation in DNC mode, click “Cancel”. G-codes will stop when the executed
rows equal to the received rows. If you need to reset and download the file again, stop O100 and activate
O100 again. The step can be skipped if there is no need for stopping the operation.
