3 Functions of Devices in DVP-PM
DVP-PM Application Manual
3-53

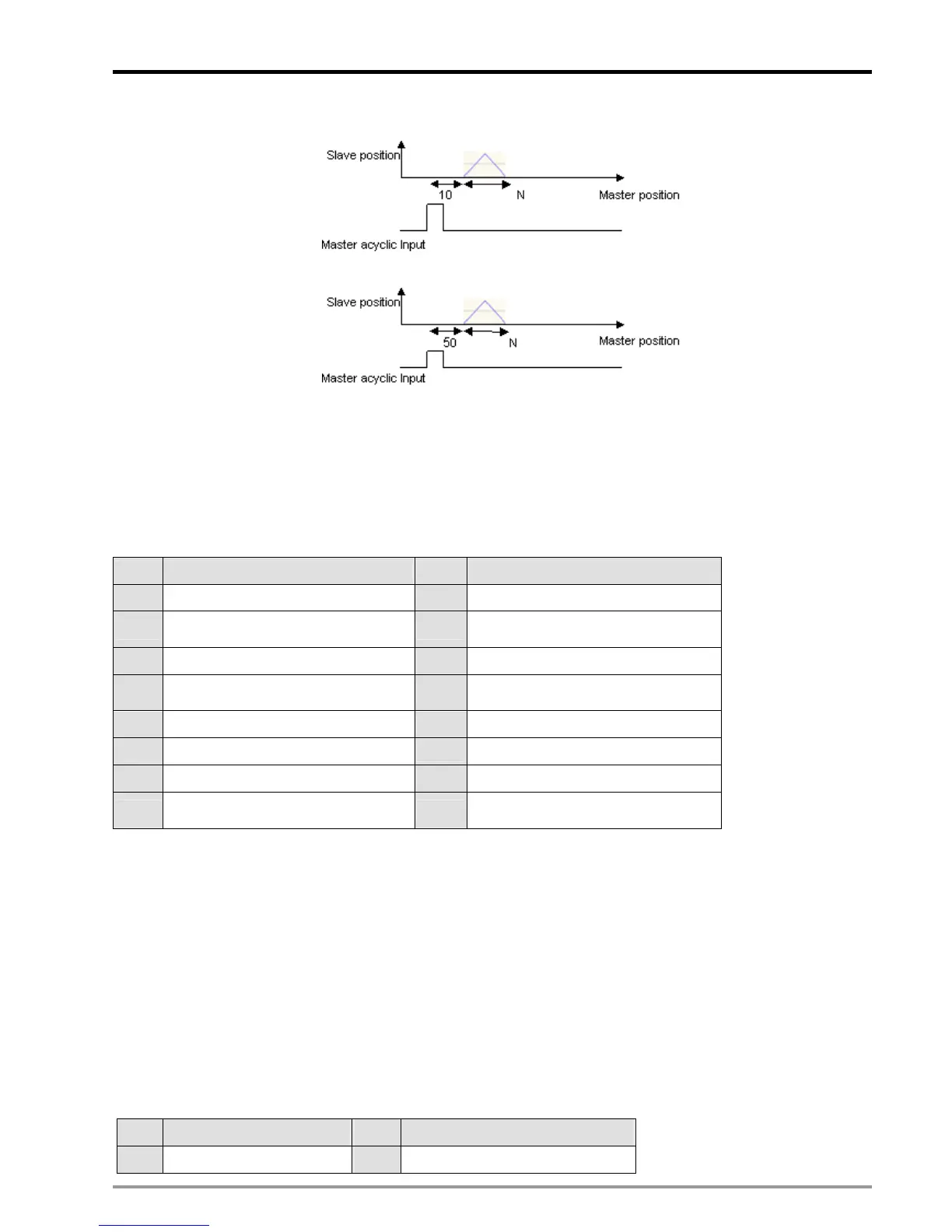

D1834 = 10
D1834 = 50
Function Group:
Operation Commands for X-Y-Z-A Axis
Number:
D1846, D1926, D2006, D2086
Explanations:
Operation commands for X axis: D1846, Y axis: D1926, Z axis: D2006 and A axis: D2086
bit# X-Y-Z-A operation setting bit# X-Y-Z-A operation setting
0 STOP 8 Enabling single-speed positioning mode
1 START 9
Enabling single-speed positioning with
additional distance
2 JOG+ operation 10 Enabling 2-speed positioning mode
3 JOG- operation 11
Enabling 2-speed positioning with
additional distance
4 Enabling variable speed operation 12 0: Stop OX; 1: Start OX
5* MPG input operation 13* Enabling cyclic CAM
6 Enabling zero return mode 14* Enabling acyclic CAM
7*
Externally triggering single-speed
positioning
15
-
*Note:
1. MPG input for 00D: X axis (A0+/A0-, B0+/B0-), Y axis (A1+/A1-, B1+/B1-)
MPG input for 00M: X axis (A0+/A0-, B0+/B0-), Y axis and Z axis (A1+/A1-, B1+/B1-)
2. Only bit 7 of D1926 supports the mode “Externally triggering single-speed positioning.”
3. Only bit 13 and bit 14 of D1846 support the CAM enabling function.
Function Group:
Work Modes of X-Y-Z Axis
Number:
D1847, D1927, D2007
Explanations:
Work mode setting of X axis: D1847, Y axis: D1927 and Z axis: D2007.
bit# Work mode of X-Y-Z bit# Work mode of X-Y-Z
0 - 8 MASK selection
