Delta DX-2300 Series User Manual

Chapter 1 Product Introduction
1-5
1_

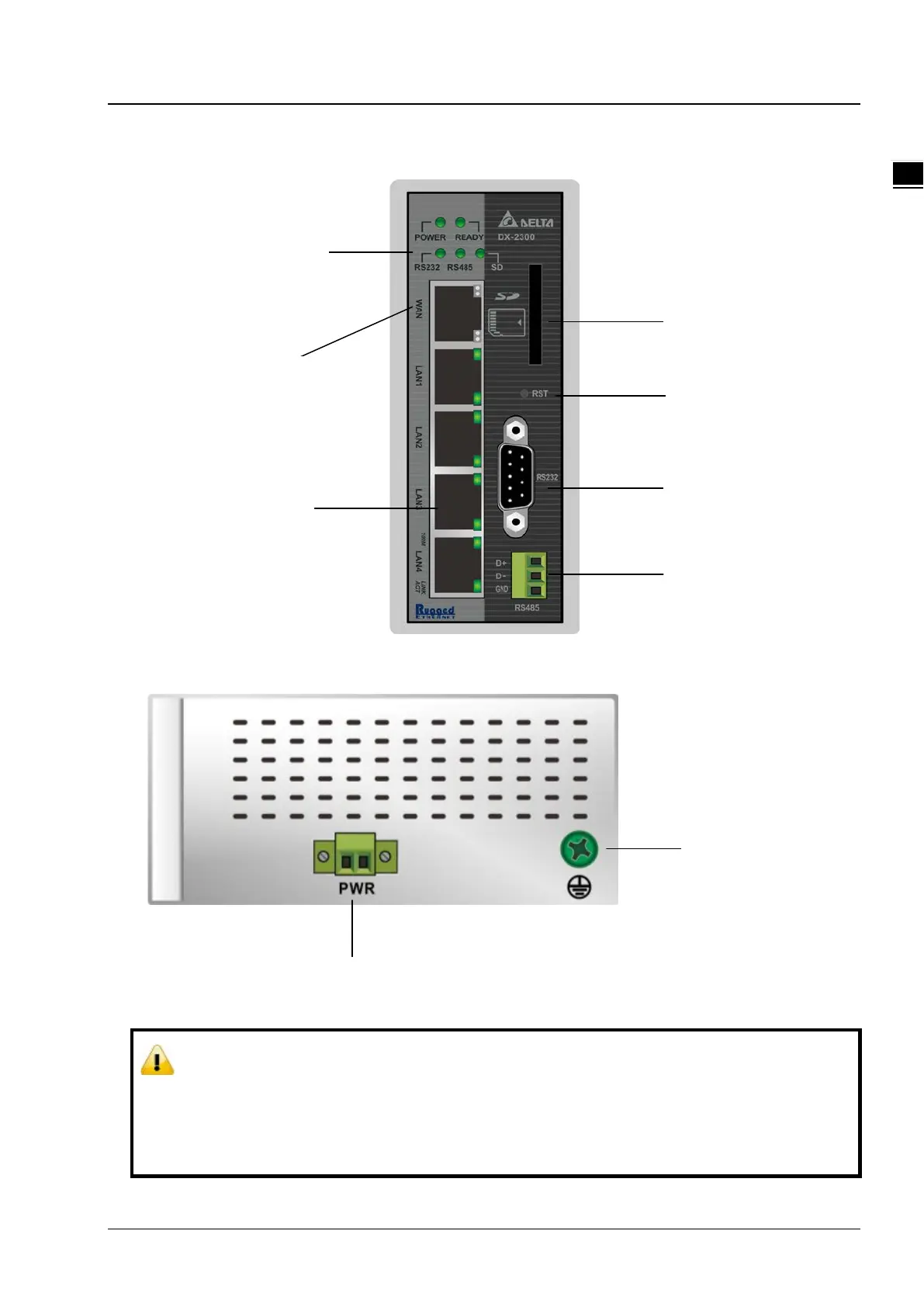

1.1.3 Front Panel Ports and LEDs
1.1.4 Bottom Panel
Notice
This router’s reset button is on the front panel. By pressing the Reset button, users can reset the router or
reset the router to factory default settings. See the instruction below:

Reset the Router: With the router powered on, press the Reset button and release the button right
away.
POWER LED
READY LED
RS232 LED
RS485 LED
SD LED
WAN Port
LAN Port
SD Card Slot
Reset Button
RS232 Port
RS485 Port
Power Port
Grounding
Screw
