Delta ME300 Series

Chapter 7 Optional AccessoriesME300
7-64
Press the Up / Down keys to adjust the setting value,
and then press ENTER.
The setting value changes to Blue Text.

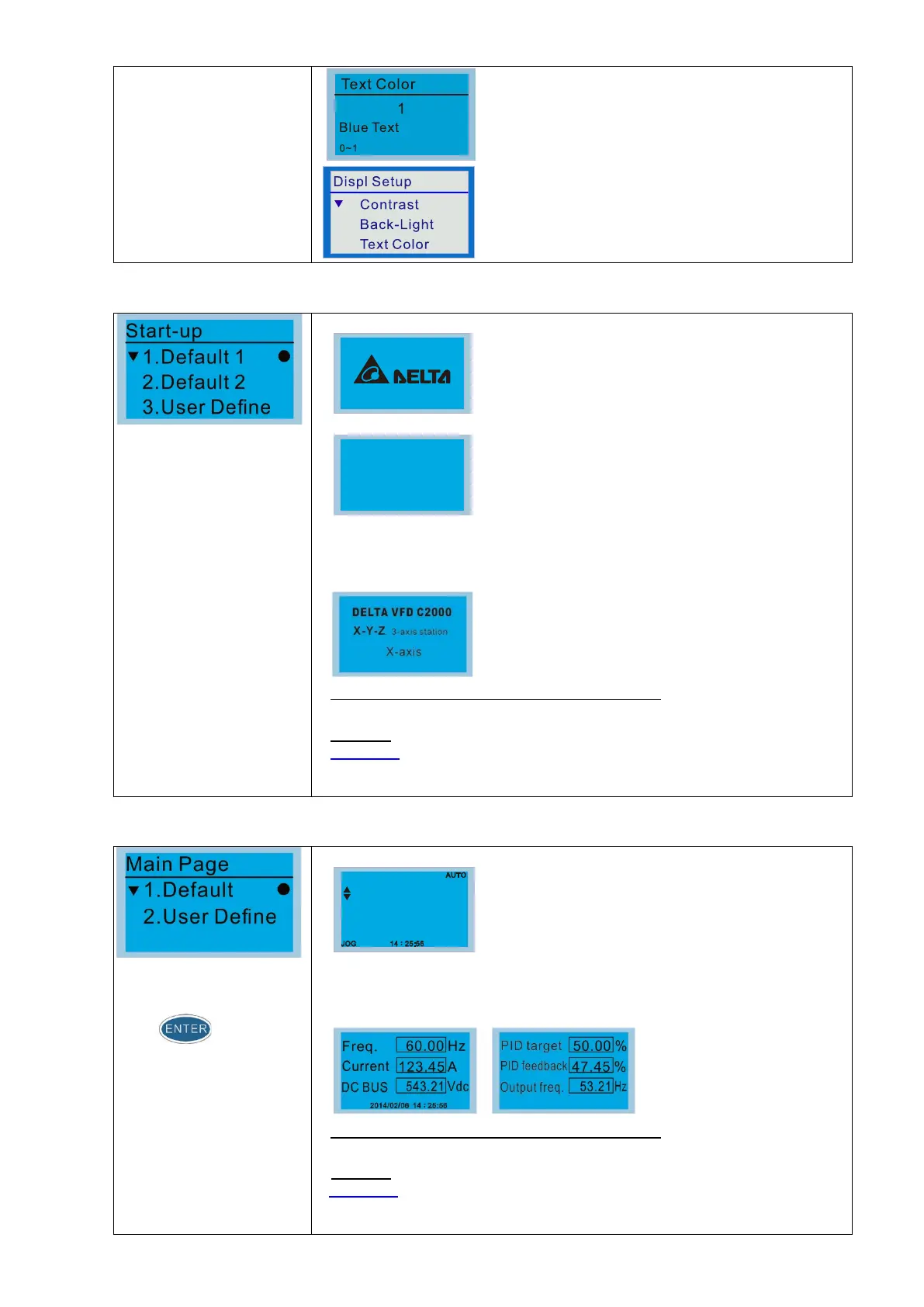

13. Start-up Menu
1. Default 1 DELTA LOGO
2. Default 2 DELTA Text
3. User-defined: an optional accessory is required (TPEditor & USB / RS-
485
Communication Interface-IFD6530) to design your own start-up screen.
If the editor accessory is not installed, the User Define option displays
a
blank screen.
USB/RS-485 Communication Interface-IFD6530
Refer to Chapter 07 Optional Accessories for more details.
TPEditor
Download the TPEditor software at Delta webside, select TPEditor version
1.60 and above. Refer to the installation instruction for TPEditor in Section
7-13-3.
14. Main page
Default screen and editable
screen are available upon
selection .
Press to select.
1. Default page
F
H
u
60.00Hz
540.0Vdc
0.00Hz
F 60.00 Hz >>> H >>> A >>> U (options rotate)
2. User Define: an optional accessory is required (TPEditor & USB / RS-
485
Communication Interface-
IFD6530) to design your own main screen. If the
editor accessory is not installed, the User Define option displays a blank
screen.
USB/RS-485 Communication Interface-IFD6530
Refer to Chapter 07 Optional Accessories for more details.
TPEditor
Download the TPEditor software at Delta website, select TPEditor version
1.60 or above. Refer to the installation instruction for TPEditor in Section 7-
13-3.
1 :
2 :
3 :
