Delta ME300 Series - DIN-Rail Mounting

Chapter 7 Optional AccessoriesME300
7-48

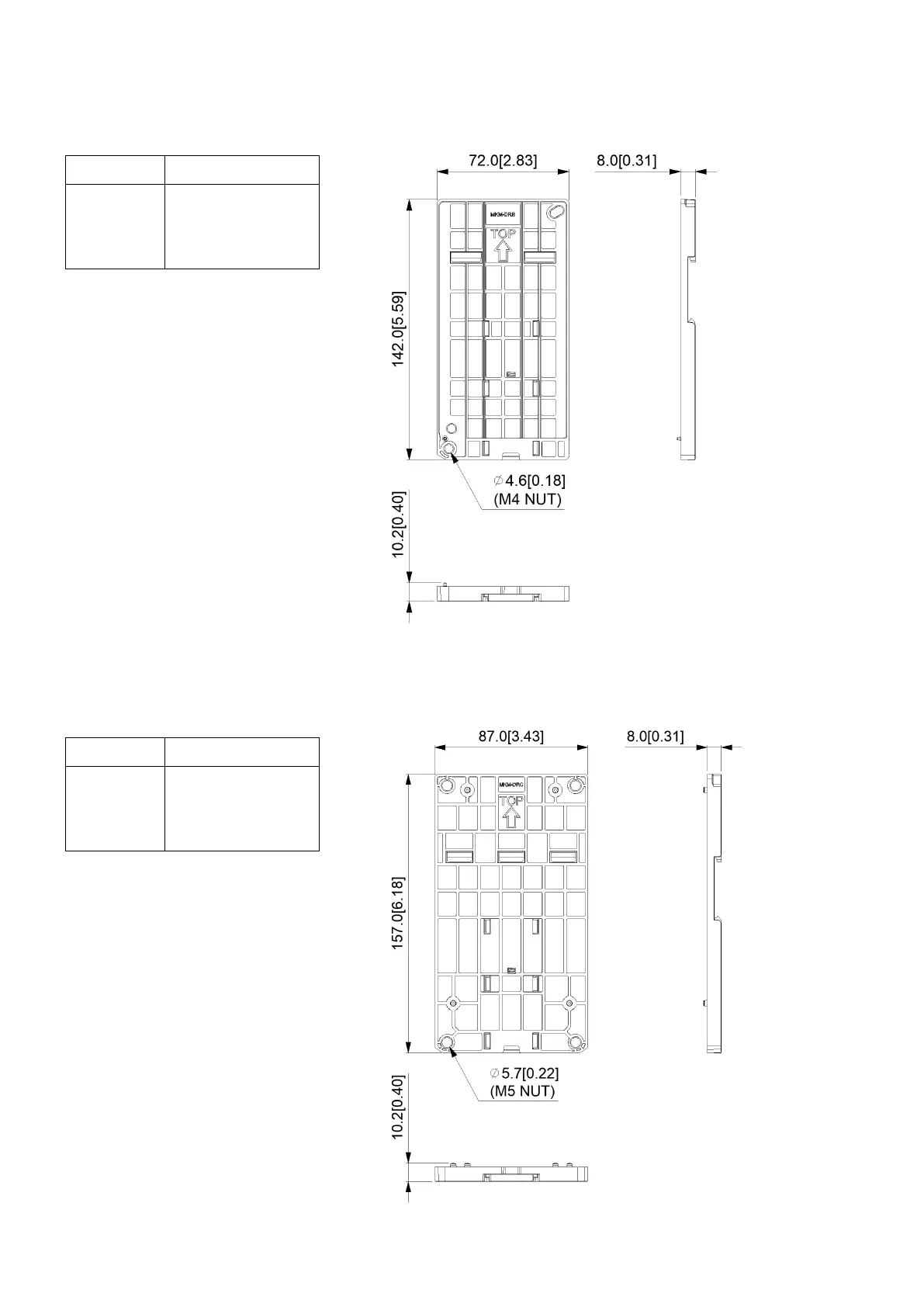

7-11 DIN-Rail Mounting
M
KM-DRB (applicable for Frame A and Frame B)
Screw Torque
M*2PCS
8–10 kg-cm
[6.9–8.7 lb-in.]
[0.7–98 Nm]
Figure 7-54
MKM-DRC (applicable for Frame C)
Screw Torque
M5*4PCS
10–12 kg-cm
[8.7–10.4 lb-in.]
[0.98–1.18 Nm]
Figure 7-55
Unit: mm [inch]
Unit: mm [inch]
