Delta ME300 Series User Manual

Chapter 6 Control TerminalsME300
6-2

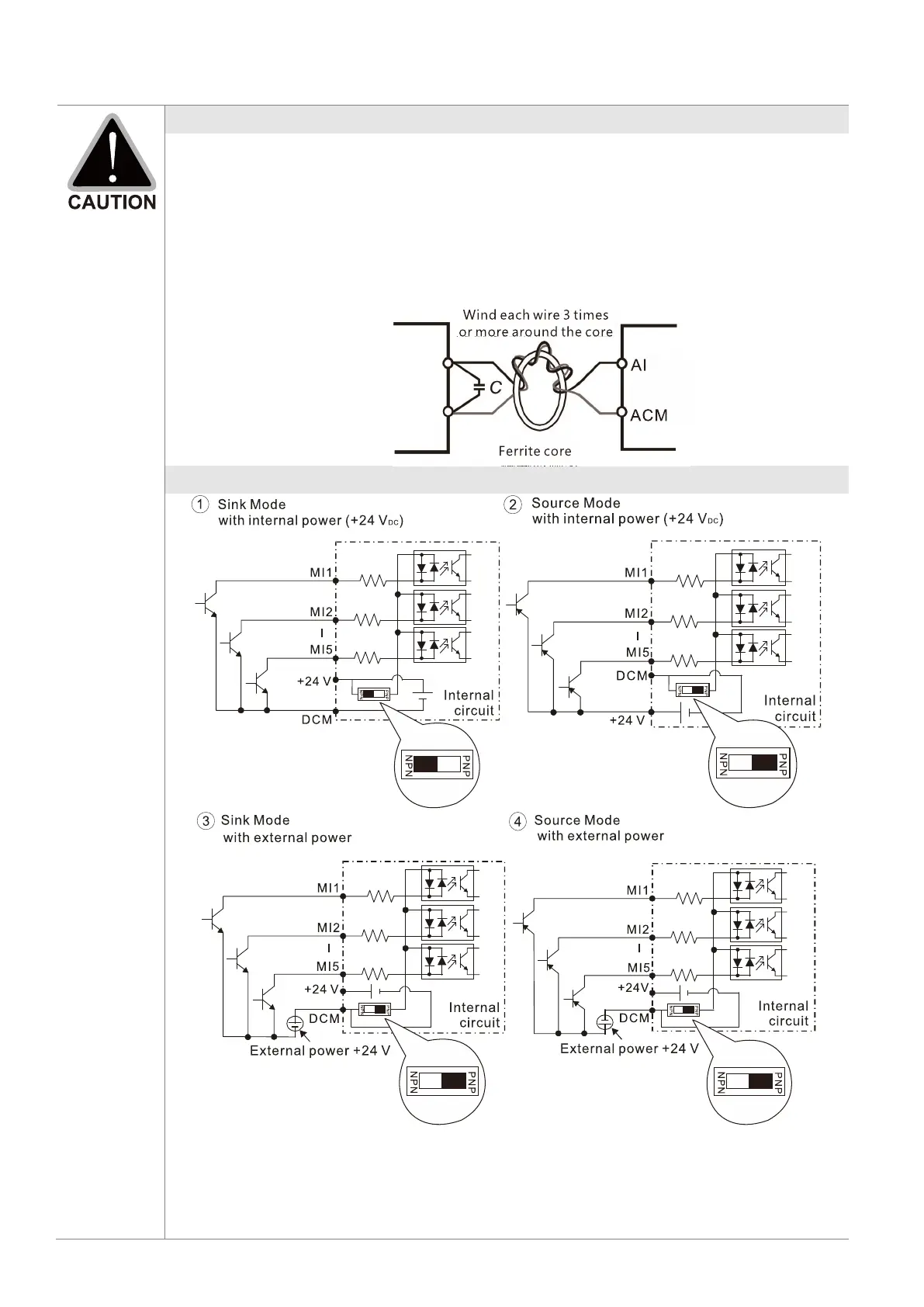

6-1 Control Terminals
Analog input terminals (AI, ACM)
 Analog input signals are easily affected by external noise. Use shielded wiring and
keep it as short as possible (less than 20 m) with proper grounding. If the noise is
inductive, connecting the shield to the ACM terminal can reduce interference.
 Use twisted-pair wire for weak analog signals.
 I
f the analog input signals are affected by noise from the drive, connect a capacitor
and ferrite core as shown in the following diagram.
Contact input terminals (MI1–MI5, DCM, +24 V
DC
)
 When using internal power, the terminal switches to NPN is collinear with 24V, and
switches to PNP is collinear with DCM.
 It’s Sink mode when the external transistor is NPN, and its Source mode when the
external transistor is PNP.

Delta ME300 Series Specifications

General

Power Rating	0.4 kW ~ 110 kW
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Short Circuit
Communication	RS-485
Storage Temperature	-20-60°C
Dimensions	Varies by model
Weight	Varies by model
Input Voltage	3-phase 220VAC
Humidity	90% RH, non-condensing
