Chapter 1 IntroductionME300
Asymmetric Ground System (Corner Grounded TN Systems)
Caution: Do not remove the RFI jumper while there is power to the input terminal of the drive.

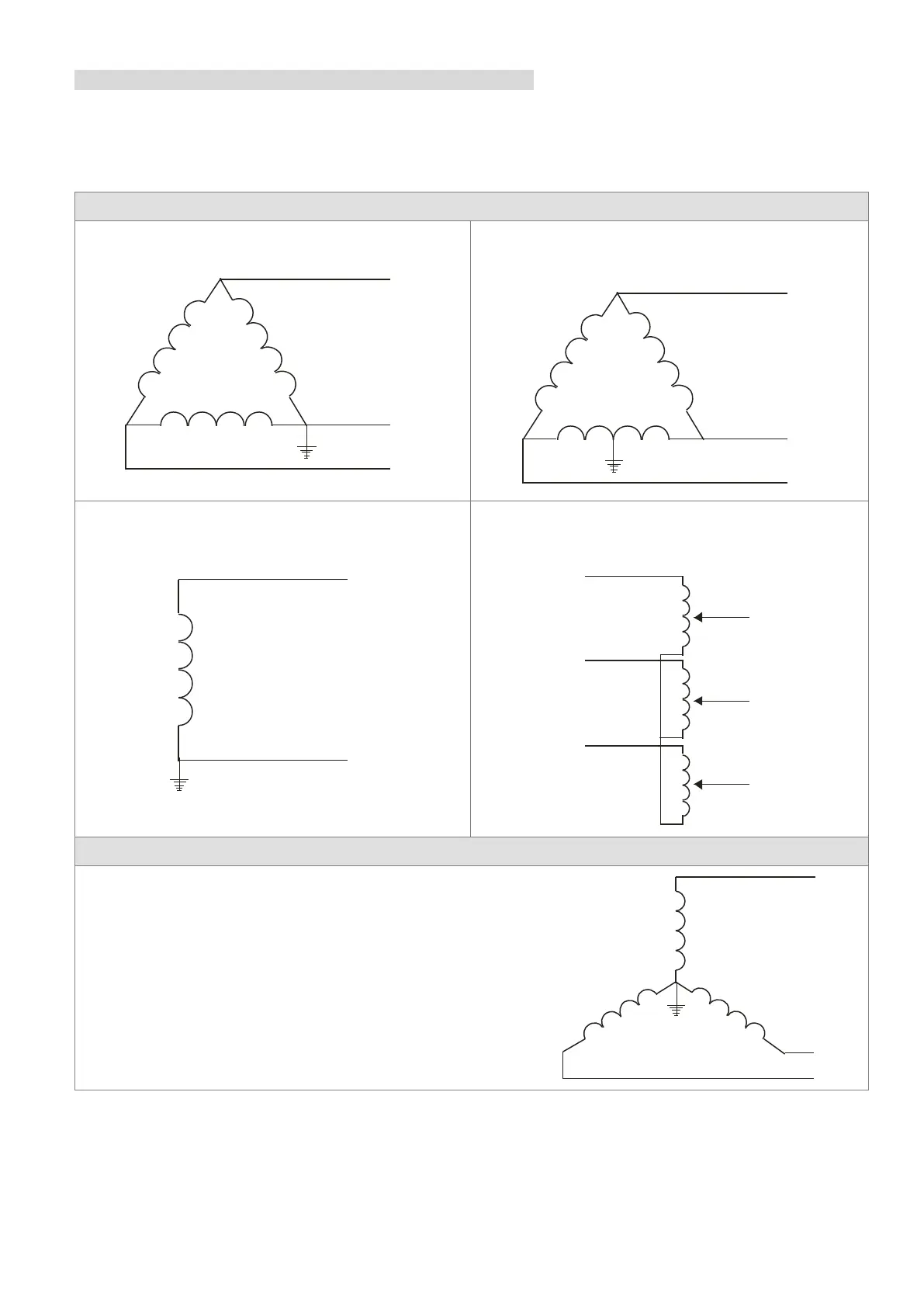

In the following four situations, you must remove the RFI jumper. This is to prevent the system from
grounding through the RFI and filter capacitors and damaging the drive.
You must remove the RFI jumper
1. Grounding at a corner in a triangle configuration
2. Grounding at a midpoint in a polygonal
configuration
3. Grounding at one end in a single-phase
configuration
4. No stable neutral grounding in a three-phase
autotransformer configuration
You can use the RFI jumper
Internal grounding through RFI capacitors that reduce
electromagnetic radiation. In a symmetrically grounding
power system with higher EMC requirements, install an
EMC filter. As a reference, the diagram on the right is a
symmetrical grounding power system.
