Chapter 9 Specification
ME300
9-11

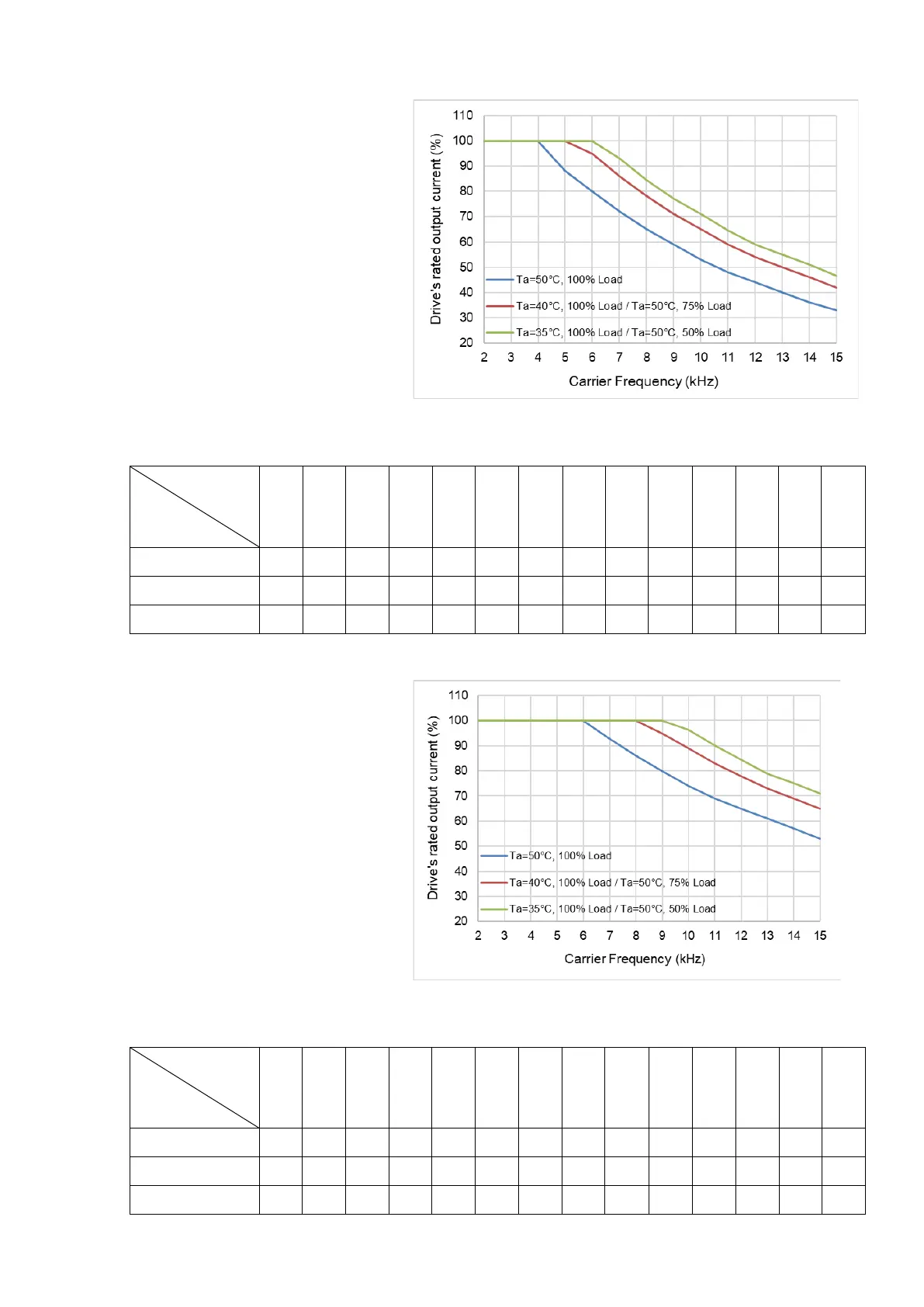

Heavy load (Pr.00-16 = 1)
 Space Vector Modulation Mode
(Pr.11-41 = 2)
Figure 9-6
The rated output current (%) of SVPWM in heavy load for different carrier frequencies:
Carrier
Freq.
Ambient
(kHz)
Temp. (Ta)
100% Load
2 3 4 5 6 7 8 9 10 11 12 13 14 15
50°C 100 100 100 88 80 72 65 59 53 48 44 40 36 33
40°C 100 100 100 100 95 86 78 71 65 59 54 50 46 42
35°C 100 100 100 100 100 93 84.5 77 71 64.5 59 55 51 46.5
Table 9-12
 Two-phase Modulation Mode
(Pr.11-41 = 0)
Figure 9-7
The rated output current (%) of DPWM in heavy load for different carrier frequencies:
Carrier
Freq.
Ambient
(kHz)
Temp. (Ta)
100% Load
2 3 4 5 6 7 8 9 10 11 12 13 14 15
50°C 100 100 100 100 100 93 86 80 74 69 65 61 57 53
40°C 100 100 100 100 100 100 100 95 89 83 78 73 69 65
35°C 100 100 100 100 100 100 100 100 96.5 90 84.5 79 75 71
Table 9-13
