Delta ME300 Series

Chapter 12 Description of Parameter Settings
ME300
12.1-02-9
Settings Functions Descriptions
97
Multi-pumps switch by
Hand / Auto mode
Use this terminal to switch between Hand / Auto mode.
98
Simple positioning stop
by forward limit
If the motor receives this signal while running forward, it stops
running forward.
99
Simple positioning stop
by reverse limit
If the motor receives this signal while running reverse, it stops
running reverse.

02-09
External terminal UP / DOWN Key Mode
Default: 0
Settings 0: By the acceleration / deceleration time
1: Constant speed (Pr.02-10)
2: Pulse signal (Pr.02-10)
3: Curve
4: Step (Pr.02-10)

02-10
External terminal Constant Speed, Acceleration / Deceleration Speed of the
UP / DOWN Key
Default: 0.001
Settings 0.001–1.000 Hz / ms
 Use when the multi-function input terminals are set to 19, 20 (UP / DOWN command).
The frequency increases or decreases according to Pr.02-09 and Pr.02-10.
 When Pr.11-00 bit 7=1, the frequency is not saved. The Frequency command returns to zero when
the drive stops, and the displayed frequency is 0.00 Hz. At this time, the increasing or decreasing
frequency command (F) by using the UP or DOWN key is valid only when the drive is running.

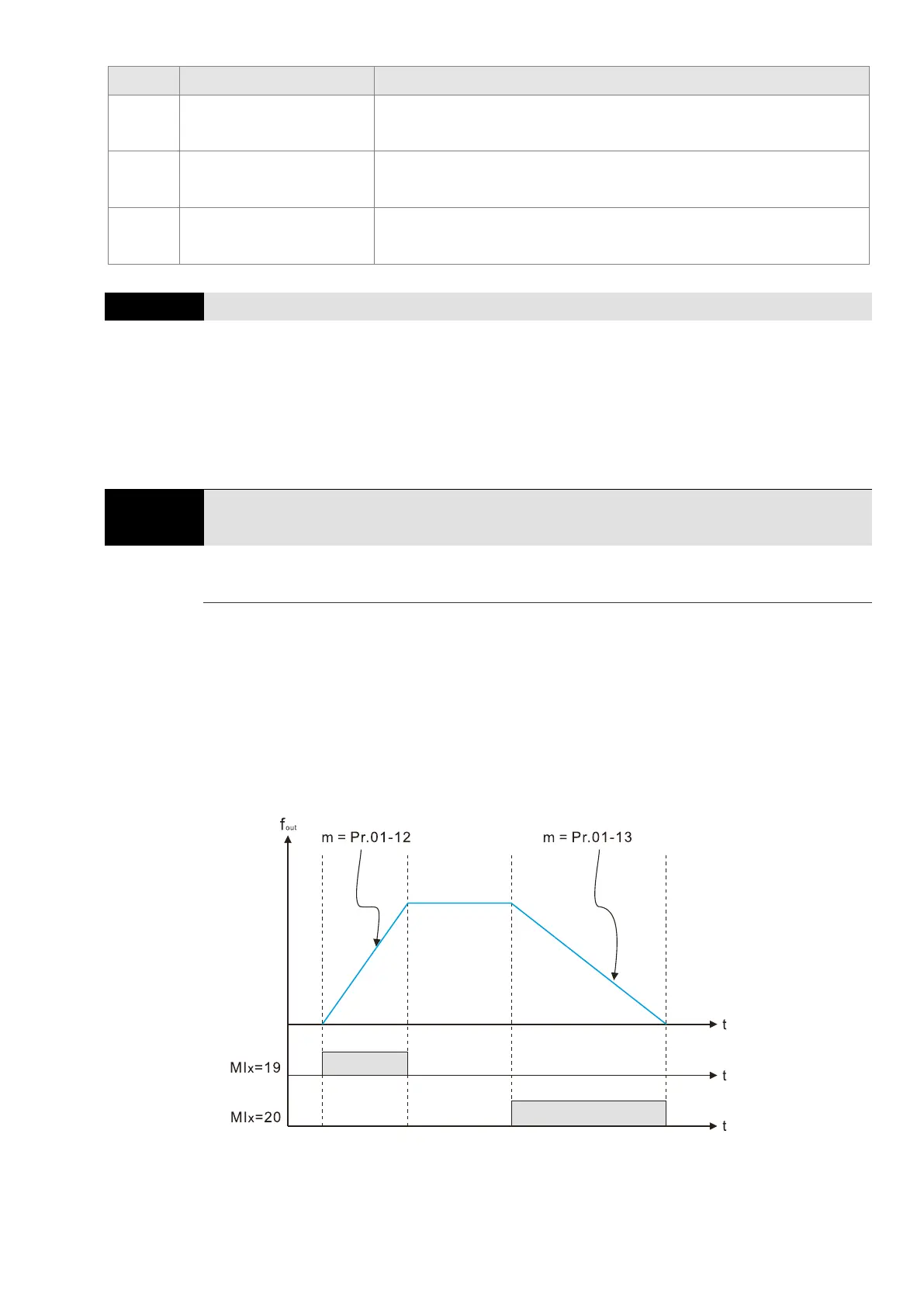

 When Pr.02-09 is set to 0: the increasing or decreasing frequency command (F) operates
according to the setting for acceleration or deceleration time (refer to Pr.01-12–01-19).
 When Pr.02-09 is set to 1: the increasing / decreasing frequency command (F) operates
according to the setting of Pr.02-10 (0.001–1.000 Hz/ms).
