Chapter 12 Description of Parameter Settings
ME300
12.1-09-3
(7, E, 1)
Even
parity
Start
bit
0
1
2
3
4 5
6
Stop
bit
7-data bits

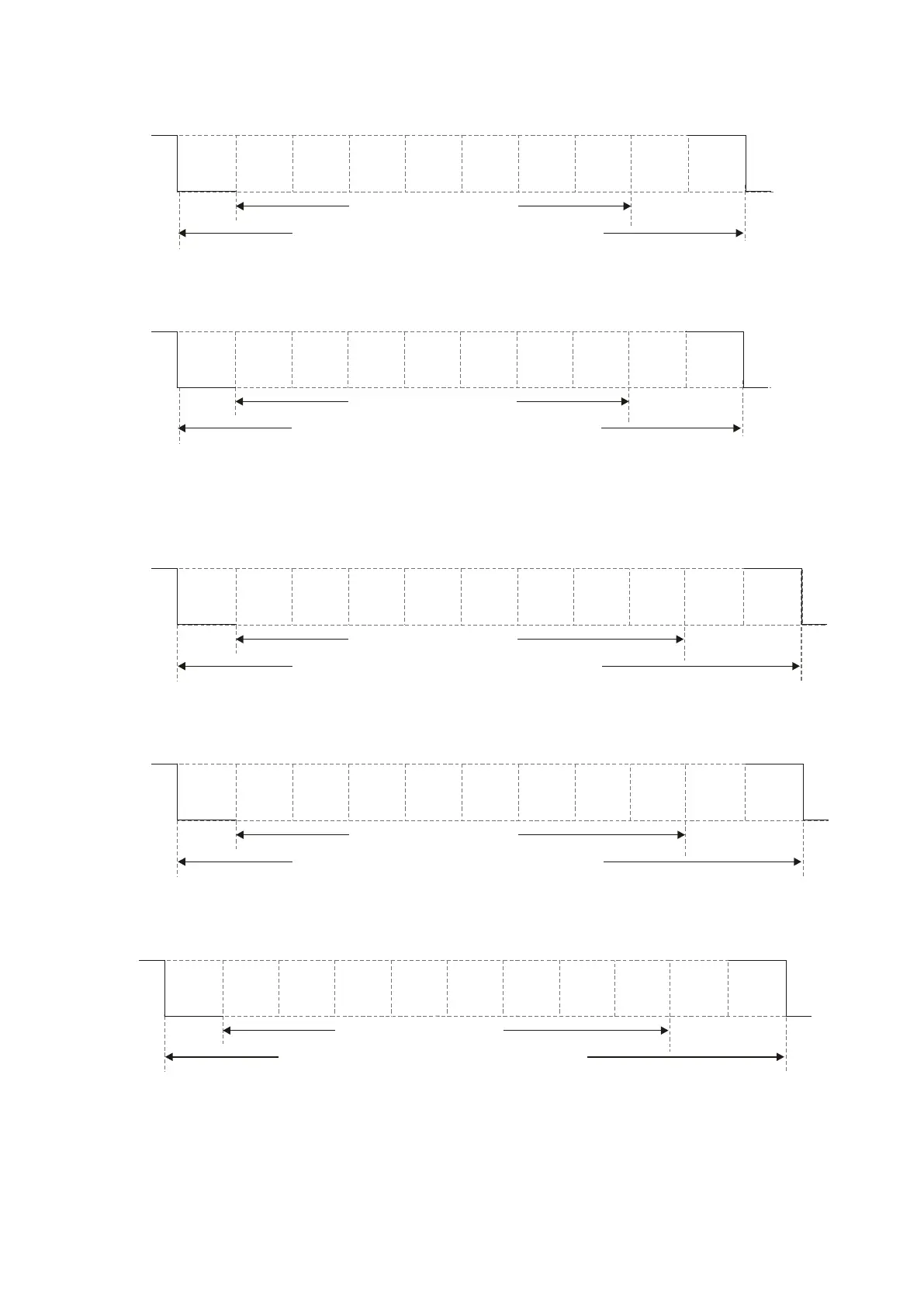

10-bits character frame
(7, O, 1)
Odd
parity
Start
bit
0 1 2
3 4
5
6
Stop
bit
7-data bits
10-bits character frame
11-bit character frame (For RTU):
(8, N, 2)
Start
bit
0
1 2
3 4 5 6
Stop
bit
8-data bits
11-bits character frame
Stop
bit
7
(8, E, 1)
Start
bit
0
1
2
3
4 5 6
Stop
bit
8-data bits
11-bits character frame
7
Even
parity
(8, O, 1)
Start
bit
0 1
2
3
4 5 6
Stop
bit
8-data bits
11-bits character frame
7
Odd
parity
