Chapter 7 Optional AccessoriesME300
7-32

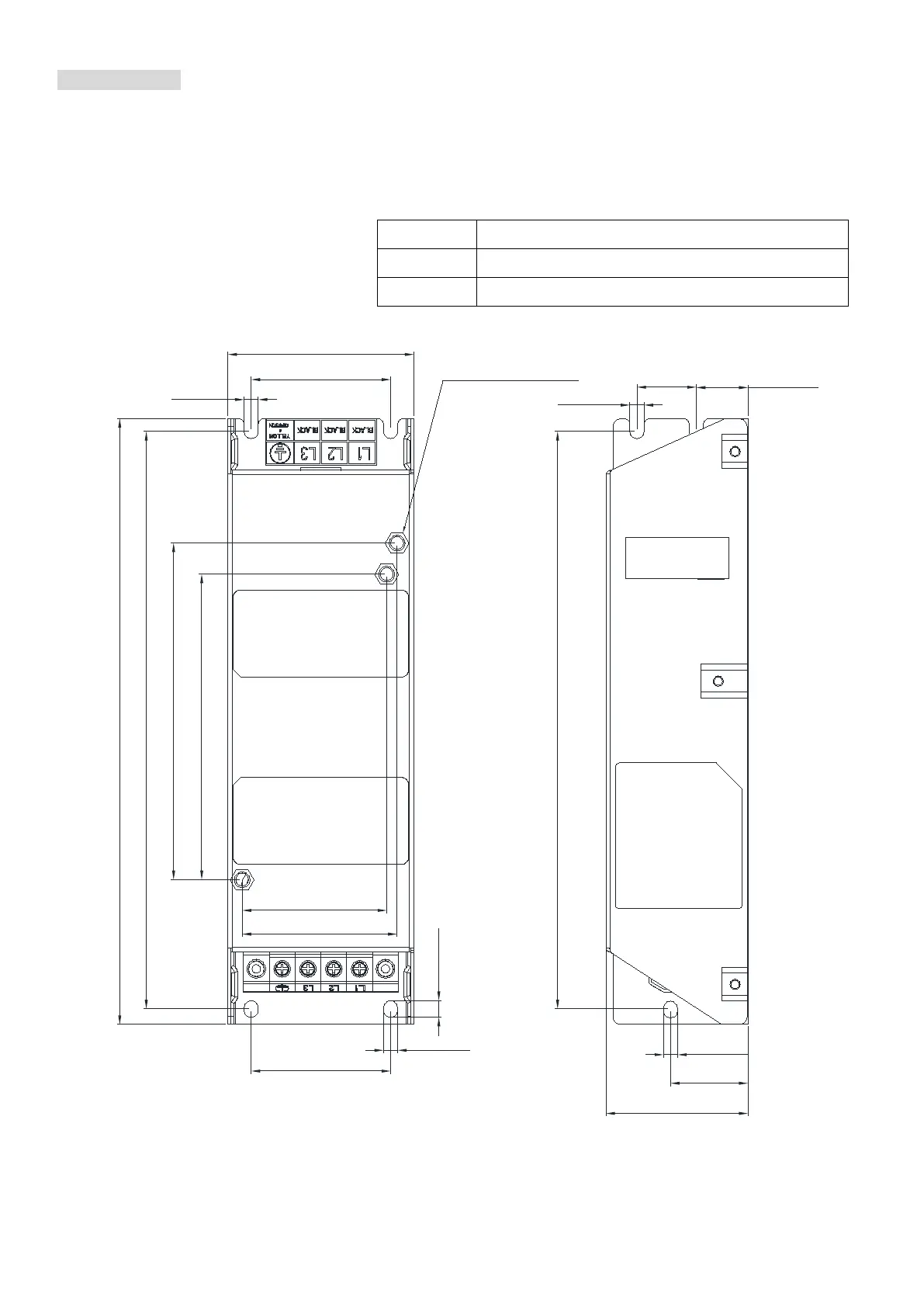

Filter Dimension
Frame A
EMF11AM21A
EMF10AM23A
EMF6A0M43A
Screw Torque
M5 * 2 16–18 kg-cm / [13.9–17.3 lb-in.] / [1.56–1.96 Nm]
M4 * 2 14–16 kg-cm / [12.2–13.8 lb-in.] / [1.38–1.56 Nm]
Table 7-35
Unit: mm [inch]
Figure 7-20
55.0 [2.17]
223.0 [8.78]
23.0 [0.91]
30.0 [1.18]
20.0 [0.79]
5.5 [0.22]
5.5 [0.22]
72.0 [2.83]
223.0 [8.78]
234.0 [9.21]
54.0 [2.13]
5.5 [0.22]
54.0 [2.13]
6.5 [0.26]
5.5 [0.22]
130.0 [5.12]
118.0 [4.65]
56.0 [2.20]
60.0 [2.36]
M5 screw
TORQUE:16-18kgf-cm
