MS300/MH300 PROFINET Communication Card CMM-PN02
CMM-PN02 Operation Manual
3. Recompile and download the PLC program.

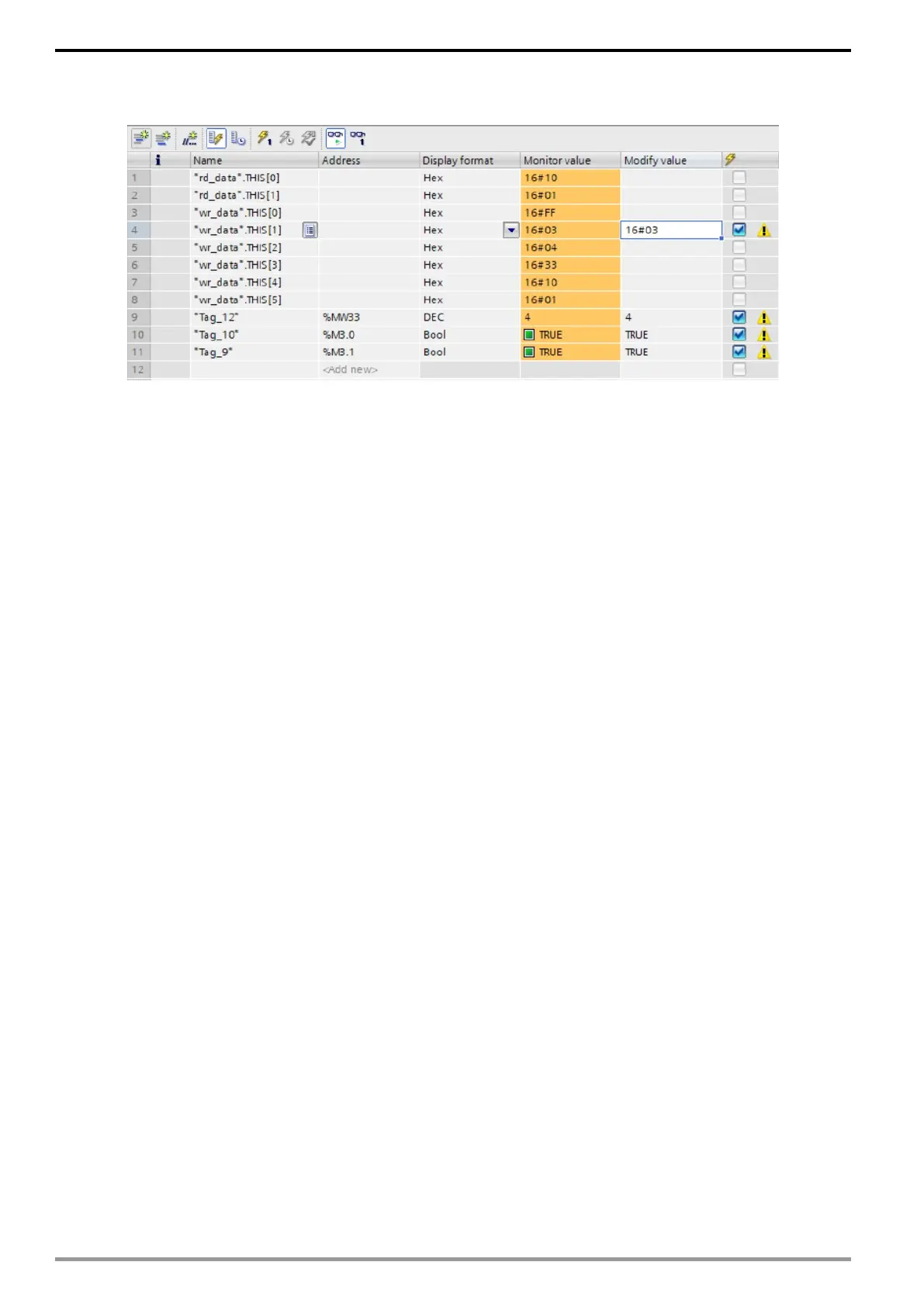

4. Test if the program is set up successfully via Watch Table. Refer to the figure below for setting.
NOTE 1: Before reading the parameters in the demonstration above, you need to call the WRREC function block to
write FF 03 YY YY to change the mode of the communication card. Then call the RDREC function block to
read the parameters of the motor drive (YY YY stands for the parameter group and the number, e.g.,
16#0433 is the Pr.04-51.).
NOTE 2: The user can set REQ to decide whether to read the parameter or not.
