Delta UNISAW User Manual

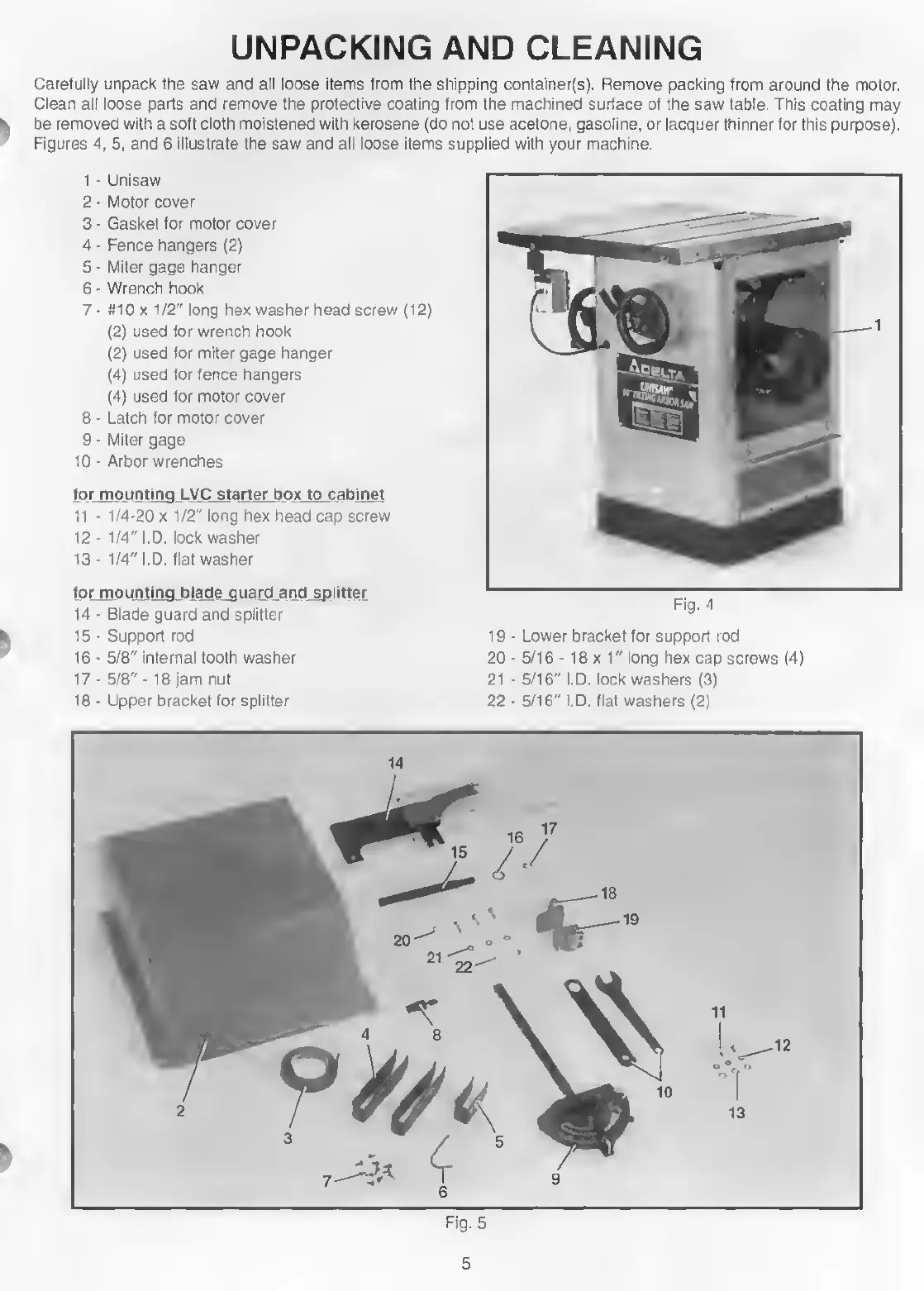

UNPACKING AND CLEANING
Carefully unpack the saw and all loose items from the shipping container(s). Remove packing from around the motor.
Clean all loose parts and remove the protective coating from the machined surface of the saw table. This coating may
be removed with a soft cloth moistened with kerosene (do not use acetone, gasoline, or lacquer thinner for this purpose).
Figures 4, 5, and 6 illustrate the saw and all loose items supplied with your machine.
1 - Unisaw
2 - Motor cover
3 - Gasket for motor cover
4 - Fence hangers (2)
5 - Miter gage hanger
6 - Wrench hook
7 - #10 x 1/2" long hex washer head screw (12)
(2) used for wrench hook
(2) used for miter gage hanger
(4) used for fence hangers
(4) used for motor cover
8 - Latch for motor cover
9 - Miter gage
10 - Arbor wrenches
for mounting LVCstartejibox tocabinet
11 - 1/4-20 x 1/2" long hex head cap screw
12 - 1/4" I.D. lock washer
13 - 1/4" I D. flat washer
for mounting blade guard and splitter
14 - Blade guard and splitter
15 - Support rod
16 - 5/8" internal tooth washer
17- 5/8"- 18 jam nut
18 - Upper bracket for splitter
Fig. 4
19 - Lower bracket for support rod
20 - 5/16 - 18 x 1" long hex cap screws (4)
21 - 5/16" I.D. lock washers (3)
22 - 5/16" I.D. flat washers (2)
Fig. 5
