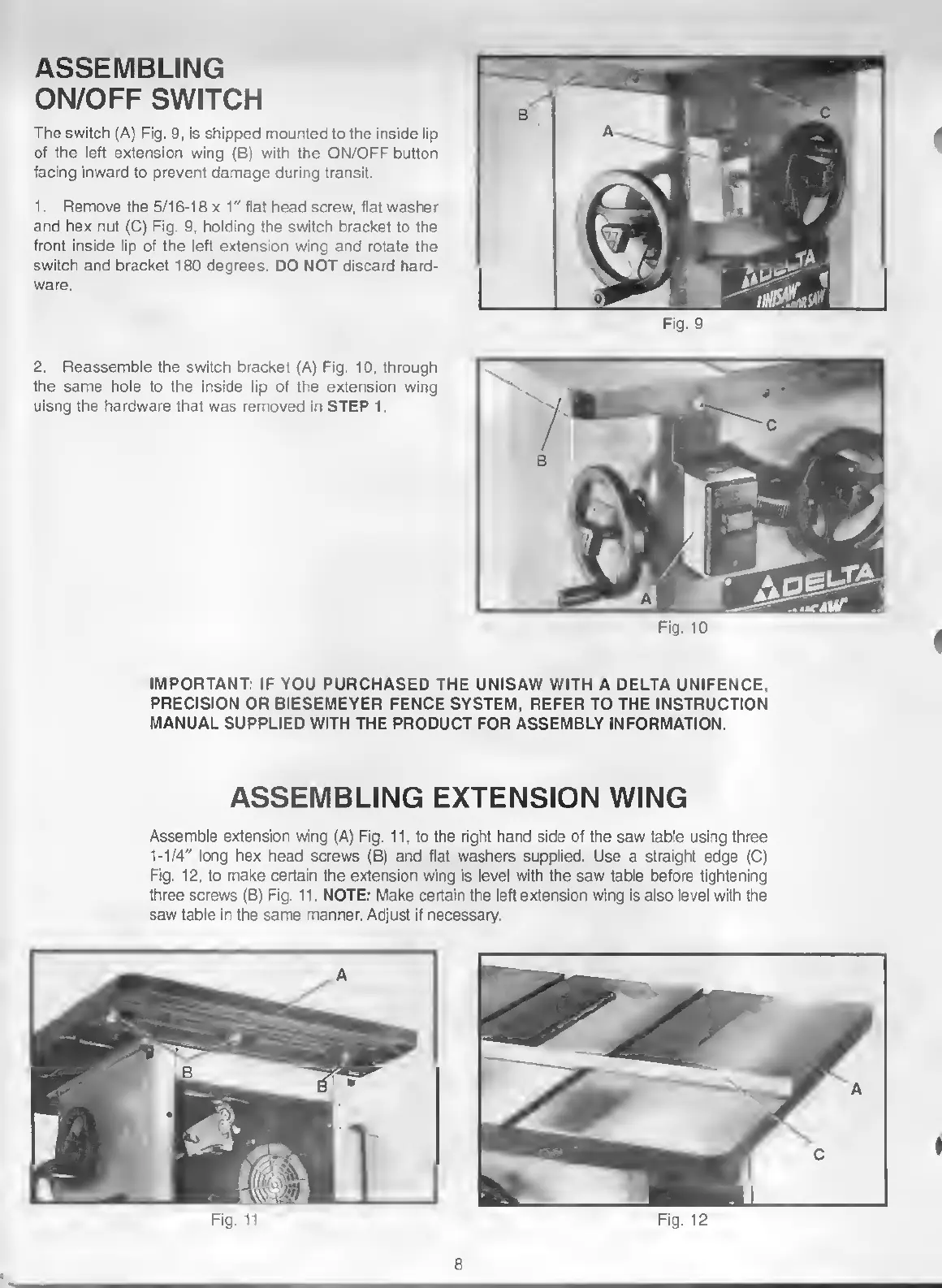

ASSEMBLING
ON/OFF SWITCH
The switch (A) Fig. 9, is shipped mounted to the inside lip
of the left extension wing (B) with the ON/OFF button
facing inward to prevent damage during transit.
1. Remove the 5/16-18x1" flat head screw, flat washer
and hex nut (C) Fig. 9, holding the switch bracket to the
front inside lip of the left extension wing and rotate the
switch and bracket 180 degrees. DO NOT discard hard¬
ware.
Fig. 9
4
2. Reassemble the switch bracket (A) Fig. 10, through
the same hole to the inside lip of the extension wing
uisng the hardware that was removed in STEP 1.
Fig. 10
«
IMPORTANT: IF YOU PURCHASED THE UNISAW WITH A DELTA UNIFENCE,
PRECISION OR BIESEMEYER FENCE SYSTEM, REFER TO THE INSTRUCTION
MANUAL SUPPLIED WITH THE PRODUCT FOR ASSEMBLY INFORMATION
ASSEMBLING EXTENSION WING
Assemble extension wing (A) Fig. 11, to the right hand side of the saw table using three
1-1/4" long hex head screws (B) and flat washers supplied. Use a straight edge (C)
Fig. 12, to make certain the extension wing is level with the saw table before tightening
three screws (B) Fig. 11. NOTE: Make certain the left extension wing is also level with the
saw table in the same manner. Adjust if necessary.
Fig. 11 Fig. 12
♦
