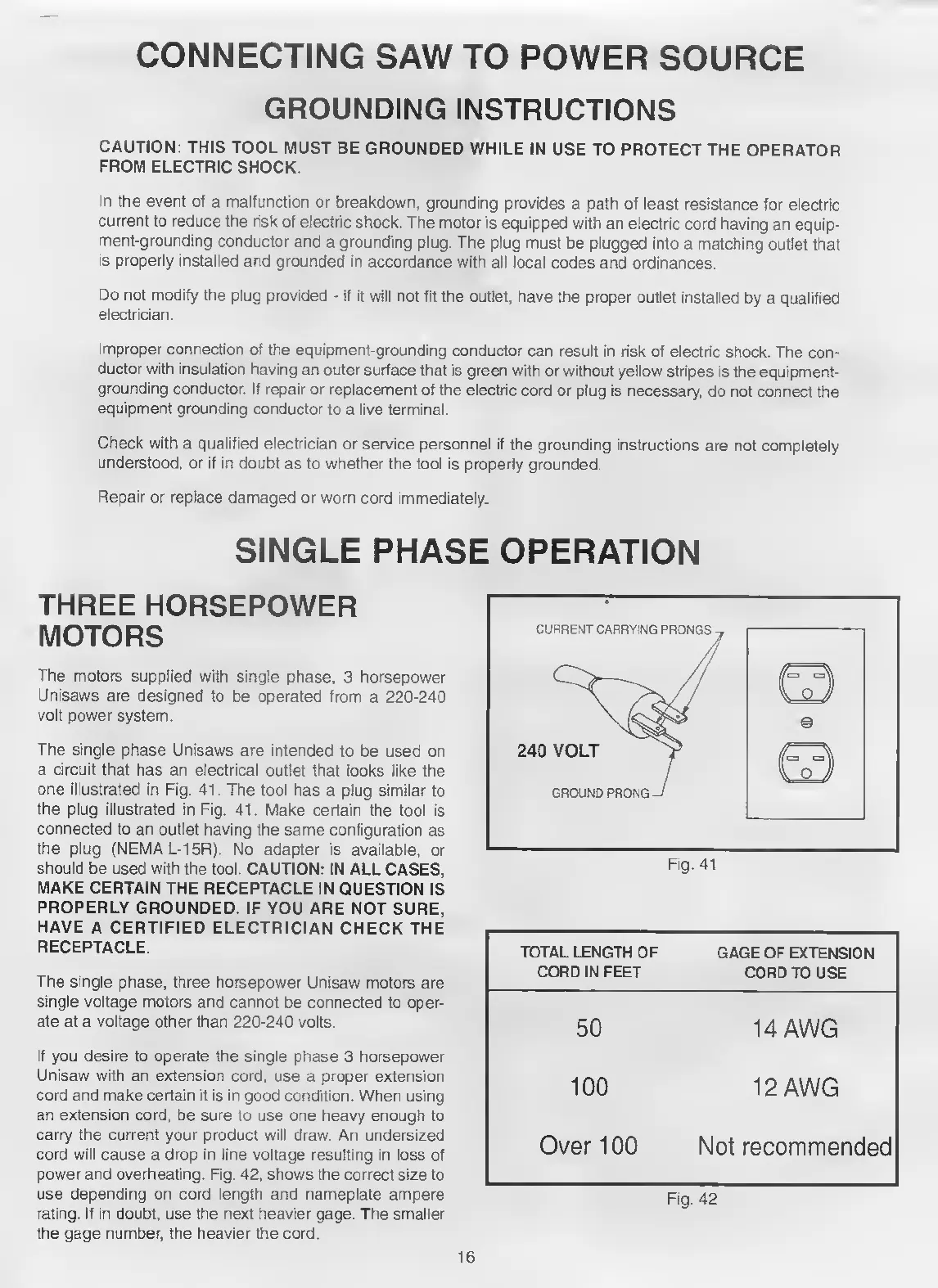

CONNECTING SAW TO POWER SOURCE
GROUNDING INSTRUCTIONS
CAUTION: THIS TOOL MUST BE GROUNDED WHILE IN USE TO PROTECT THE OPERATOR
FROM ELECTRIC SHOCK.
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. The motor is equipped with an electric cord having an equip¬
ment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that
is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided - if it will not fit the outlet, have the proper outlet installed by a qualified
electrician.
Improper connection of the equipment-grounding conductor can result in risk of electric shock. The con¬
ductor with insulation having an outer surface that is green with or without yellow stripes is the equipment¬
grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the
equipment grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the grounding instructions are not completely
understood, or if in doubt as to whether the tool is properly grounded.
Repair or replace damaged or worn cord immediately.
SINGLE PHASE OPERATION
THREE HORSEPOWER
MOTORS
The motors supplied with single phase, 3 horsepower
Unisaws are designed to be operated from a 220-240
volt power system.
The single phase Unisaws are intended to be used on
a circuit that has an electrical outlet that looks like the
one illustrated in Fig. 41. The tool has a plug similar to
the plug illustrated in Fig. 41. Make certain the tool is
connected to an outlet having the same configuration as
the plug (NEMAL-15R). No adapter is available, or
should be used with the tool. CAUTION: IN ALL CASES,
MAKE CERTAIN THE RECEPTACLE IN QUESTION IS
PROPERLY GROUNDED. IF YOU ARE NOT SURE,
HAVE A CERTIFIED ELECTRICIAN CHECK THE
RECEPTACLE.
The single phase, three horsepower Unisaw motors are
single voltage motors and cannot be connected to oper¬
ate at a voltage other than 220-240 volts.
If you desire to operate the single phase 3 horsepower
Unisaw with an extension cord, use a proper extension
cord and make certain it is in good condition. When using
an extension cord, be sure to use one heavy enough to
carry the current your product will draw. An undersized
cord will cause a drop in line voltage resulting in loss of
power and overheating. Fig. 42, shows the correct size to
use depending on cord length and nameplate ampere
rating. If in doubt, use the next heavier gage. The smaller
the gage number, the heavier the cord.
TOTAL LENGTH OF
CORD IN FEET
GAGE OF EXTENSION
CORD TO USE
50
14AWG
100
12AWG
Over 100
Not recommended
Fig. 42
16
