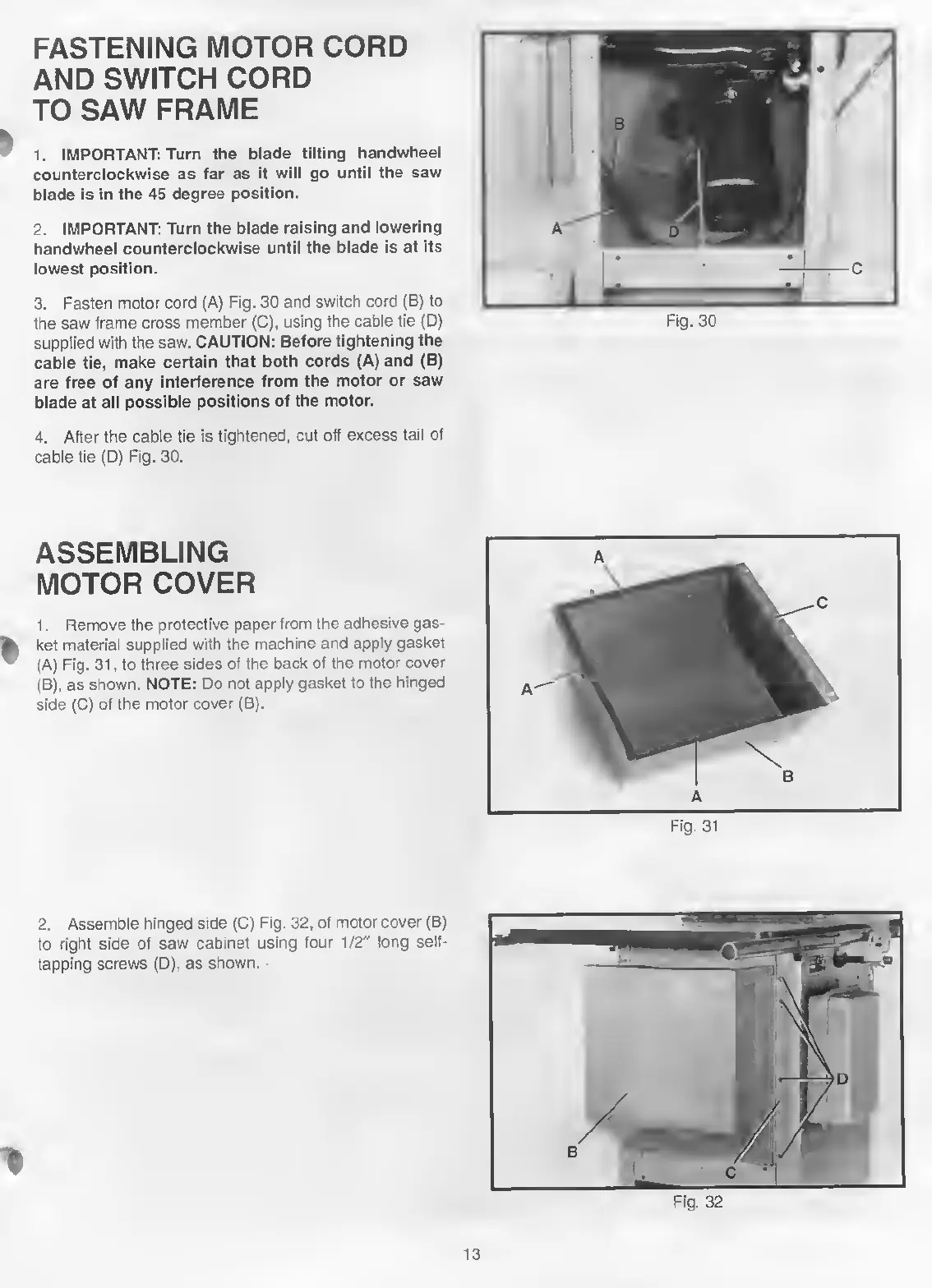

FASTENING MOTOR CORD
AND SWITCH CORD
TO SAW FRAME
1. IMPORTANT: Turn the blade tilting handwheel
counterclockwise as far as it will go until the saw
blade is in the 45 degree position.
2. IMPORTANT: Turn the blade raising and lowering
handwheel counterclockwise until the blade is at its
lowest position.
3. Fasten motor cord (A) Fig. 30 and switch cord (B) to
the saw frame cross member (C). using the cable tie (D)
supplied with the saw. CAUTION: Before tightening the
cable tie, make certain that both cords (A) and (B)
are free of any interference from the motor or saw
blade at all possible positions of the motor.
4. After the cable tie is tightened, cut off excess tail of
cable tie (D) Fig. 30.
Fig. 30
ASSEMBLING
MOTOR COVER
1. Remove the protective paper from the adhesive gas¬
ket material supplied with the machine and apply gasket
(A) Fig. 31, to three sides of the back of the motor cover
(B) , as shown. NOTE: Do not apply gasket to the hinged
side (C) of the motor cover (B).
2. Assemble hinged side (C) Fig. 32, of motor cover (B)
to right side of saw cabinet using four 1/2" long self¬
tapping screws (D), as shown.
Fig. 32
13
