Delta UNISAW User Manual

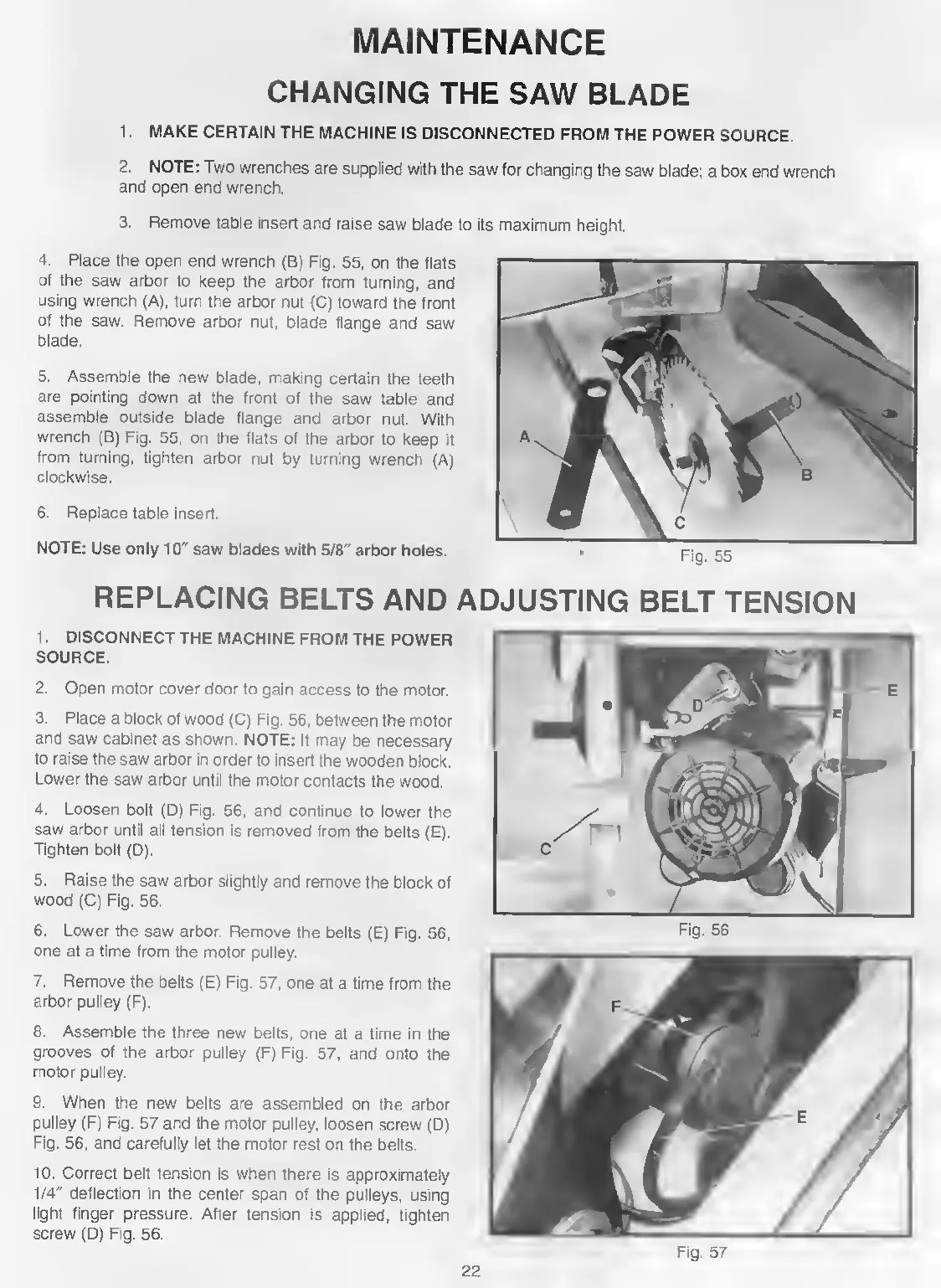

MAINTENANCE
CHANGING THE SAW BLADE
1 MAKE CERTAIN THE MACHINE IS DISCONNECTED FROM THE POWER SOURCE
2. N OTE: Two wrenches are supplied with the saw for changing the saw blade; a box end wrench
and open end wrench.
3. R emove table insert and raise saw blade to its maximum height.
REPLACING BELTS AND ADJUSTING BELT TENSION
1 DISCONNECT THE MACHINE FROM THE POWER
SOURCE
2. O pen motor cover door to gain access to the motor.
3. P lace a block of wood (C) Fig. 56. between the motor
and saw cabinet as shown. NOTE: It may be necessary
to raise the saw arbor in order to insert the wooden block.
Lower the saw arbor until the motor contacts the wood.
4. L oosen bolt (D) Fig. 56, and continue to lower the
saw arbor until all tension is removed from the belts (E).
Tighten bolt (D).
5. R aise the saw arbor slightly and remove the block of
wood (C) Fig. 56.
7. R emove the belts (E) Fig. 57, one at a time from the
arbor pulley (F).
8. A ssemble the three new belts, one at a time in the
grooves of the arbor pulley (F) Fig. 57, and onto the
motor pulley.
9. W hen the new belts are assembled on the arbor
pulley (F) Fig. 57 and the motor pulley, loosen screw (D)
Fig. 56, and carefully let the motor rest on the belts.
10. C orrect belt tension is when there is approximately
1/4" deflection in the center span of the pulleys, using
light finger pressure. After tension is applied, tighten
screw (D) Fig. 56.
4. P lace the open end wrench (B) Fig. 55, on the flats
of the saw arbor to keep the arbor from turning, and
using wrench (A), turn the arbor nut (C) toward the front
of the saw. Remove arbor nut, blade flange and saw
blade.
5. Assemble the new blade, making certain the teeth
are pointing down at the front of the saw table and
assemble outside blade flange and arbor nut. With
wrench (B) Fig. 55, on the flats of the arbor to keep it
from turning, tighten arbor nut by turning wrench (A)
clockwise.
6. Replace table insert.
NOTE: Use only 10" saw blades with 5/8" arbor holes.
6. L ower the saw arbor. Remove the belts (E) Fig. 56,
one at a time from the motor pulley.
Fig. 56
Fig. 55
22
Fig. 57
