Delta UNISAW - Assembling Miter Gage and Wrench Holder Brackets.14

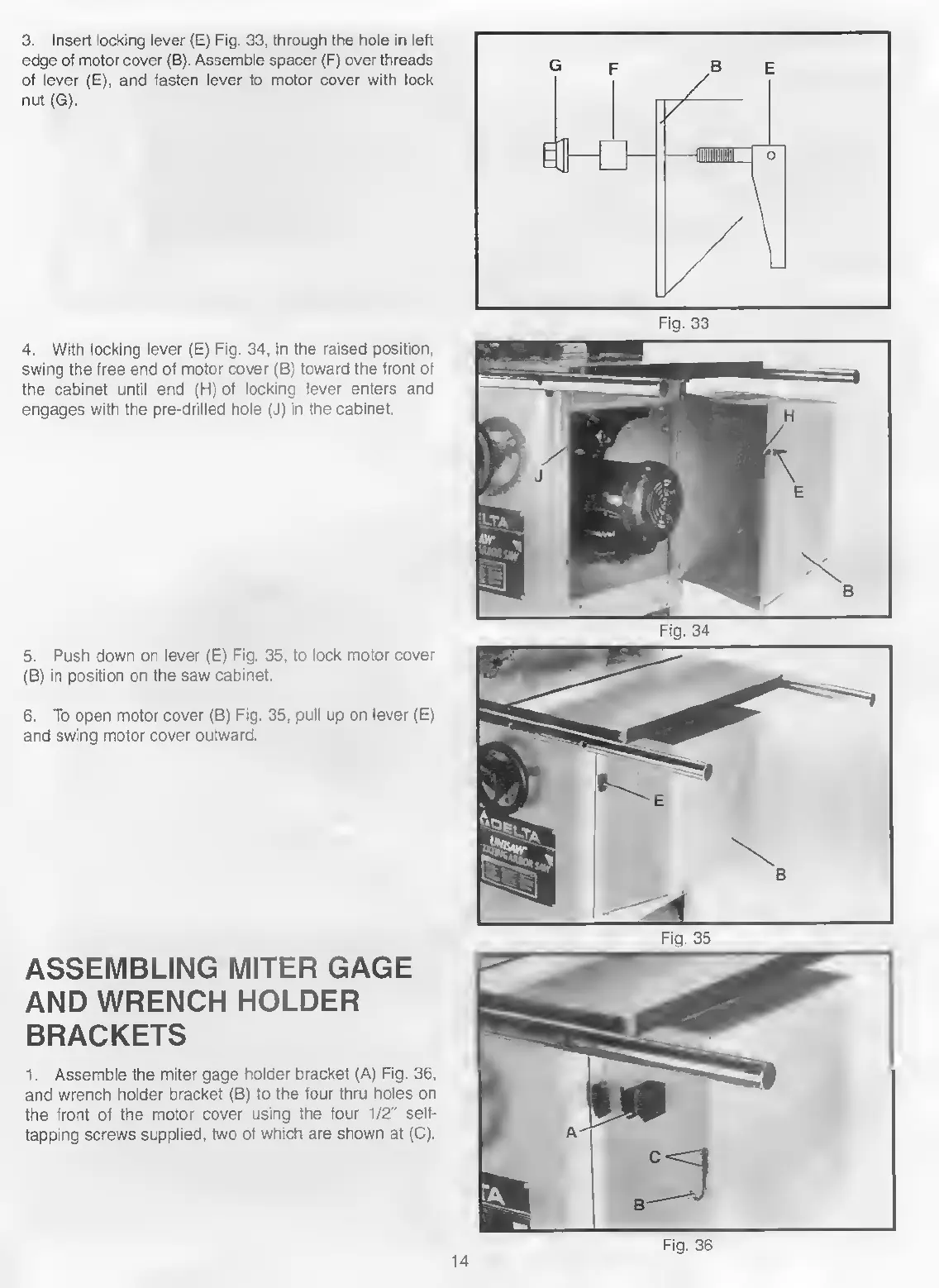

3. I nsert locking lever (E) Fig. 33, through the hole in left
edge of motor cover (B). Assemble spacer (F) over threads
of lever (E), and fasten lever to motor cover with lock
nut (G).
4. W ith locking lever (E) Fig. 34, in the raised position,
swing the free end of motor cover (B) toward the front of
the cabinet until end (H) of locking lever enters and
engages with the pre-drilled hole (J) in the cabinet.
5. Push down on lever (E) Fig. 35, to lock motor cover
(B) in position on the saw cabinet.
6. To open motor cover (B) Fig. 35, pull up on lever (E)
and swing motor cover outward.
ASSEMBLING MITER GAGE
AND WRENCH HOLDER
BRACKETS
1. Assemble the miter gage holder bracket (A) Fig. 36,
and wrench holder bracket (B) to the four thru holes on
the front of the motor cover using the four 1/2" self¬
tapping screws supplied, two of which are shown at (C).
Fig. 33
Fig. 34
Fig. 35
14
Fig. 36
