Delta UNISAW User Manual

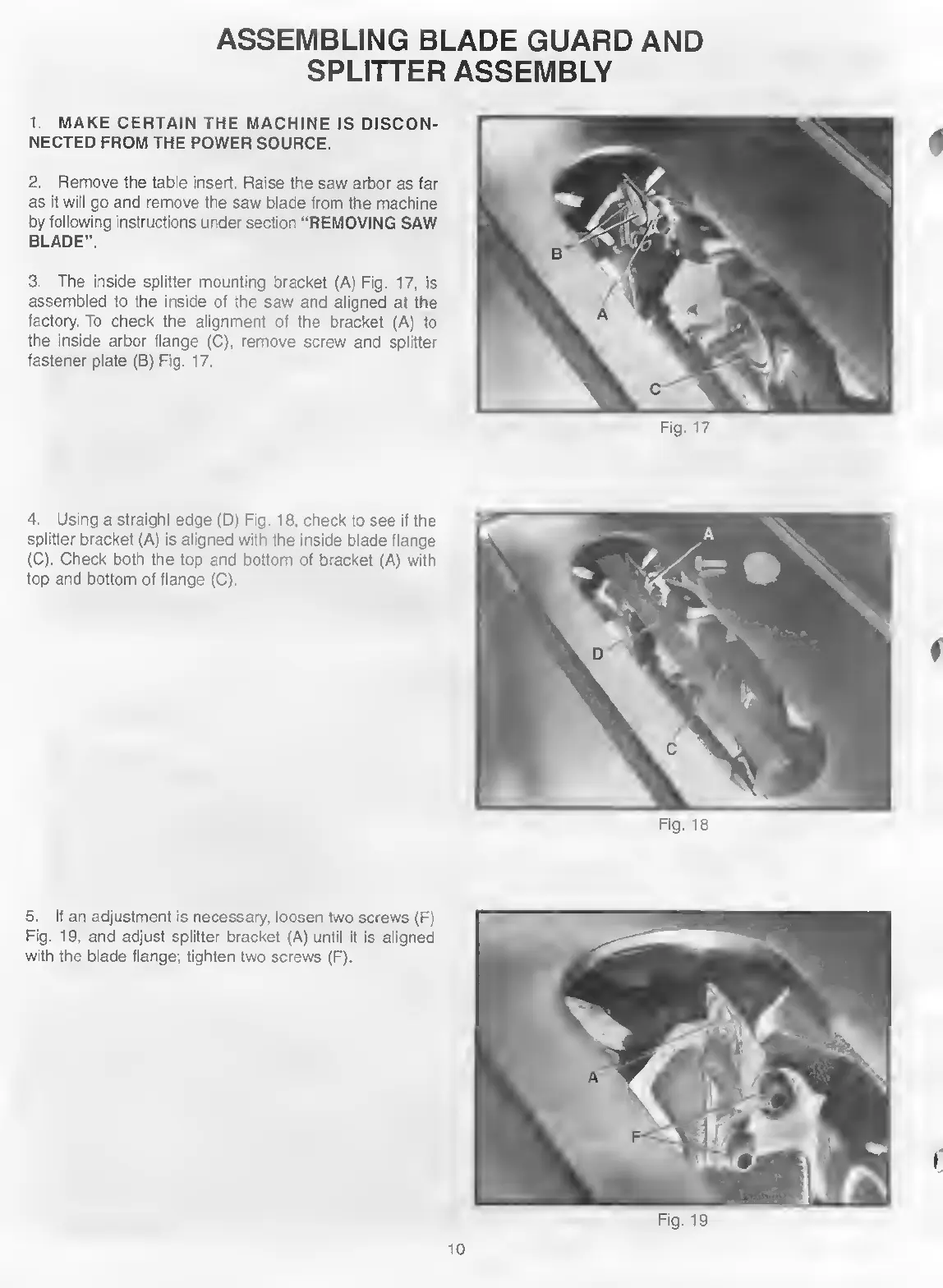

ASSEMBLING BLADE GUARD AND
SPLITTER ASSEMBLY
1. MAKE CERTAIN THE MACHINE IS DISCON¬
NECTED FROM THE POWER SOURCE.
2. Remove the table insert. Raise the saw arbor as far
as it will go and remove the saw blade from the machine
by following instructions under section “REMOVING SAW
BLADE’’.
3. The inside splitter mounting bracket (A) Fig. 17, is
assembled to the inside of the saw and aligned at the
factory. To check the alignment of the bracket (A) to
the inside arbor flange (C), remove screw and splitter
fastener plate (B) Fig. 17.
Fig. 17
4. U sing a straight edge (D) Fig. 18, check to see if the
splitter bracket (A) is aligned with the inside blade flange
(C). Check both the top and bottom of bracket (A) with
top and bottom of flange (C).
Fig. 18
5. I f an adjustment is necessary, loosen two screws (F)
Fig. 19, and adjust splitter bracket (A) until it is aligned
with the blade flange; tighten two screws (F).
Fig. 19
10
