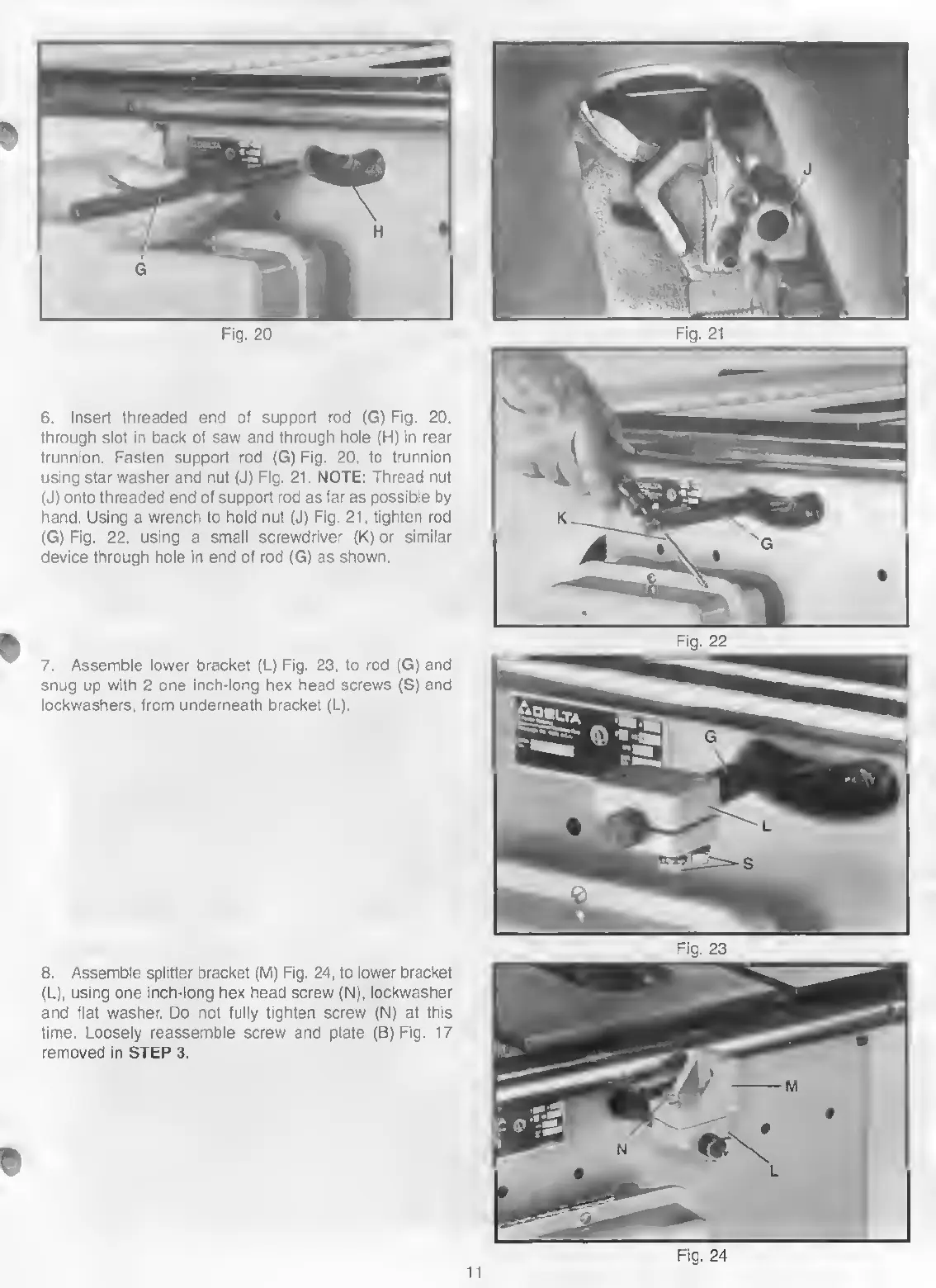

6.
Insert
threaded
end
of
support
rod
(G)
Fig.
20,
through
slot
in
back
of
saw
and
through
hole
(H)
in
rear
trunnion.
Fasten
support
rod
(G)
Fig.
20,
to
trunnion
using
star
washer
and
nut
(J)
Fig.
21.
NOTE:
Thread
nut
(J)
onto
threaded
end
of
support
rod
as
far
as
possible
by
hand.
Using
a
wrench
to
hold
nut
(J)
Fig.
21,
tighten
rod
(G)
Fig.
22,
using
a
small
screwdriver
(K)
or
similar
device
through
hole
in
end
of
rod
(G)
as
shown.
8.
Assemble
splitter
bracket
(M)
Fig.
24,
to
lower
bracket
(L),
using
one
inch-long
hex
head
screw
(N),
lockwasher
and
flat
washer.
Do
not
fully
tighten
screw
(N)
at
this
time.
Loosely
reassemble
screw
and
plate
(B)
Fig.
17
removed
in
STEP
3.
Fig.
20
7.
Assemble
lower
bracket
(L)
Fig.
23,
to
rod
(G)
and
snug
up
with
2
one
inch-long
hex
head
screws
(S)
and
lockwashers,
from
underneath
bracket
(L).
--
11
