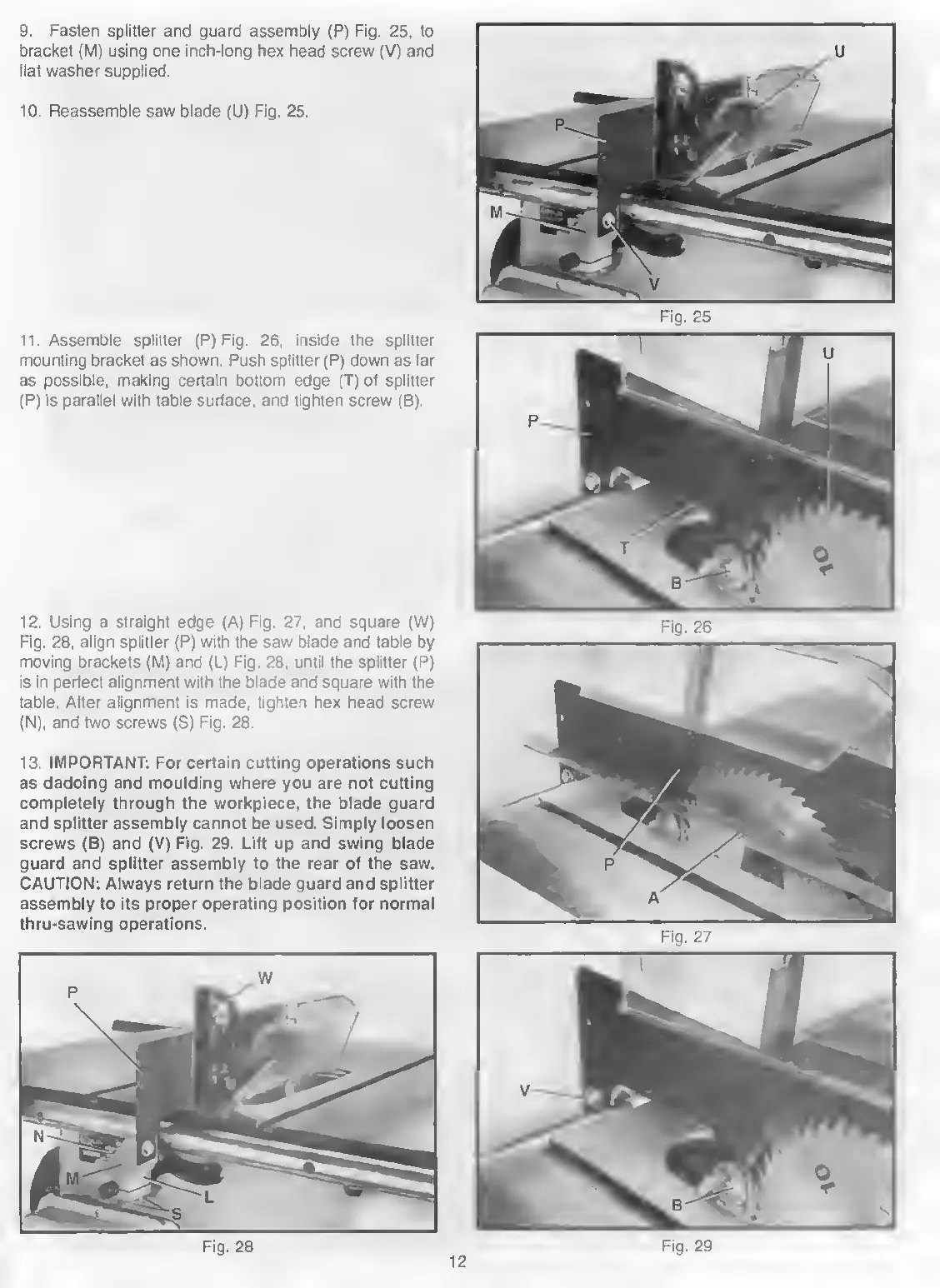

9. Fasten splitter and guard assembly (P) Fig. 25, to
bracket (M) using one inch-long hex head screw (V) and
flat washer supplied.
10. Reassemble saw blade (U) Fig. 25.
11. A ssemble splitter (P) Fig. 26, inside the splitter
mounting bracket as shown. Push splitter (P) down as far
as possible, making certain bottom edge (T) of splitter
(P) is parallel with table surface, and tighten screw (B).
12. Using a straight edge (A) Fig. 27, and square (W)
Fig. 28, align splitter (P) with the saw blade and table by
moving brackets (M) and (L) Fig. 28, until the splitter (P)
is in perfect alignment with the blade and square with the
table. After alignment is made, tighten hex head screw
(N), and two screws (S) Fig. 28.
13. IMPORTANT: For certain cutting operations such
as dadoing and moulding where you are not cutting
completely through the workpiece, the blade guard
and splitter assembly cannot be used. Simply loosen
screws (B) and (V) Fig. 29. Lift up and swing blade
guard and splitter assembly to the rear of the saw.
CAUTION: Always return the blade guard and splitter
assembly to its proper operating position for normal
thru-sawing operations.
Fig. 25
Fig. 26
Fig. 27
Fig. 28
12
Fig. 29
