Delta UNISAW User Manual

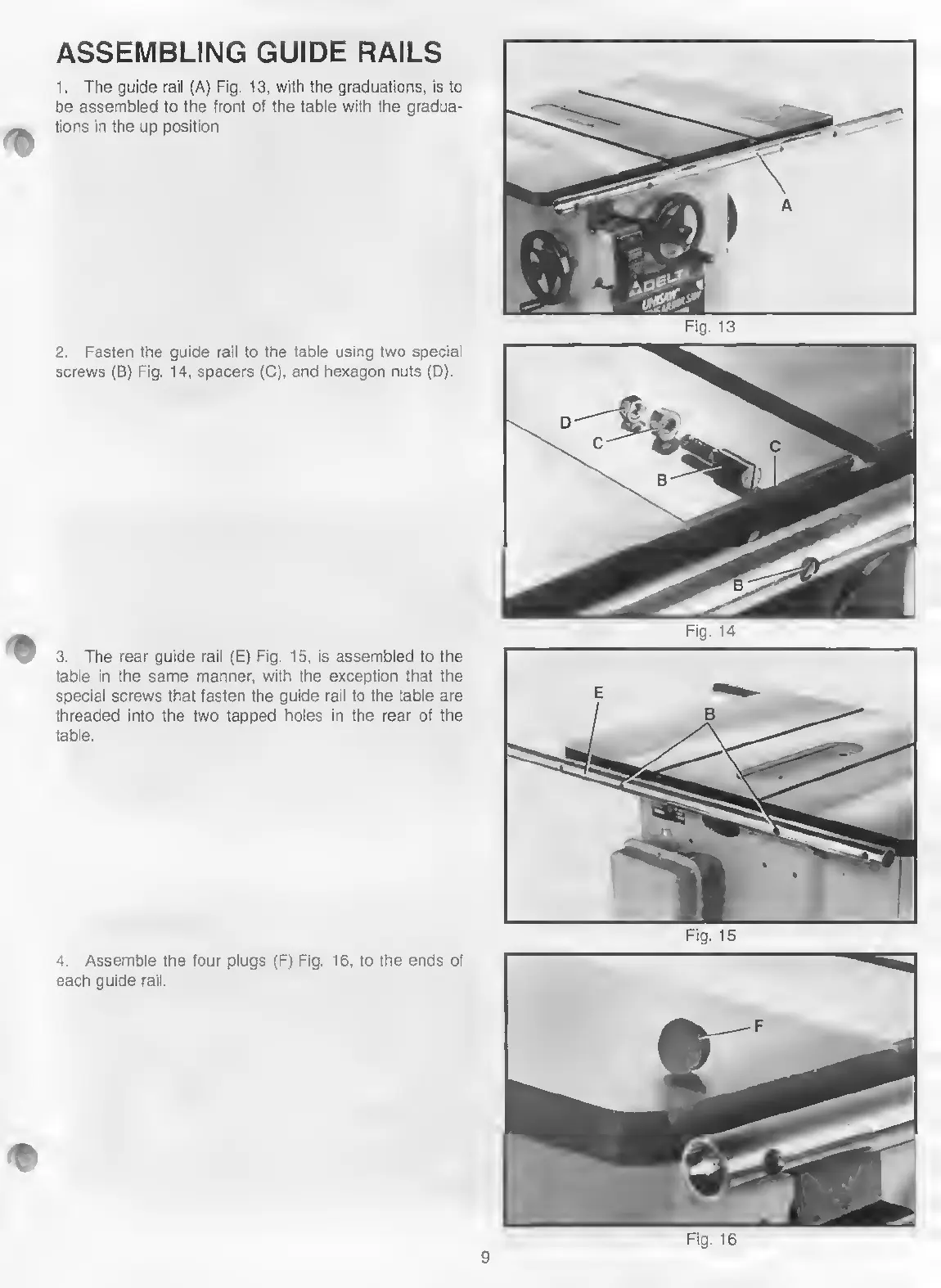

ASSEMBLING GUIDE RAILS
1. The guide rail (A) Fig. 13, with the graduations, is to
be assembled to the front of the table with the gradua¬
tions in the up position
2. Fasten the guide rail to the table using two special
screws (B) Fig. 14, spacers (C), and hexagon nuts (D).
3. The rear guide rail (E) Fig. 15, is assembled to the
table in the same manner, with the exception that the
special screws that fasten the guide rail to the table are
threaded into the two tapped holes in the rear of the
table.
4. Assemble the four plugs (F) Fig. 16, to the ends of
each guide rail.
Fig. 13
Fig. 15
9
Fig. 16
