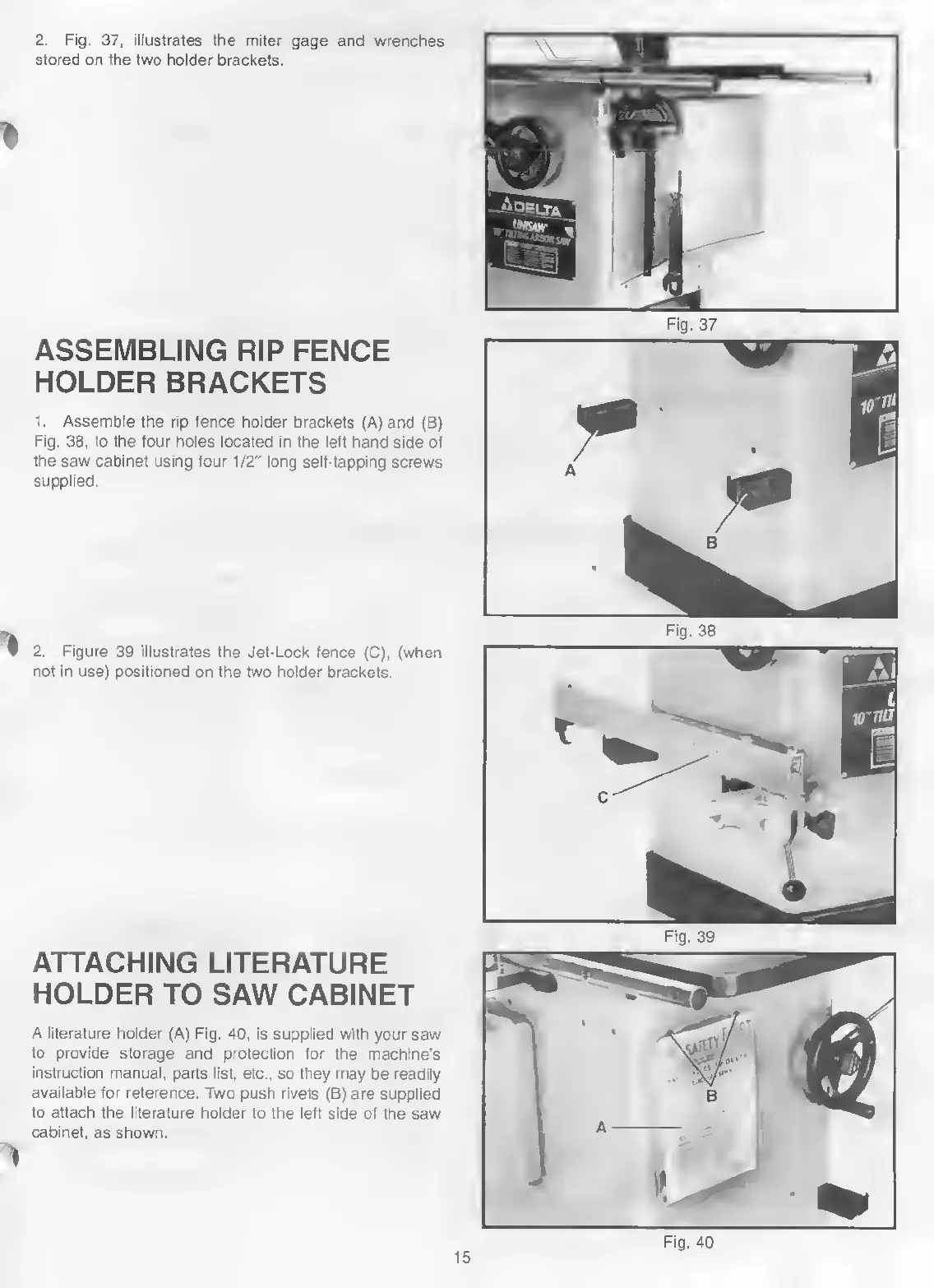

2. Fig. 37, illustrates the miter gage and wrenches
stored on the two holder brackets.
ASSEMBLING RIP FENCE
HOLDER BRACKETS
1. Assemble the rip fence holder brackets (A) and (B)
Fig. 38, to the four holes located in the left hand side of
the saw cabinet using four 1/2" long self-tapping screws
supplied.
2. Figure 39 illustrates the Jet-Lock fence (C), (when
not in use) positioned on the two holder brackets.
ATTACHING LITERATURE
HOLDER TO SAW CABINET
A literature holder (A) Fig. 40, is supplied with your saw
to provide storage and protection for the machine’s
instruction manual, parts list, etc., so they may be readily
available for reference. Two push rivets (B) are supplied
to attach the literature holder to the left side of the saw
cabinet, as shown.
1
Fig. 37
Fig. 38
Fig. 39
15
Fig. 40
