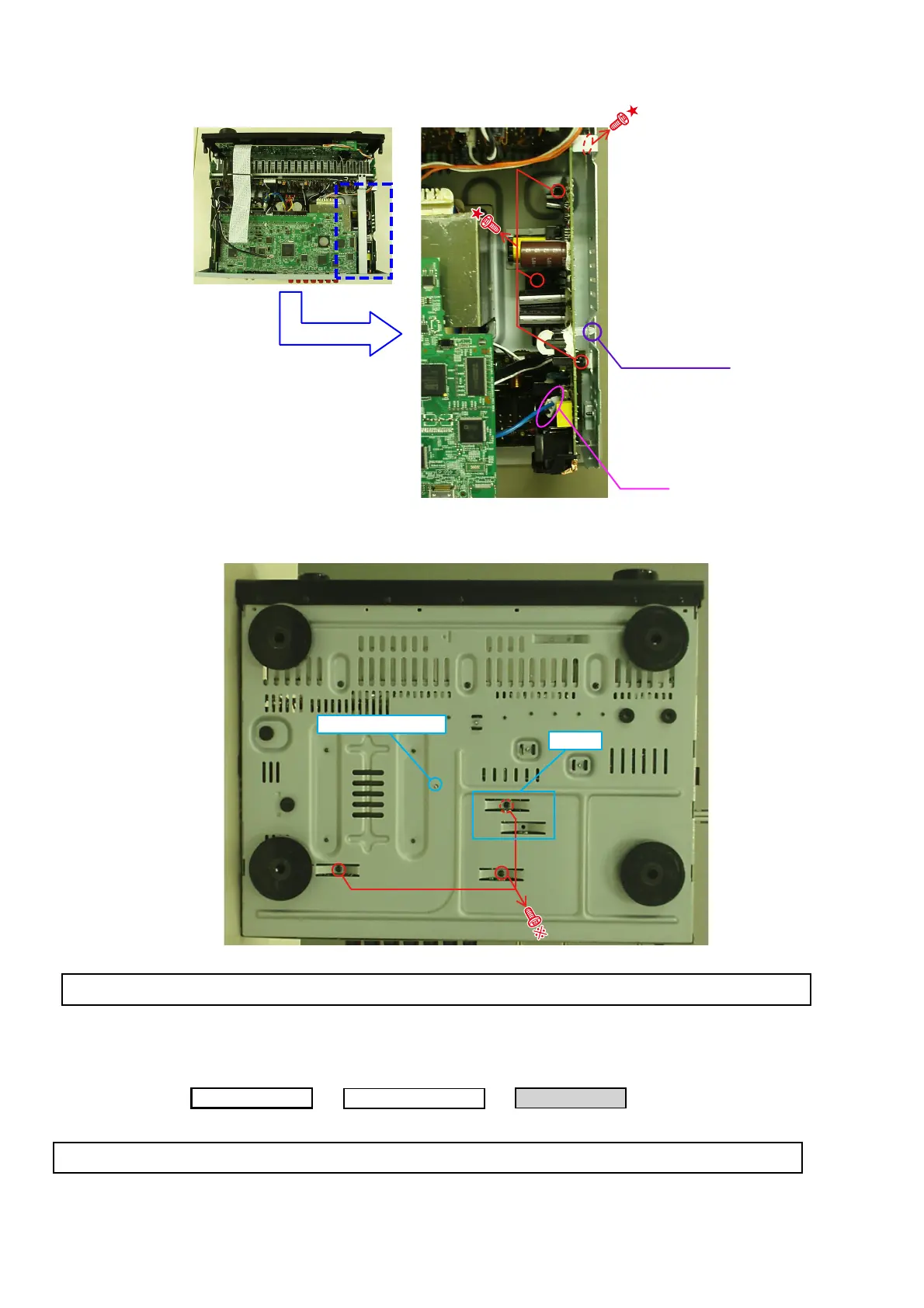

(5) Disconnect the connector wire, then remove the screws and the SUPPORTER P.C..

(6) Remove the Sheet, then remove the screws and SUPPORTER P.C..

Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in HDMI UNIT ASSY.

5. TRANS MAIN

Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in TRANS MAIN.

CX102

SUPPORTER P.C.

View from bottom

SUPPORTER P.C.

Sheet

CABINET TOP

TRANS MAIN

→

Proceeding :

HDMI UNIT ASSY

→

AVR-2311CI/AVR-2311/AVR-8911
SAFETY2
NOTE FOR SCHEMATIC DIAGRAM3
NOTE FOR PARTS LIST3
TECHNICAL SPECIFICATIONS4
DIMENSION5
CAUTION IN SERVICING6
- Initializing AV SURROUND RECEIVER6
- Service Jigs6
DISASSEMBLY7
- 1. FRONT PANEL ASSY8
- 2. HEAT SINK ASSY9
- 3. PCB REG CNT/PCB REG11
- 4. HDMI UNIT ASSY12
- 5. TRANS MAIN14
SPECIAL MODE16
- Special mode setting button16
- 1. μcom/DSP Version display mode17
- 2. Errors checking mode (Displaying the protection history)19
- 3. DIAGNOSTIC MODE (Video/Audio (signal) path confi rmation mode)21
BLOCK DIAGRAM26
JIG FOR SERVICING47
ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE50
VERSION UPGRADE PROCEDURE OF FIRMWARE50
SURROUND MODES AND PARAMETERS54
ADJUSTMENT58
TROUBLE SHOOTING59
- 1. POWER59
- 2. Analog video60
- 3. HDMI/DVI.65
- 4. AUDIO76
CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK79
LEVEL DIAGRAM80
PRINTED WIRING BOARDS86
SCHEMATIC DIAGRAMS103
- (1/36) AMP B'D 1/2103
- (2/36) AMP B'D 2/2104
- (3/36) SPK_SMPS 1/2105
- (4/36) SPK_SMPS 2/2106
- (5/36) REG_SIRIUS_COMMON CNT 1/4107
- (6/36) REG_SIRIUS_COMMON CNT 2/4108
- (7/36) REG_SIRIUS_COMMON CNT 3/4109
- (8/36) REG_SIRIUS_COMMON CNT 4/4110
- (9/36) AUDIO111
- (10/36)112
- (11/36)113
- (12/36)114
- (13/36)115
- (14/36)116
- (15/36) D-TERMINAL117
- (16/36) DIGITAL_UNIT 1/20 HDMI SW118
- (17/36) DIGITAL_UNIT 2/20 HDMI RX119
- (18/36) DIGITAL_UNIT 3/20 GUI120
- (19/36) DIGITAL_UNIT 4/20 HDMI TX121
- (20/36) DIGITAL_UNIT 5/20 V ENCODER122
- (21/36) DIGITAL_UNIT 6/20 I/P123
- (22/36) DIGITAL_UNIT 7/20 I/P DDR124
- (23/36) DIGITAL_UNIT 8/20 DIR125
- (24/36) DIGITAL_UNIT 9/20 AUDIO PLD126
- (25/36) DIGITAL_UNIT 10/20 DSP127
- (26/36) DIGITAL_UNIT 11/20 MAIN DAC128
- (27/36) DIGITAL_UNIT 12/20 ZONE DAC129
- (28/36) DIGITAL_UNIT 13/20 DM860130
- (29/36) DIGITAL_UNIT 14/20 ETHERNET PHY131
- (30/36) DIGITAL_UNIT 15/20 USB TCC8600132
- (31/36) DIGITAL_UNIT 16/20 D.SUPPLY/RESET133
- (32/36) DIGITAL_UNIT 17/20 DIGITAL CONNECT134
- (33/36) DIGITAL_UNIT 18/20 CPU_LEVEL_CHG135
- (34/36) DIGITAL_UNIT 19/20 MAIN CPU136
- (35/36) DIGITAL_UNIT 20/20137
- (36/36) FRONT138
WIRING DIAGRAM139
EXPLODED VIEW140
PARTS LIST OF EXPLODED VIEW141
PACKING VIEW145
PARTS LIST OF PACKING & ACCESSORIES145
SEMICONDUCTORS147
- 1. IC's147
- 2. FL DISPLAY178
PARTS LIST OF P.C.B. UNIT180
- PCB 7CH_AMP ASS'Y180
- PCB SPK ASS'Y185
- PCB REG_CNT ASS'Y188
- PCB FRONT ASS'Y191
- PCB VIDEO ASS'Y194
- PCB AUDIO ASS'Y196
- PCB HDMI ASS'Y199
