47
JIG FOR SERVICING
When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order to DENON Offi cial Service. Distributor in your region if necessary.
Note: When the connection which is wrong in the JIG (EXTENSION UNIT KIT) is done it becomes cause of damage.
8U-110084S :
EXTENSION UNIT KIT

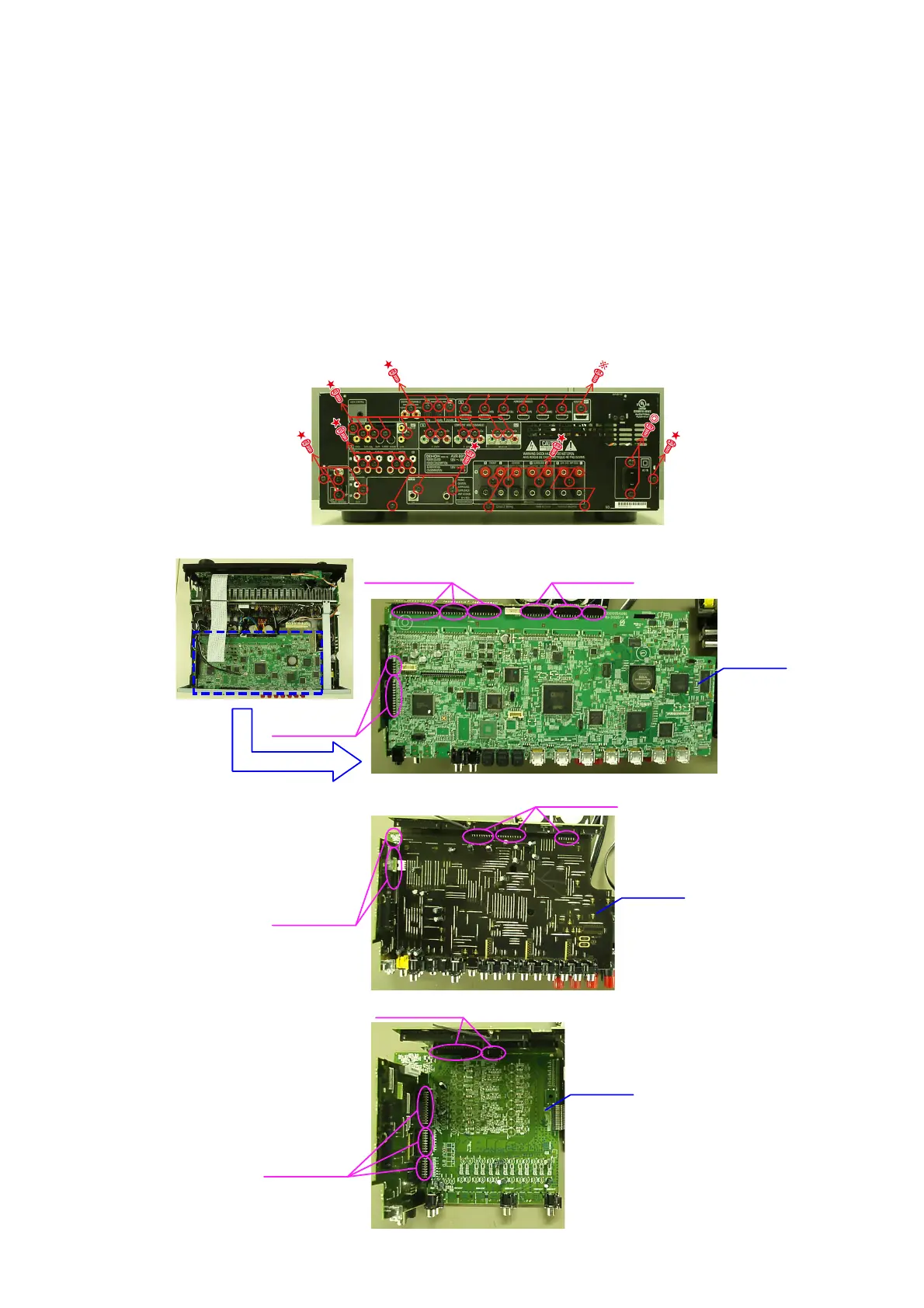

• Connection of PCB HDMI JIG
-Preparation-
8U-110084S : EXTENSION UNIT KIT : 1 Set
s
Insulation sheet (Do not supply it) : 3 sheet
Ground lead (Do not supply it) : 3 pcs
-Procedures-
(1) Remove the screws.
(2) Disconnect the connector board.
PCB HDMI
Board to board
Board to board
Board to board
PCB VIDEO
Board to board
Board to board
PCB INPUT
Board to board
Board to board
To Next Page
