179

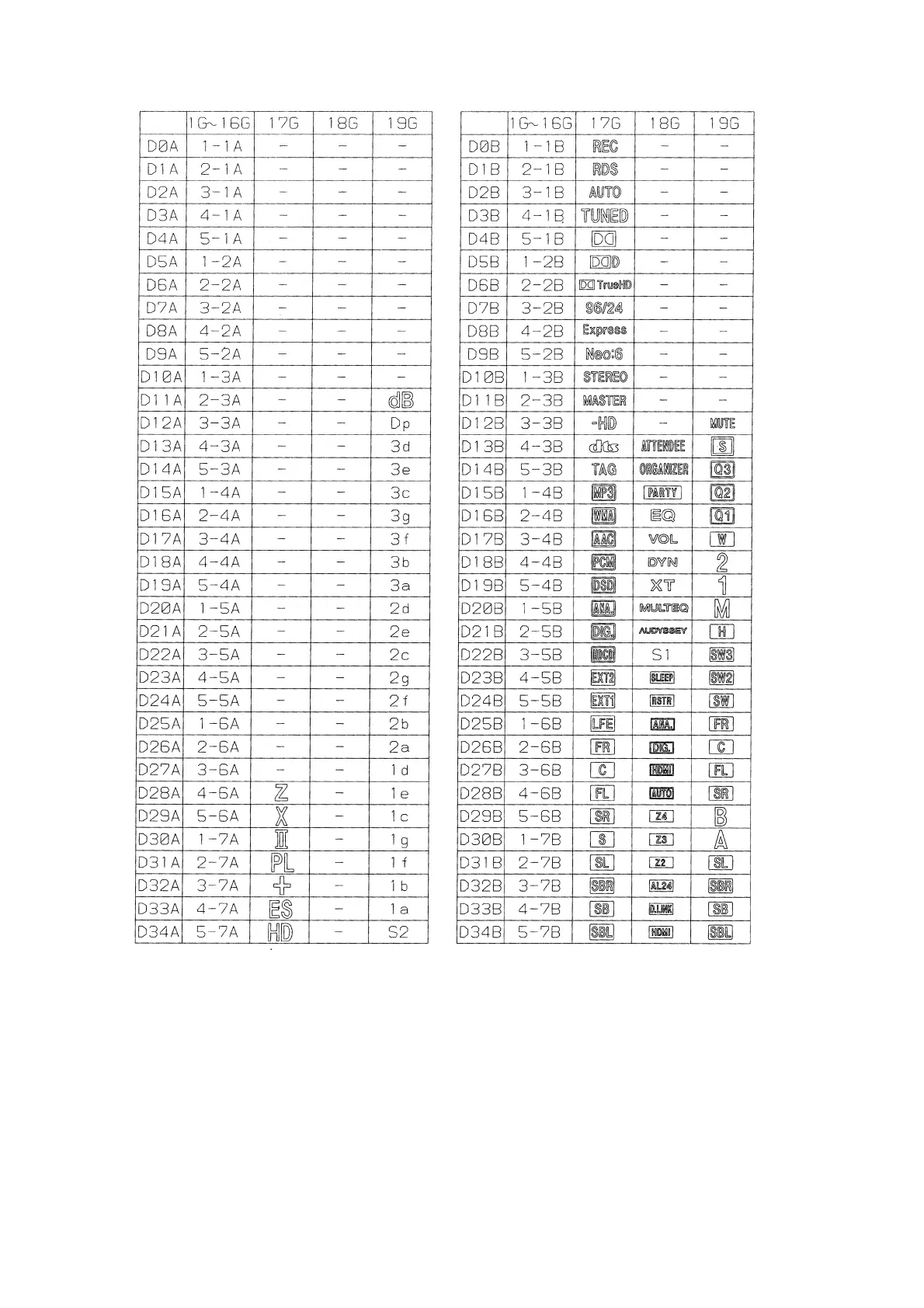

ANODE CONNECTION

Table of Contents

AVR-2311CI/AVR-2311/AVR-8911
SAFETY2
NOTE FOR SCHEMATIC DIAGRAM3
NOTE FOR PARTS LIST3
TECHNICAL SPECIFICATIONS4
DIMENSION5
CAUTION IN SERVICING6
- Initializing AV SURROUND RECEIVER6
- Service Jigs6
DISASSEMBLY7
- 1. FRONT PANEL ASSY8
- 2. HEAT SINK ASSY9
- 3. PCB REG CNT/PCB REG11
- 4. HDMI UNIT ASSY12
- 5. TRANS MAIN14
SPECIAL MODE16
- Special mode setting button16
- 1. μcom/DSP Version display mode17
- 2. Errors checking mode (Displaying the protection history)19
- 3. DIAGNOSTIC MODE (Video/Audio (signal) path confi rmation mode)21
BLOCK DIAGRAM26
JIG FOR SERVICING47
ABOUT REPLACE THE MICROPROCESSOR WITH A NEW ONE50
VERSION UPGRADE PROCEDURE OF FIRMWARE50
SURROUND MODES AND PARAMETERS54
ADJUSTMENT58
TROUBLE SHOOTING59
- 1. POWER59
- 2. Analog video60
- 3. HDMI/DVI.65
- 4. AUDIO76
CLOCK FLOW & WAVE FORM IN DIGITAL BLOCK79
LEVEL DIAGRAM80
PRINTED WIRING BOARDS86
SCHEMATIC DIAGRAMS103
- (1/36) AMP B'D 1/2103
- (2/36) AMP B'D 2/2104
- (3/36) SPK_SMPS 1/2105
- (4/36) SPK_SMPS 2/2106
- (5/36) REG_SIRIUS_COMMON CNT 1/4107
- (6/36) REG_SIRIUS_COMMON CNT 2/4108
- (7/36) REG_SIRIUS_COMMON CNT 3/4109
- (8/36) REG_SIRIUS_COMMON CNT 4/4110
- (9/36) AUDIO111
- (10/36)112
- (11/36)113
- (12/36)114
- (13/36)115
- (14/36)116
- (15/36) D-TERMINAL117
- (16/36) DIGITAL_UNIT 1/20 HDMI SW118
- (17/36) DIGITAL_UNIT 2/20 HDMI RX119
- (18/36) DIGITAL_UNIT 3/20 GUI120
- (19/36) DIGITAL_UNIT 4/20 HDMI TX121
- (20/36) DIGITAL_UNIT 5/20 V ENCODER122
- (21/36) DIGITAL_UNIT 6/20 I/P123
- (22/36) DIGITAL_UNIT 7/20 I/P DDR124
- (23/36) DIGITAL_UNIT 8/20 DIR125
- (24/36) DIGITAL_UNIT 9/20 AUDIO PLD126
- (25/36) DIGITAL_UNIT 10/20 DSP127
- (26/36) DIGITAL_UNIT 11/20 MAIN DAC128
- (27/36) DIGITAL_UNIT 12/20 ZONE DAC129
- (28/36) DIGITAL_UNIT 13/20 DM860130
- (29/36) DIGITAL_UNIT 14/20 ETHERNET PHY131
- (30/36) DIGITAL_UNIT 15/20 USB TCC8600132
- (31/36) DIGITAL_UNIT 16/20 D.SUPPLY/RESET133
- (32/36) DIGITAL_UNIT 17/20 DIGITAL CONNECT134
- (33/36) DIGITAL_UNIT 18/20 CPU_LEVEL_CHG135
- (34/36) DIGITAL_UNIT 19/20 MAIN CPU136
- (35/36) DIGITAL_UNIT 20/20137
- (36/36) FRONT138
WIRING DIAGRAM139
EXPLODED VIEW140
PARTS LIST OF EXPLODED VIEW141
PACKING VIEW145
PARTS LIST OF PACKING & ACCESSORIES145
SEMICONDUCTORS147
- 1. IC's147
- 2. FL DISPLAY178
PARTS LIST OF P.C.B. UNIT180
- PCB 7CH_AMP ASS'Y180
- PCB SPK ASS'Y185
- PCB REG_CNT ASS'Y188
- PCB FRONT ASS'Y191
- PCB VIDEO ASS'Y194
- PCB AUDIO ASS'Y196
- PCB HDMI ASS'Y199
