49

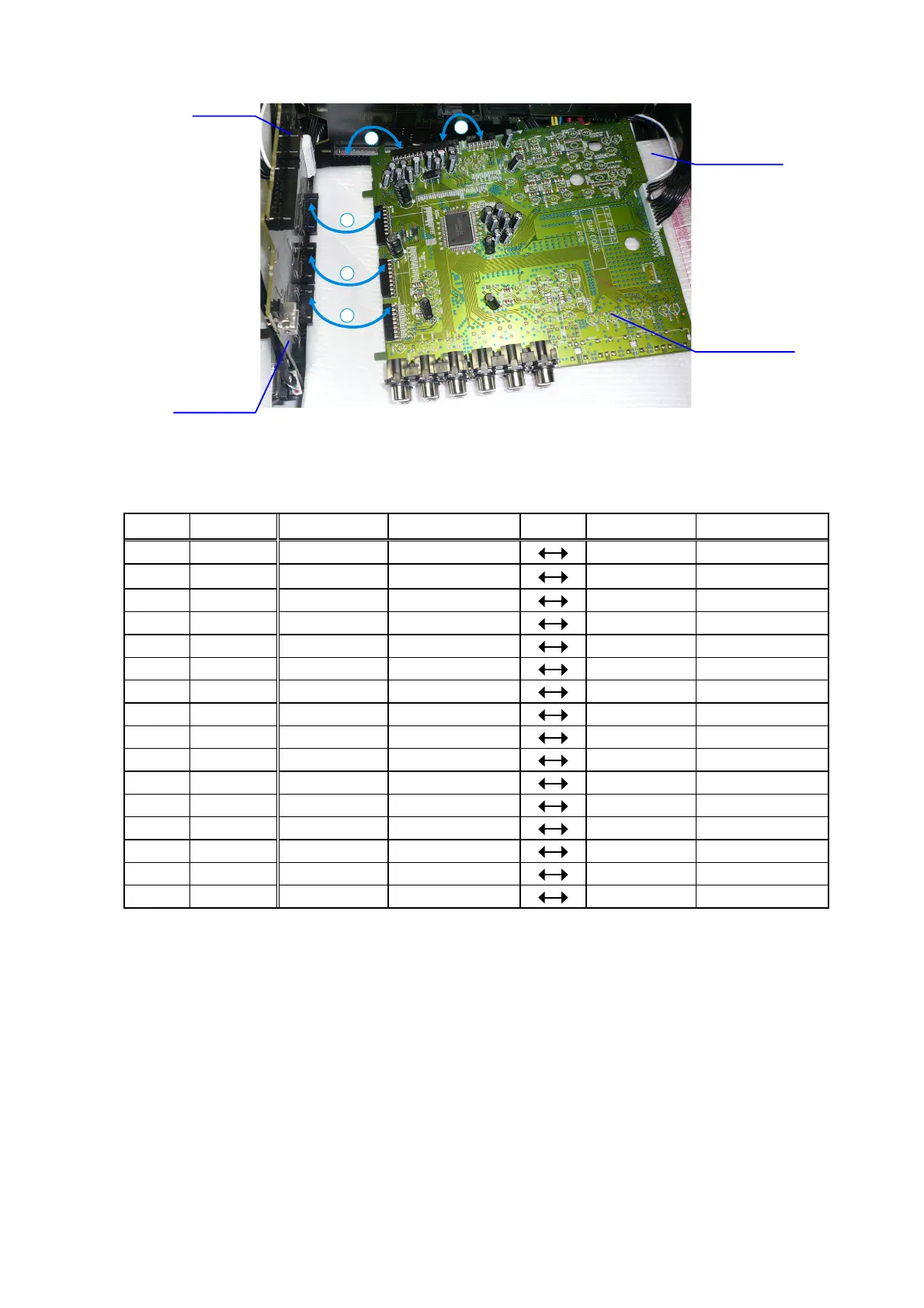

Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
11 pin CP3 SIDE CNT
N4908 HDMI
w
25 pin CP4 SIDE CNT
N4907 HDMI
e
19 pin CP105 FRONT CNT
N4910 HDMI
r
17 pin CP106 FRONT CNT
N4911 HDMI
t
13 pin CP107 FRONT CNT
N4912 HDMI
y
19 pin CP108 FRONT CNT
N4913 HDMI
u
17 pin CP109 FRONT CNT N4914 HDMI
i
33 pin CP110 FRONT CNT
N4916 HDMI
o
19 pin CP111 FRONT CNT
N2001 VIDEO
Q0
17 pin CP112 FRONT CNT N2002 VIDEO
Q11
13 pin CP113 FRONT CNT
N2003 VIDEO
Q2
13 pin CP114 FRONT CNT
CX3001 INPUT
Q3
33 pin CP115 FRONT CNT CN3000 INPUT
Q4
19 pin CP6 SIDE CNT
CX3000 INPUT
Q5
17 pin CP7 SIDE CNT
CX3002 INPUT
Q6
15 pin CP8 SIDE CNT CX3003 INPUT
14
15
16
13
12
PCB HDMI
PCB SIDE CNT
Insulation sheet
PCB INPUT
To Next Page
