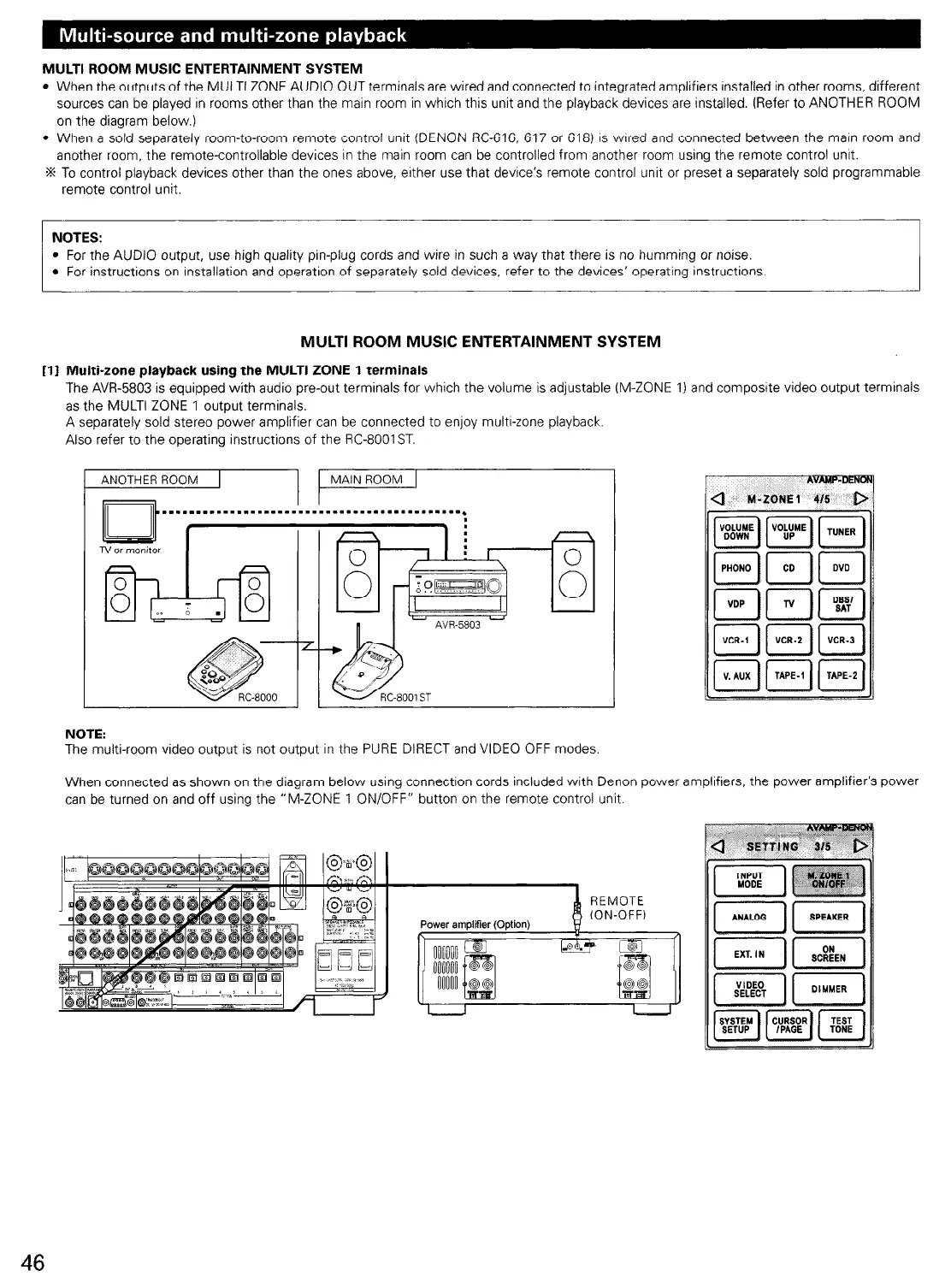

MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
l When the outputs of the MULTI ZONE AUDIO OUT terminals are wired and connected to integrated amplifiers installed in other rooms, different
sources can be played in rooms other than the main room in which this unit and the playback devices are installed. (Refer to ANOTHER ROOM
on the diagram below.)
l When a sold separately room-to-room remote control unit (DENON RC-616, 617 or 618) is wtred and connected between the main room and
another room, the remote-controllable devices In the main room can be controlled from another room using the remote control unit.
X To control playback devices other than the ones above, either use that device’s remote control unit or preset a separately sold programmable
remote control unit.
NOTES:
l For the AUDIO output, use high quality pin-plug cords and wire in such a way that there is no hummlng or noise.
l For instructions on installation and operation of separately sold devices, refer to the devices’ operating instructions.
MULTI ROOM MUSIC ENTERTAINMENT SYSTEM
111 Multi-zone playback using the MULTI ZONE 1 terminals
The AVR-5803 is equipped with audio pre-out terminals for which the volume is adjustable (M-ZONE 1) and composite video output terminals
as the MULTI ZONE 1 output terminals.
A separately sold stereo power amplifier can be connected to enjoy multi-zone playback
Also refer to the operating instructions of the RC-8001 ST.
ANOTHER ROOM 1
MAIN ROOM
TV or monitor
I I
n
AVR-5803
01 ST
NOTE:
The multi-room video output is not output in the PURE DIRECT and VIDEO OFF modes
When connected as shown on the diagram below using connection cords included with Denon power amplifiers, the power amplifier’s power
can be turned on and off using the “M-ZONE 1 ON/OFF” button on the remote control unit
