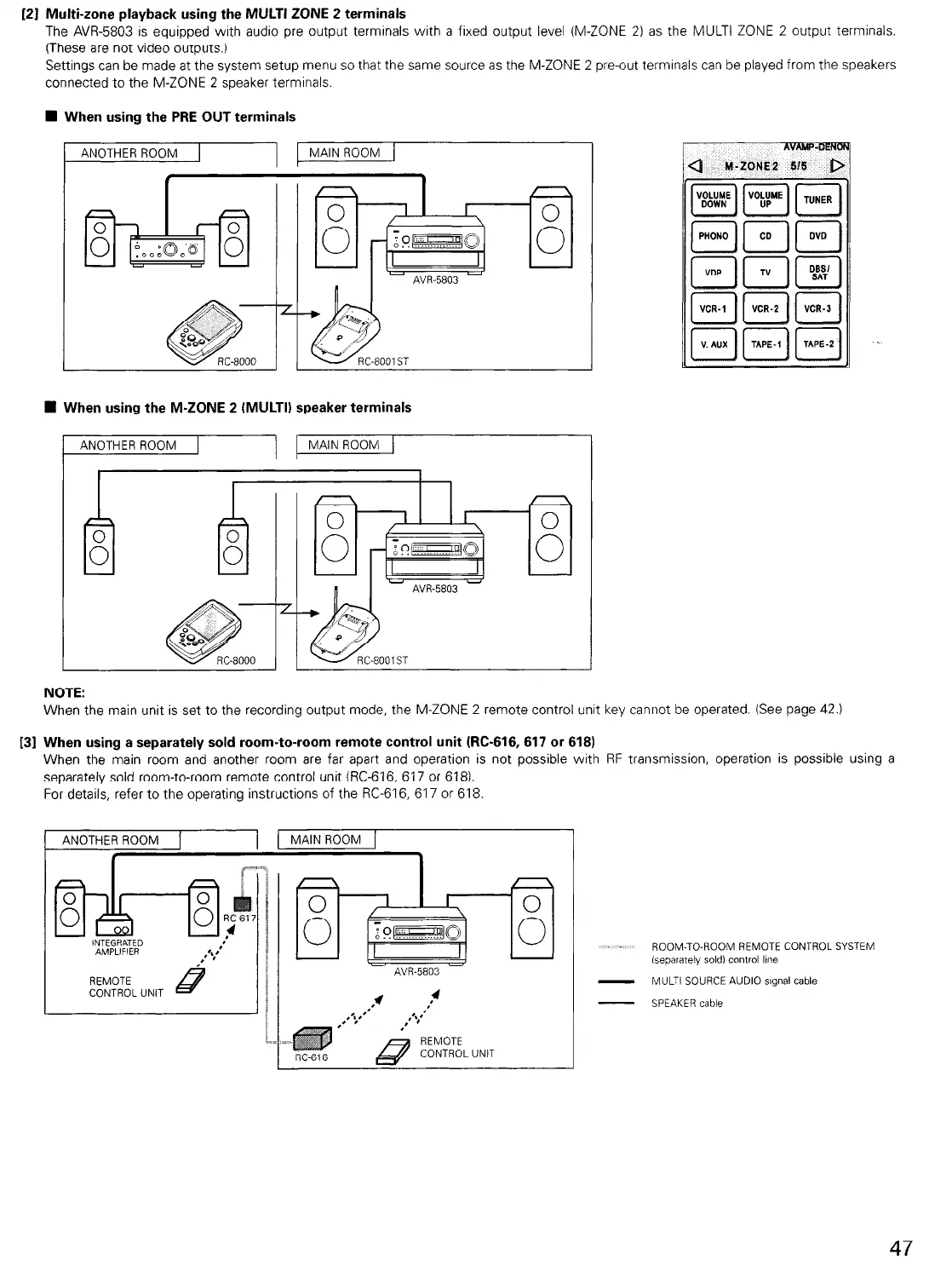

[2] Multi-zone playback using the MULTI ZONE 2 terminals
The AVR-5803 IS equipped with audio pre output terminals with a fixed output level (M-ZONE 2) as the MULTI ZONE 2 output terminals.
(These are not video outputs.)
Settings can be made at the system setup menu so that the same source as the M-ZONE 2 pre-out terminals can be played from the speakers
connected to the M-ZONE 2 speaker terminals
H When using the PRE OUT terminals
1 MAIN ROOM 1 ;NI.**XRrl
I
,
n
When using the M-ZONE 2 (MULTI) speaker terminals
ANOTHER ROOM 1
MAIN ROOM 1
0
TAPE-2
NOTE:
When the main unit is set to the recording output mode, the M-ZONE 2 remote control unit key cannot be operated. (See page 42.)
[3] When using a separately sold room-to-room remote control unit (RC-616, 617 or 618)
When the main room and another room are far apart and operation is not possible with RF transmission, operation is possible using a
separately sold room-to-room remote control unit (RC-616, 617 or 618).
For details, refer to the operating instructions of the K-61 6, 617 or 618
ANOTHER ROOM 1
( MAIN ROOM 1
r
I
1NTEGR*TEo
AMPLWER
.’
,,‘I,’
,
REMOTE
CONTROL UNIT
- *
ROOM-TO-ROOM REMOTE CONTROL SYSTEM
iseparately soldl Cnlltrol lhle
- MULTI SOURCE AUDIO s~ynal cable
- SPEAKER cable
47
